Variable Frequency Drives for AC Electric Motors
Variable Frequency Drives (VFD's) are the only choice when you need to control an AC electric motor. By adjusting the motors Frequency (or hertz) and Voltage the VFD can control the speed (RPM) of the AC motor. VFD's provide five major benefits: Energy Savings, Increased Production, Reduced Production Costs, Extended Life, and Reduced Maintenance Costs. Our affordable variable frequency drives are the ideal solution for crane control upgrades or overhead crane modernizations.

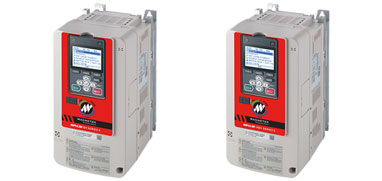

IMPULSE•G+ and VG+ Series 5
Upgrade your crane operations with the advanced Magnetek IMPULSE•G+ and VG+ Series 5 Variable Frequency Drives (VFDs). Designed to deliver superior performance and reliability, these VFDs offer enhanced safety features, precise motor control, and improved energy efficiency. The IMPULSE•G+ Series 5 is perfect for general duty applications, while the IMPULSE•VG+ Series 5 provides advanced capabilities for more demanding environments. Both models feature easy-to-use interfaces and robust construction, ensuring seamless integration and optimal functionality for your overhead crane systems. Contact our sales team to learn more!
IMPULSE•G+ Mini
The IMPULSE•G+ Mini VFD is the #1 solution for low horsepower (HP) AC motors in the material handling industry. The Magnetek G+ Mini adjustable variable frequency drive is also our most cost-effective, and reliable crane control.
| G+ Mini |
| Model No. |
Full Load AMPs |
Motor HP |
Voltage |
| 2001-G+M |
1.6 FLA |
1/4 HP |
230 VAC |
| 2003-G+M |
3 FLA |
1/2 HP |
230 VAC |
| 2005-G+M |
5 FLA |
1 HP |
230 VAC |
| 2008-G+M |
8 FLA |
2 HP |
230 VAC |
| 2011-G+M |
11 FLA |
3 HP |
230 VAC |
| 2017-G+M |
17.5 FLA |
5 HP |
230 VAC |
| 2025-G+M |
25 FLA |
7.5 HP |
230 VAC |
| 2033-G+M |
33 FLA |
10 HP |
230 VAC |
| 2047-G+M |
47 FLA |
15 HP |
230 VAC |
| 2060-G+M |
60 FLA |
20 HP |
230 VAC |
| 4001-G+M |
1.2 FLA |
1/2 HP |
460 VAC |
| 4002-G+M |
1.8 FLA |
3/4 HP |
460 VAC |
| 4003-G+M |
3.4 FLA |
1 & 2 HP |
460 VAC |
| 4004-G+M |
4.8 FLA |
3 HP |
460 VAC |
| 4009-G+M |
9.2 FLA |
5 HP |
460 VAC |
| 4014-G+M |
14.8 FLA |
7.5 HP |
460 VAC |
| 4018-G+M |
18 FLA |
10 HP |
460 VAC |
| 4024-G+M |
24 FLA |
15 HP |
460 VAC |
| 4031-G+M |
31 FLA |
20 HP |
460 VAC |
IMPULSE•G+ and VG+ Series 4
For Class C, D, E and F cranes the G+ and VG+ Series 4 adjustable frequency crane controls are the ideal choice. These variable speed drives have power modules which can withstand four times more thermal cycles than any other overhead material handling VFD's. We are so confident in the durability, safety and reliability of the IMPULSE•G+ and VG+ Series 4 drives they are backed by an industry-leading three-year manufacturers' warranty.
| G+ Series 4 VFD's, 230 VAC |
| Model No. |
Full Load AMPs |
Motor HP |
Voltage |
| 2003-G+S4 |
3.2 FLA |
0.75 HP |
230 VAC |
| 2005-G+S4 |
5 FLA |
1 HP |
230 VAC |
| 2007-G+S4 |
6.9 FLA |
2 HP |
230 VAC |
| 2008-G+S4 |
8 FLA |
2 HP |
230 VAC |
| 2011-G+S4 |
11 FLA |
3 HP |
230 VAC |
| 2014-G+S4 |
14 FLA |
3 HP |
230 VAC |
| 2017-G+S4 |
17.5 FLA |
5 HP |
230 VAC |
| 2025-G+S4 |
25 FLA |
7.5 HP |
230 VAC |
| 2033-G+S4 |
33 FLA |
10 HP |
230 VAC |
| 2047-G+S4 |
47 FLA |
15 HP |
230 VAC |
| 2060-G+S4 |
60 FLA |
20 HP |
230 VAC |
| 2075-G+S4 |
75 FLA |
25 HP |
230 VAC |
| 2085-G+S4 |
85 FLA |
30 HP |
230 VAC |
| 2115-G+S4 |
115 FLA |
40 HP |
230 VAC |
| 2145-G+S4 |
145 FLA |
50 HP |
230 VAC |
| 2180-G+S4 |
180 FLA |
60 HP |
230 VAC |
| 2215-G+S4 |
215 FLA |
75 HP |
230 VAC |
| 2283-G+S4 |
283 FLA |
100 HP |
230 VAC |
| 2346-G+S4 |
346 FLA |
125 HP |
230 VAC |
| 2415-G+S4 |
415 FLA |
150 HP |
230 VAC |
| G+ Series 4 VFD's, 460 VAC |
| Model No. |
Full Load AMPs |
Motor HP |
Voltage |
| 4001-G+S4 |
1.8 FLA |
0.75 HP |
460 VAC |
| 4003-G+S4 |
3.4 FLA |
1 HP |
460 VAC |
| 4004-G+S4 |
4.8 FLA |
2 HP |
460 VAC |
| 4005-G+S4 |
5.5 FLA |
3 HP |
460 VAC |
| 4007-G+S4 |
7.2 FLA |
5 HP |
460 VAC |
| 4009-G+S4 |
9.2 FLA |
5 HP |
460 VAC |
| 4014-G+S4 |
14.8 FLA |
7.5 HP |
460 VAC |
| 4018-G+S4 |
18 FLA |
10 HP |
460 VAC |
| 4024-G+S4 |
24 FLA |
15 HP |
460 VAC |
| 4031-G+S4 |
31 FLA |
20 HP |
460 VAC |
| 4039-G+S4 |
39 FLA |
25 HP |
460 VAC |
| 4045-G+S4 |
45 FLA |
30 HP |
460 VAC |
| 4060-G+S4 |
60 FLA |
40 HP |
460 VAC |
| 4075-G+S4 |
75 FLA |
50 HP |
460 VAC |
| 4091-G+S4 |
91 FLA |
60 HP |
460 VAC |
| 4112-G+S4 |
112 FLA |
75 HP |
460 VAC |
| 4150-G+S4 |
150 FLA |
100 HP |
460 VAC |
| 4180-G+S4 |
180 FLA |
125 HP |
460 VAC |
| 4216-G+S4 |
216 FLA |
150 HP |
460 VAC |
| 4260-G+S4 |
260 FLA |
200 HP |
460 VAC |
| 4304-G+S4 |
304 FLA |
250 HP |
460 VAC |
| 4370-G+S4 |
370 FLA |
300 HP |
460 VAC |
| 4450-G+S4 |
450 FLA |
350 HP |
460 VAC |
| 4605-G+S4 |
605 FLA |
500 HP |
460 VAC |
| 4810-G+S4 |
810 FLA |
650 HP |
460 VAC |
| 41090-G+S4 |
1090 FLA |
900 HP |
460 VAC |
| G+ Series 4 VFD's, 575 VAC |
| Model No. |
Full Load AMPs |
Motor HP |
Voltage |
| 5001-G+S4 |
1.7 FLA |
1 HP |
575 VAC |
| 5003-G+S4 |
3.5 FLA |
2 HP |
575 VAC |
| 5004-G+S4 |
4.1 FLA |
3 HP |
575 VAC |
| 5006-G+S4 |
6.3 FLA |
5 HP |
575 VAC |
| 5009-G+S4 |
9.8 FLA |
7.5 HP |
575 VAC |
| 5012-G+S4 |
12.5 FLA |
10 HP |
575 VAC |
| 5017-G+S4 |
17 FLA |
15 HP |
575 VAC |
| 5022-G+S4 |
22 FLA |
20 HP |
575 VAC |
| 5027-G+S4 |
27 FLA |
25 HP |
575 VAC |
| 5032-G+S4 |
32 FLA |
30 HP |
575 VAC |
| 5041-G+S4 |
41 FLA |
40 HP |
575 VAC |
| 5052-G+S4 |
52 FLA |
50 HP |
575 VAC |
| 5062-G+S4 |
62 FLA |
60 HP |
575 VAC |
| 5077-G+S4 |
77 FLA |
75 HP |
575 VAC |
| 5099-G+S4 |
99 FLA |
100 HP |
575 VAC |
| 5130-G+S4 |
130 FLA |
125 HP |
575 VAC |
| 5172-G+S4 |
172 FLA |
150 HP |
575 VAC |
| 5200-G+S4 |
200 FLA |
200 HP |
575 VAC |
| VG+ Series 4 VFD's, 230 VAC |
| Model No. |
Full Load AMPs |
Motor HP |
Voltage |
| 2003-VG+S4 |
3.2 FLA |
0.75 HP |
230 VAC |
| 2005-VG+S4 |
5 FLA |
1 HP |
230 VAC |
| 2007-VG+S4 |
6.9 FLA |
2 HP |
230 VAC |
| 2008-VG+S4 |
8 FLA |
2 HP |
230 VAC |
| 2011-VG+S4 |
11 FLA |
3 HP |
230 VAC |
| 2014-VG+S4 |
14 FLA |
3 HP |
230 VAC |
| 2017-VG+S4 |
17.5 FLA |
5 HP |
230 VAC |
| 2025-VG+S4 |
25 FLA |
7.5 HP |
230 VAC |
| 2033-VG+S4 |
33 FLA |
10 HP |
230 VAC |
| 2047-VG+S4 |
47 FLA |
15 HP |
230 VAC |
| 2060-VG+S4 |
60 FLA |
20 HP |
230 VAC |
| 2075-VG+S4 |
75 FLA |
25 HP |
230 VAC |
| 2085-VG+S4 |
85 FLA |
30 HP |
230 VAC |
| 2115-VG+S4 |
115 FLA |
40 HP |
230 VAC |
| 2145-VG+S4 |
145 FLA |
50 HP |
230 VAC |
| 2180-VG+S4 |
180 FLA |
60 HP |
230 VAC |
| 2215-VG+S4 |
215 FLA |
75 HP |
230 VAC |
| 2283-VG+S4 |
283 FLA |
100 HP |
230 VAC |
| 2346-VG+S4 |
346 FLA |
125 HP |
230 VAC |
| 2415-VG+S4 |
415 FLA |
150 HP |
230 VAC |
| VG+ Series 4 VFD's, 460 VAC |
| Model No. |
Full Load AMPs |
Motor HP |
Voltage |
| 4001-VG+S4 |
1.8 FLA |
0.75 HP |
460 VAC |
| 4003-VG+S4 |
3.4 FLA |
1 HP |
460 VAC |
| 4004-VG+S4 |
4.8 FLA |
2 HP |
460 VAC |
| 4005-VG+S4 |
5.5 FLA |
3 HP |
460 VAC |
| 4007-VG+S4 |
7.2 FLA |
5 HP |
460 VAC |
| 4009-VG+S4 |
9.2 FLA |
5 HP |
460 VAC |
| 4014-VG+S4 |
14.8 FLA |
7.5 HP |
460 VAC |
| 4018-VG+S4 |
18 FLA |
10 HP |
460 VAC |
| 4024-VG+S4 |
24 FLA |
15 HP |
460 VAC |
| 4031-VG+S4 |
31 FLA |
20 HP |
460 VAC |
| 4039-VG+S4 |
39 FLA |
25 HP |
460 VAC |
| 4045-VG+S4 |
45 FLA |
30 HP |
460 VAC |
| 4060-VG+S4 |
60 FLA |
40 HP |
460 VAC |
| 4075-VG+S4 |
75 FLA |
50 HP |
460 VAC |
| 4091-VG+S4 |
91 FLA |
60 HP |
460 VAC |
| 4112-VG+S4 |
112 FLA |
75 HP |
460 VAC |
| 4150-VG+S4 |
150 FLA |
100 HP |
460 VAC |
| 4180-VG+S4 |
180 FLA |
125 HP |
460 VAC |
| 4216-VG+S4 |
216 FLA |
150 HP |
460 VAC |
| 4260-VG+S4 |
260 FLA |
200 HP |
460 VAC |
| 4304-VG+S4 |
304 FLA |
250 HP |
460 VAC |
| 4370-VG+S4 |
370 FLA |
300 HP |
460 VAC |
| 4450-VG+S4 |
450 FLA |
350 HP |
460 VAC |
| 4605-VG+S4 |
605 FLA |
500 HP |
460 VAC |
| 4810-VG+S4 |
810 FLA |
650 HP |
460 VAC |
| 41090-VG+S4 |
1090 FLA |
900 HP |
460 VAC |
| VG+ Series 4 VFD's, 575 VAC |
| Model No. |
Full Load AMPs |
Motor HP |
Voltage |
| 5001-VG+S4 |
1.7 FLA |
1 HP |
575 VAC |
| 5003-VG+S4 |
3.5 FLA |
2 HP |
575 VAC |
| 5004-VG+S4 |
4.1 FLA |
3 HP |
575 VAC |
| 5006-VG+S4 |
6.3 FLA |
5 HP |
575 VAC |
| 5009-VG+S4 |
9.8 FLA |
7.5 HP |
575 VAC |
| 5012-VG+S4 |
12.5 FLA |
10 HP |
575 VAC |
| 5017-VG+S4 |
17 FLA |
15 HP |
575 VAC |
| 5022-VG+S4 |
22 FLA |
20 HP |
575 VAC |
| 5027-VG+S4 |
27 FLA |
25 HP |
575 VAC |
| 5032-VG+S4 |
32 FLA |
30 HP |
575 VAC |
| 5041-VG+S4 |
41 FLA |
40 HP |
575 VAC |
| 5052-VG+S4 |
52 FLA |
50 HP |
575 VAC |
| 5062-VG+S4 |
62 FLA |
60 HP |
575 VAC |
| 5077-VG+S4 |
77 FLA |
75 HP |
575 VAC |
| 5099-VG+S4 |
99 FLA |
100 HP |
575 VAC |
| 5130-VG+S4 |
130 FLA |
125 HP |
575 VAC |
| 5172-VG+S4 |
172 FLA |
150 HP |
575 VAC |
| 5200-VG+S4 |
200 FLA |
200 HP |
575 VAC |
Variable Frequency Drive Documents
TSOC distributes variable frequency drives (VFD); serving clients from coast to coast, Canada, Mexico, and especially focused in Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.
