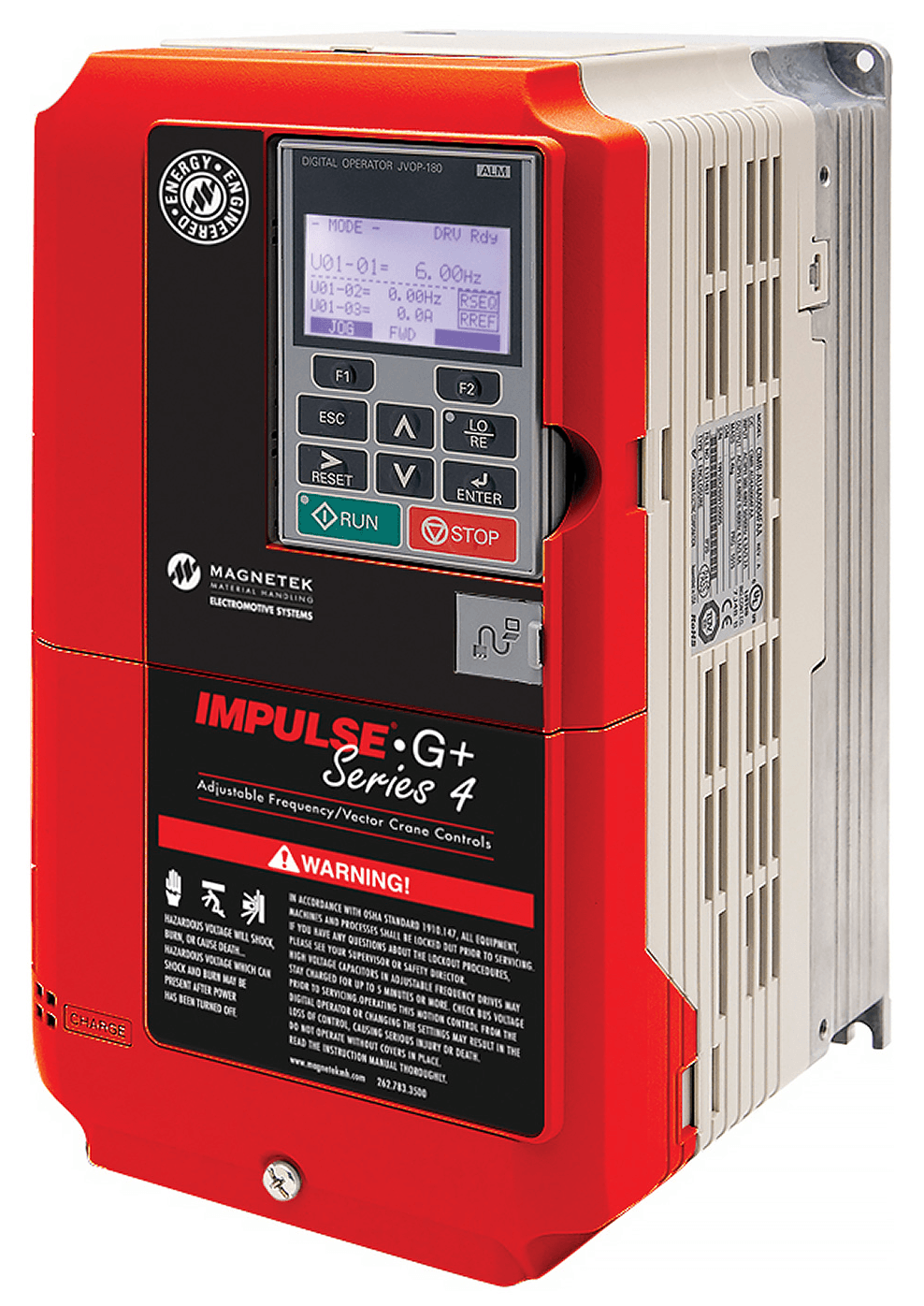

Magnetek IMPULSE G+ Series 4, VFD, 130FLA, 125HP, 575 VAC, Part No. 5130-G+S4

Manufacturer: Magnetek

Availability: In stock

SKU: 5130-G+S4

Manufacturer part number: 5130-G+S4

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Max. Motor Full Load Amps (FLA)

Motor HP (For Reference Only)

Voltage

Control Voltage *

$20,108.00

Qty:

Documents, Drawings, and Manuals

Brochure

Magnetek Impulse G+/VG+ Series 4 VFD Brochure

Manual

Magnetek Impulse G+/VG+ Series 4 VFD Manual

Manual

Magnetek Impulse G+/VG+ Series 4 VFD Interface Card Manual

Products Specifications

Attribute name	Attribute value
Features	Voltage: 575 VAC (3-phase) Max. Motor FLA: 130 Amps (confirm actual motor full load amps) Motor HP: 125 (HP is for reference only and should not be used to size drive) Control Voltage: 120 V (+10%/-15%)/60 Hz (±3 Hz) standard (24 VDC, 24 VAC/60 Hz, 48 VAC/60 Hz, 120 VAC/50 Hz optional) Crane Location: Indoor Only X-Press Programming™ allows programming initial setup within seconds IMPULSE•Link 4.1 — Basic and Wireless Diagnostics Systems (WDS) provide easy parameter management with your PC. Overload capacity: 150% for 60 sec. Crane Duty Classification: A to F Service Fully tested prior to shipment
Certifications	UL, cUL, CSA, RoHs; CE available with filters
Warranty	3-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
