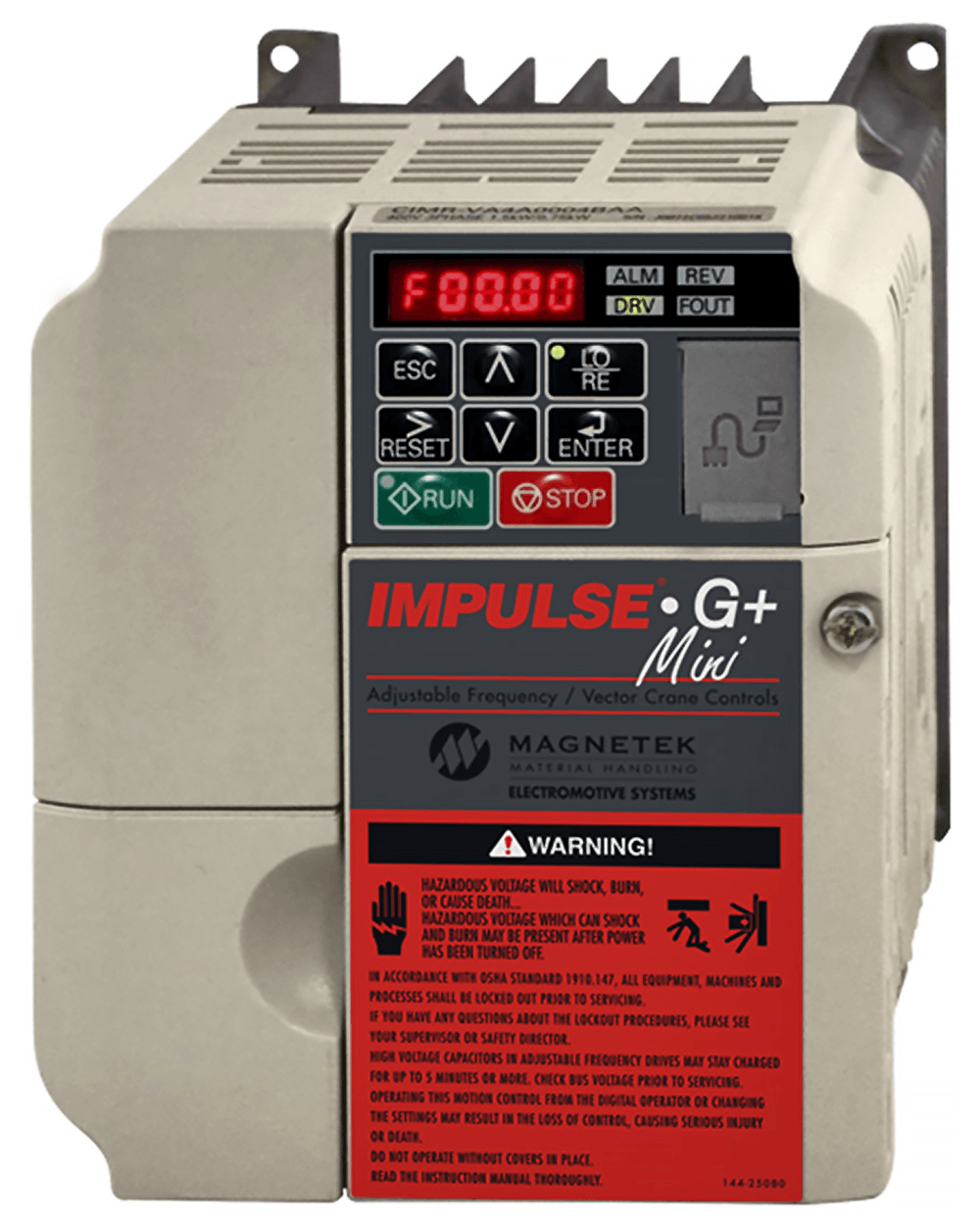

Magnetek IMPULSE G+ Mini VFD, 14.8FLA, 7.5HP, 460VAC, Part No. 4014-G+M

Manufacturer: Magnetek

Availability: In stock

SKU: 4014-G+M

Manufacturer part number: 4014-G+M

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Max. Motor Full Load Amps (FLA)

Motor HP (For Reference Only)

Voltage

Control Voltage *

Dynamic Braking Resistor (Manufacturer Recommended) *

$1,461.00

Qty:

Documents, Drawings, and Manuals

Brochure

Magnetek Impulse G+ Mini VFD Brochure

Guide

Magnetek Impulse G+ Mini Quick Reference Guide

Manual

Magnetek Impulse G+ Mini VFD Manual

Manual

Magnetek Impulse G+ Mini VFD Advanced Manual

Products Specifications

Attribute name	Attribute value
Features	Voltage: 460 VAC (3-phase) Max. Motor FLA: 14.8 Amps (confirm actual motor full load amps) Motor HP: 7.5 (HP is for reference only and should not be used to size drive) Includes 120 Volt control interface card (24VAC or 48VAC optional) Compact Design – small size permits the use of smaller control enclosures, reducing the overall cost of an installation. Factory Default Software Settings- factory preset for basic application programming. CMAA Crane Class A to D Service The easiest VFD to program Fully tested prior to shipment
Certifications	CE, UL, cUL, RoHs, TÜV Listed; UL recognized Electronic Thermal Overload
Warranty	3-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
