CM Ratchet Lever Hoists

CM Lever Chain Hoists are used to pull, lift, and position materials while being compact, portable, and extremely durable. With small and compact models available, these CM come along hoists are perfect for plant maintenance, industrial jobs, and construction sites. TSOC stocks CM lever hoists in 3/4 Ton, 1 Ton, 1-1/2 Ton, 2 Ton, 3 Ton and 6 Ton capacities.

CM Tornado 360° Lever Hoist -OR- Hand Crank

This one-of-a-kind lever hoist can be operated like a conventional ratchet lever -OR- operated using the lever in hand crank mode with the fold out handle! The ergonomic design allows operators work up to 12 times faster with 30% less pull force than conventional ratchet lever hoists.

CM Tornado 360° Hand Crank/Lever Hoist
Model No.	Capacity	Pull Force (Crank | Lever)
TOR075	3/4-ton	38.2 | 47.2 lb/ft
TOR150	1.5-ton	58.5 | 60.7 lb/ft
TOR300	3-ton	79.4 | 90.4 lb/ft
TOR60	6-ton	83.8 | 92.6 lb/ft

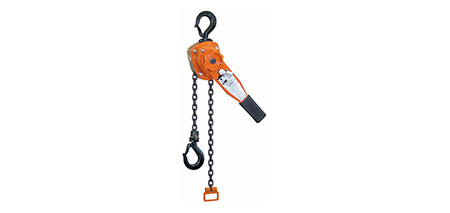

CM Series 653 Ratchet Lever Operated Hoist

The CM Series 653 Ratchet Lever Hoist is designed with a shorter handle to make it the most nimble and easiest to operate hoist available today.

• 3/4 to 6 Ton capacities. Metric rated. 5 year warranty.
• Easily transported and rigged to work in even the smallest work spaces
• Single-handed free chaining feature allows for quick take up and positioning of slack chain
• 360 degree rotating handle allow for full rotation of handle for versatile rigging options even in confined spaces
• Impact resistant stamped steel frame and gear cover withstands rigorous use
• Enclosed Weston type load brake stays clean and dry for positive load positioning

CM 653 Come Along Chain Hoist
Capacity*	Part No.	Wt.
3/4-ton	5310	19 lbs.
1-ton	5328	19 lbs.
1-1/2 ton	5315	31 lbs.
2-ton	5329	31 lbs.
3-ton	5320	51 lbs.
6-ton	5330	78 lbs.
*Metric Rated

CM 640 Series Puller Lever Hoist

The CM Puller Lever Hoist can be used to pull, lift, drag or stretch in heavy-duty construction and industrial applications.

• Capacities ranging from 3/4 Ton-6 Ton Metric rated. Lifetime warranty. Made in the U.S.A.
• Weatherproof aluminum alloy construction and powder coat finish.
• Hoist alloy hardened steel link type load chain for long wear life, strength and flexibility.
• One hand operation and control.
• Forged upper and lower hooks with latches standard.

CM 640 Lever Chain Hoist, No Load Limiter
Capacity*	Part No.	Wt.
3/4-ton	4043-CUSTOM	16 lbs.
1-1/2 ton	4045-CUSTOM	26 lbs.
3-ton	4047-CUSTOM	38 lbs.
6-ton	4050-CUSTOM	73 lbs.
*Metric Rated

CM Hoist Series 602/603 Mini Ratchet Lever Hoist

The CM Series 602 and 603 Mini Ratchet Hoists are designed to be conveniently stored in your toolbox while performing like larger models.

• Series 602 has a 550 pound capacity. Series 603 has a 1,100 pound capacity.
• Standard plated load chain. Weston-type load brake.
• Easily portable with one hand operation makes it ideal for confined conditions.
• Freewheeling feature serves to quickly attach the load.

602 Mini Manual Lever Hoist
Capacity<	Part No.	Lift	Wt.
550 lbs.	0210	5 ft.	6 lbs.
550 lbs.	0214	10 ft.	7 lbs.

603 Mini Manual Lever Hoist
Capacity	Part No.	Lift<	Wt.
1,100 lbs.	0215	5 ft.	7 lbs.
1,100 lbs.	0216	10 ft.	8 lbs.

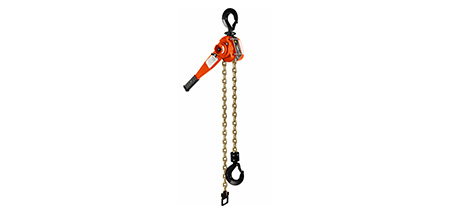

CM Bandit Ratchet Lever Hoist

The CM Bandit Ratchet Lever Hoist is compact and portable with a 360 degree rotating handle making it an extremely versatile hoist.

• Capacities ranging from 3/4 Ton to 6 Ton Metric rated. Lifetime warranty.
• Easily transportable and easy to use in confining spaces
• Full rotation of handle allows for working in tight spaces
• Upper and lower hooks have extra-wide throat openings for easier attachment to pick points
• Enclosed Weston-type load brake stays clean and dry

CM Bandit Come Along Hoist
Capacity*	Part No.	Std. Lift†	Wt.
3/4-ton	BAN07505	5 ft.	14.2 lbs.
3/4-ton	BAN07510	10 ft.	16.5 lbs.
3/4-ton	BAN07515	15 ft.	18.8 lbs.
3/4-ton	BAN07520	20 ft.	21.1 lbs.
1-1/2 ton	BAN15005	5 ft.	21.1 lbs.
1-1/2 ton	BAN15010	10 ft.	24.6 lbs.
1-1/2 ton	BAN15015	15 ft.	28.1 lbs.
1-1/2 ton	BAN15020	20 ft.	31.6 lbs.
3-ton	BAN30005	5 ft.	38.3 lbs.
3-ton	BAN30010	10 ft.	45.7 lbs.
3-ton	BAN30015	15 ft.	53 lbs.
3-ton	BAN30020	20 ft.	60.4 lbs.
6-ton	BAN60005	5 ft.	63.2 lbs.
6-ton	BAN60010	10 ft.	77.9 lbs.
6-ton	BAN60015	15 ft.	92.6 lbs.
6-ton	BAN60020	20 ft.	107.3 lbs.
†Call (314) 869-7200 for custom lifts. *Metric Rated

CM Ratchet Lever Chain Hoist Documents

TSOC distributes CM Ratchet Lever Chain Hoists; serving clients from coast to coast, Canada, Mexico, and especially focused in Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.
