CM Lodestar, Shopstar, and Valustar - CM Electric Chain Hoist

Columbus McKinnon (CM) has over a century of experience designing products such as the Lodestar electric chain hoist to provide solutions for industrial manufacturing and construction. TSOC offers a full line of CM electric chain hoists for small capacity jobs to heavy duty manufacturing. The CM Lodestar hoist is an industry leader with units still in service after 50 years and made in the U.S.A. CM electric chain hoists feature capacities to meet all of your needs including 1/8 Ton, 1/4 Ton, 1/2 Ton, 1 Ton, 2 Ton, 3 Ton, and 5 Ton.

CM Valustar

The Valustar has a more lightweight and compact design making it the perfect choice for general commercial applications. Features include: capacities from 1/4 Ton to 2 Ton, single or three phase models available, H3 duty for single phase; H4 duty for three phase, standard overload protector device, Made in the U.S.A, Lifetime Warranty.

Valustar Hoists
Capacity	Part No.	Part No.	Model
	115-1-60	230/460-3-60
1/4-ton	2401	2402	WB
1/2-ton	2403	2404	WF
1-ton	2405	2406	WH
1-ton	2407	2408	WL
2-ton	2409	2410	WR
1/4-ton	2401B	2402B	WB
1/2-ton	2403B	2404B	WF
1-ton	2405B	2406B	WH
1-ton	2407B	2408B	WL
2-ton	2409B	2410B	WR
1/4-ton	2401C	2402C	WB
1/2-ton	2403C	2404C	WF
1-ton	2405C	2406C	WH
1-ton	2407C	2408C	WL
2-ton	2409C	2410C	WR
Call 314-869-7200 or Email for pricing

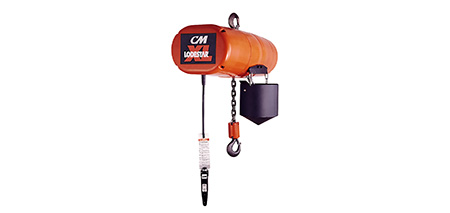

CM Lodestar XL Electric Hoist

The Lodestar XL offers the same dependability of the Lodestar with higher lifting capacities and faster speeds. Features include: capacities up to 7.5 Tons, multiple disc braking system, H4 heavy-duty cycle, standard overload protector, factory tested at 125% of rated capacity, Made in the U.S.A, Lifetime Warranty.

Lodestar XL Hoists
Capacity	Part No.	Lift Spd.
2-ton	5201	18 fpm
2-ton	5204	24 fpm
2-ton	5265	30 fpm
3-ton	5209	9 fpm
3-ton	5212	12 fpm
3-ton	5267	15 fpm
4-ton	5215	9 fpm
4-ton	5218	12 fpm
4-ton	5269	15 fpm
5-ton	5221	6 fpm
5-ton	5224	8 fpm
5-ton	5279	9 fpm
5-ton	5283	12 fpm
5-ton	5285	15 fpm
6-ton	5227	6 fpm
6-ton	5230	8 fpm
6-ton	5287	10 fpm
7-1/2 ton	5289	6 fpm
7-1/2 ton	5291	10 fpm
Call 314-869-7200 or Email for pricing

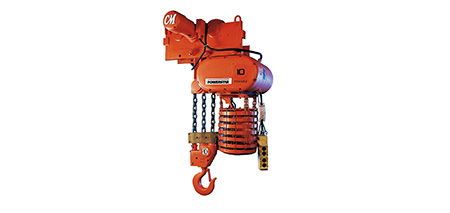

CM Powerstar

The Powerstar was designed to offer an alternative to wire rope hoists for loads from 2 to 20 Tons when space is at a premium. Features include: capacities from 2 Ton to 20 Ton, H-4 or better rated duty cycle, wide range of lifting speeds with motors up to 7.5 h.p, factory tested at 125% of rated capacity, Made in the U.S.A, Lifetime Warranty.

Powerstar Hoists (Single Speed)
Cap. (tons)	Part No.		Lift Spd. (fpm)	MDT Spd. (fpm)
	230-3-60	460-3-60
2	7300	7301	20	65 or 100
2	7001	7002	24	65 or 100
2	7304	7305	32	65 or 100
2	7005	7006	40	65 or 100
2	7308	7309	48	65 or 100
3	7312	7313	20	50
3	7009	7010	24	50
3	7316	7317	32	50
3	7013	7014	40	50
4	7320	7321	10	50
4	7324	7325	12	50
4	7328	7329	16	50
4	7332	7333	20	50
4	7336	7337	24	50
5	7340	7341	10	50
5	7344	7345	12	50
5	7029	7030	16	50
5	7348	7349	20	50
5	7017	7018	24	50
6	7352	7353	10	50
6	7052	7053	12	50
6	7356	7357	16	50
6	7056	7057	20	50
7-1/2	7360	7361	7	35
7-1/2	7364	7365	8	35
7-1/2	7368	7369	11	35
7-1/2	7372	7373	14	35
7-1/2	7376	7377	16	35
9	7380	7381	7	35
9	7384	7385	8	35
9	7388	7389	11	35
9	7392	7393	13	35
10	7396	7397	7	35
10	7400	7401	8	35
10	7404	7405	11	35
10	7408	7409	13	35
12	7412	7413	5	35
12	7416	7417	6	35
12	7420	7421	8	35
12	7424	7425	10	35
15	7428	7429	4	35
15	7432	7433	5	35
15	7436	7437	6	35
15	7440	7441	8	35
Call 314-869-7200 or Email for pricing

Powerstar Hosits (Two Speed)
Cap. (tons)	Part No.		Lift Spd. (fpm)	MDT Spd. (fpm)
	230-3-60	460-3-60
2	7302	7303	20/7	65 or 100
2	7003	7004	24/8	65 or 100
2	7306	7307	32/11	65 or 100
2	7007	7008	40/13	65 or 100
2	7310	7311	48/16	65 or 100
3	7314	7315	20/7	50
3	7011	7012	24/8	50
3	7318	7319	32/11	50
3	7015	7016	40/13	50
4	7322	7323	10/3	50
4	7326	7327	12/4	50
4	7330	7331	16/5	50
4	7334	7335	20/7	50
4	7338	7339	24/8	50
5	7342	7343	10/3	50
5	7346	7347	12/4	50
5	7031	7032	16/5	50
5	7350	7351	20/7	50
5	7019	7020	24/8	50
6	7354	7355	10/3	50
6	7054	7055	12/4	50
6	7358	7359	16/5	50
6	7058	7059	20/7	50
7-1/2	7362	7363	7/2	35
7-1/2	7366	7367	8/3	35
7-1/2	7370	7371	11/4	35
7-1/2	7374	7375	14/5	35
7-1/2	7378	7379	16/5	35
9	7382	7383	7/2	35
9	7386	7387	8/3	35
9	7390	7391	11/4	35
9	7394	7395	13/4	35
10	7398	7399	7/2	35
10	7402	7403	8/3	35
10	7406	7407	11/4	35
10	7410	7411	13/4	35
12	7414	7415	5/2	35
12	7418	7419	6/2	35
12	7422	7423	8/3	35
12	7426	7427	10/3	35
15	7430	7431	4/1	35
15	7434	7435	5/1.5	35
15	7438	7439	6/2	35
15	7442	7443	8/2.5	35
Call 314-869-7200 or Email for pricing

CM Electric Chain Hoist Documents

TSOC distributes CM Electric Chain Hoists; serving clients from coast to coast, Canada, Mexico, and especially focused in Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.
