40 Ton Overhead Crane Examples

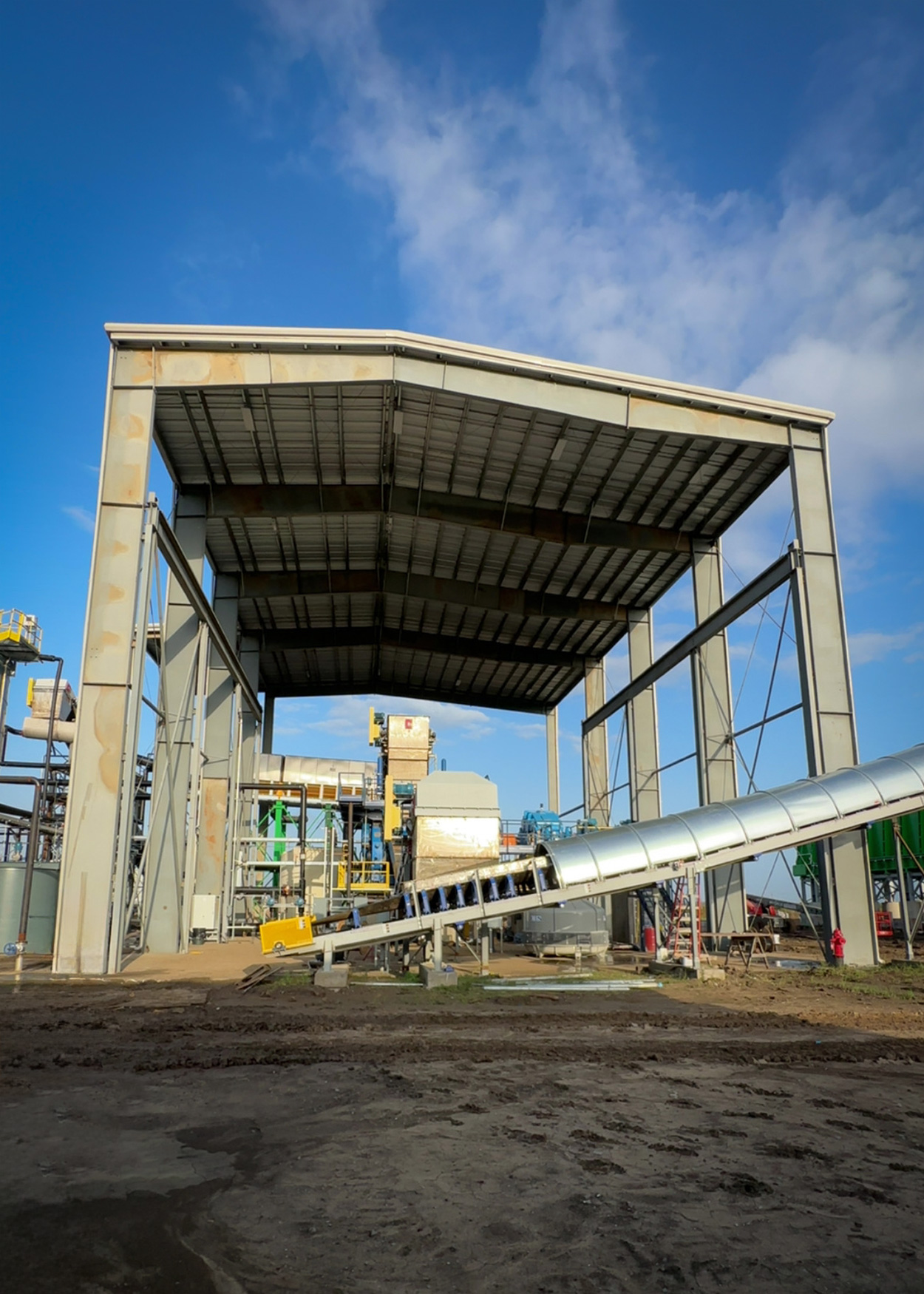

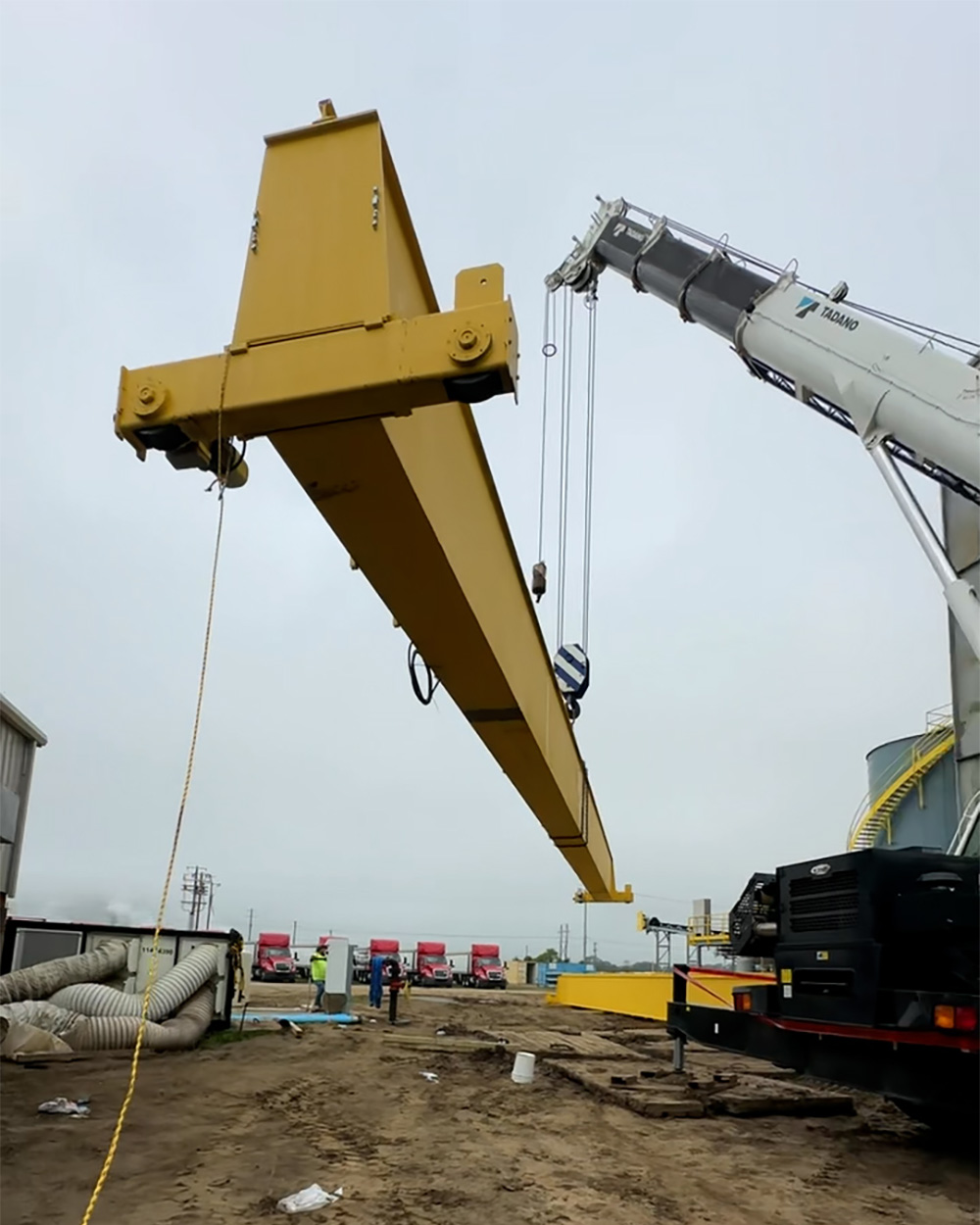

Example 1 - 40 Ton Double Girder Bridge Crane for Bio-Fuel Pellets

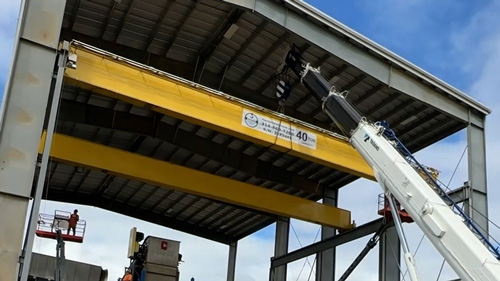

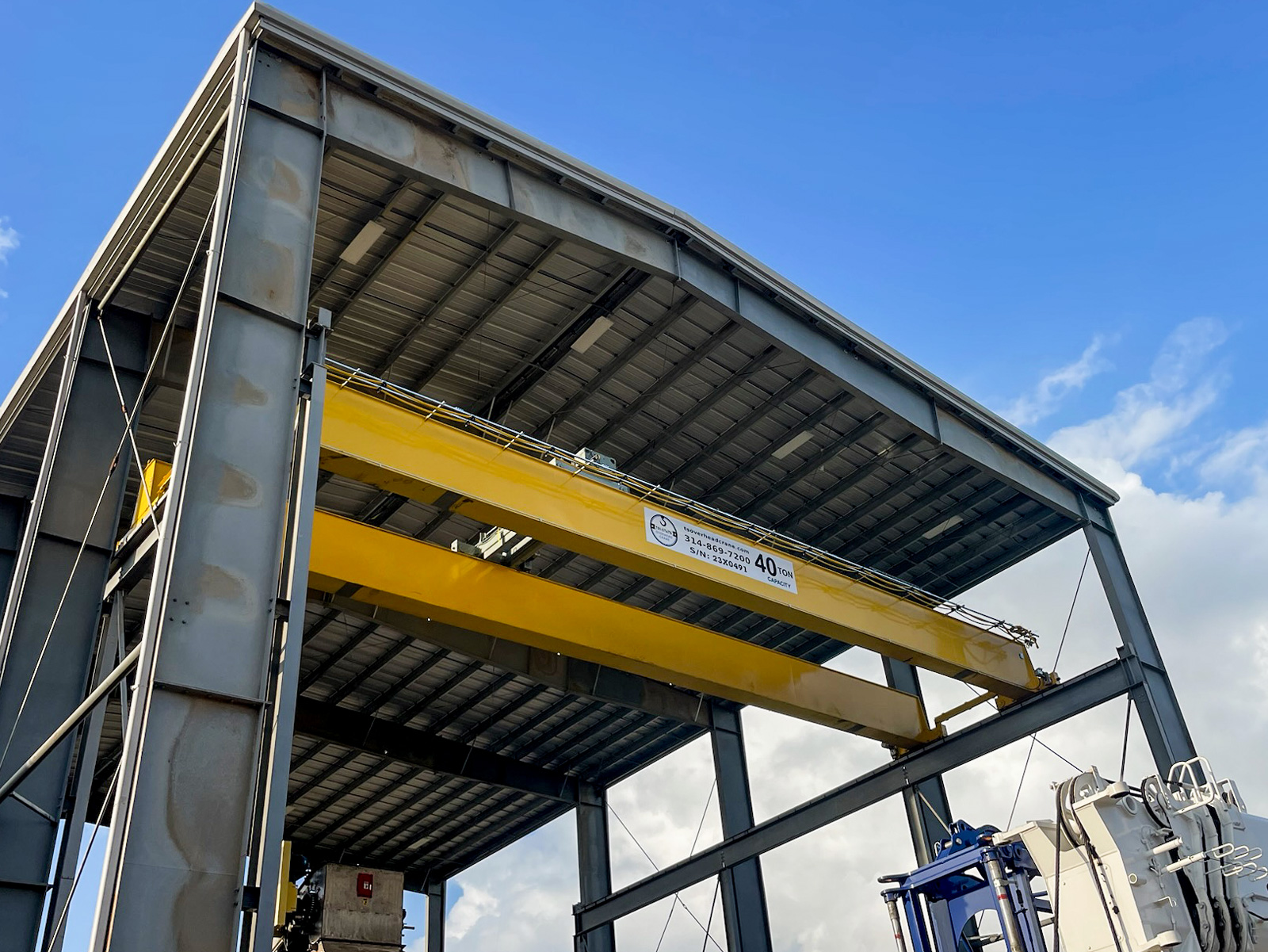

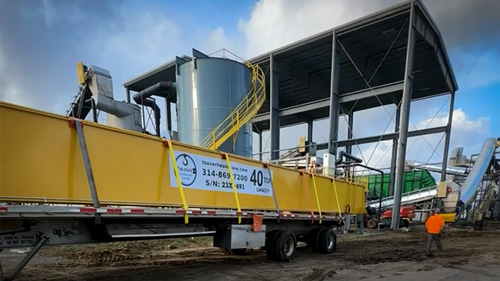

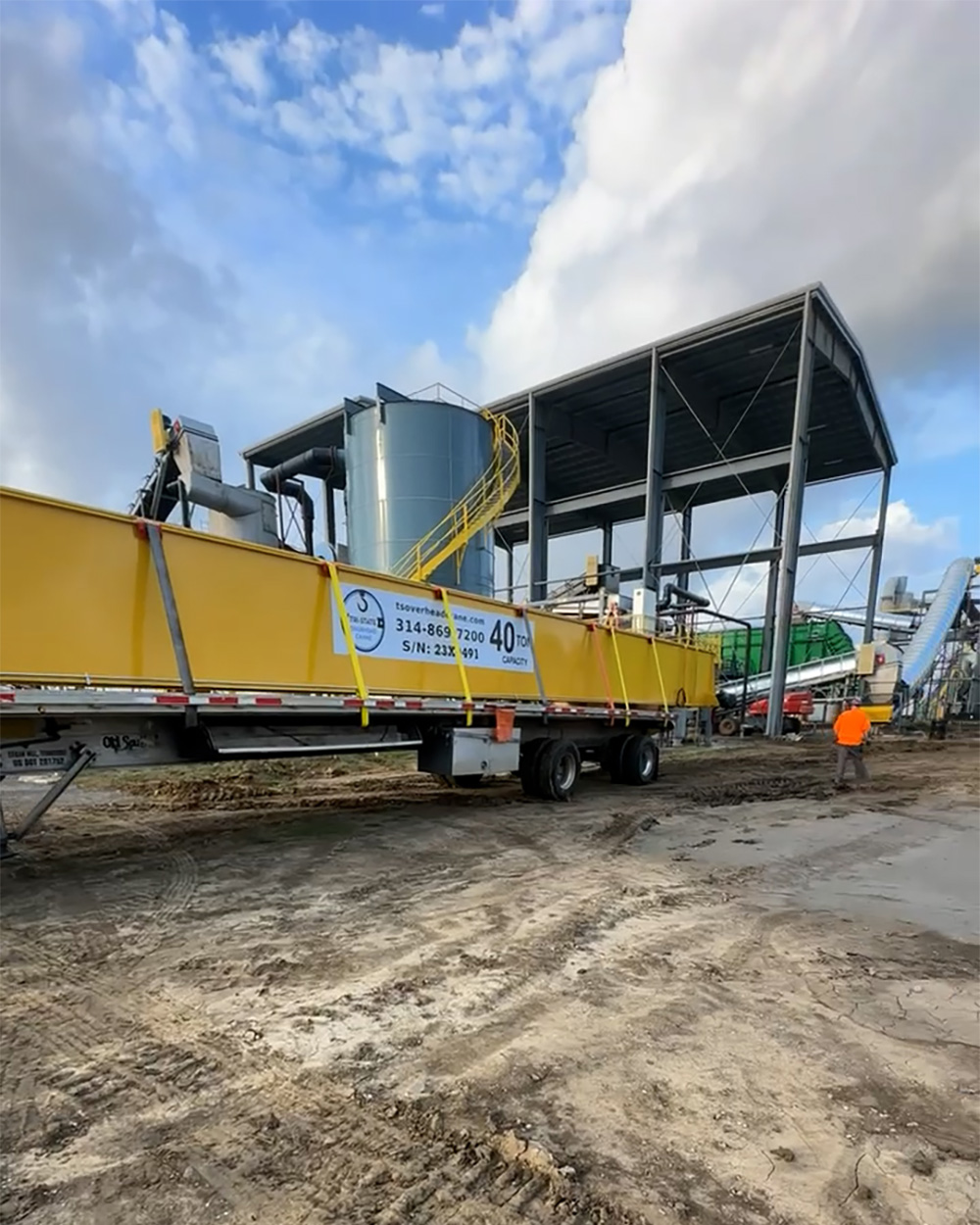

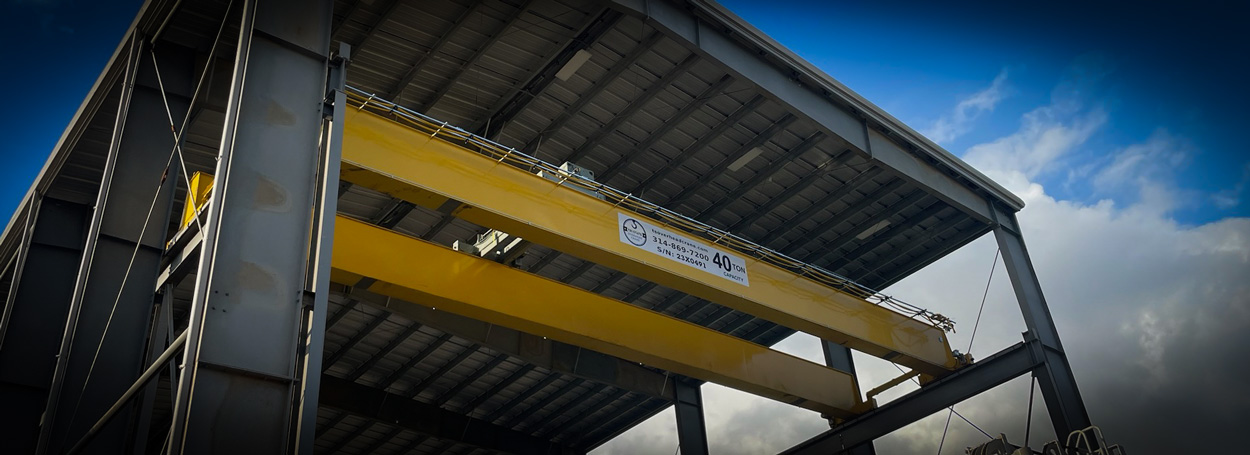

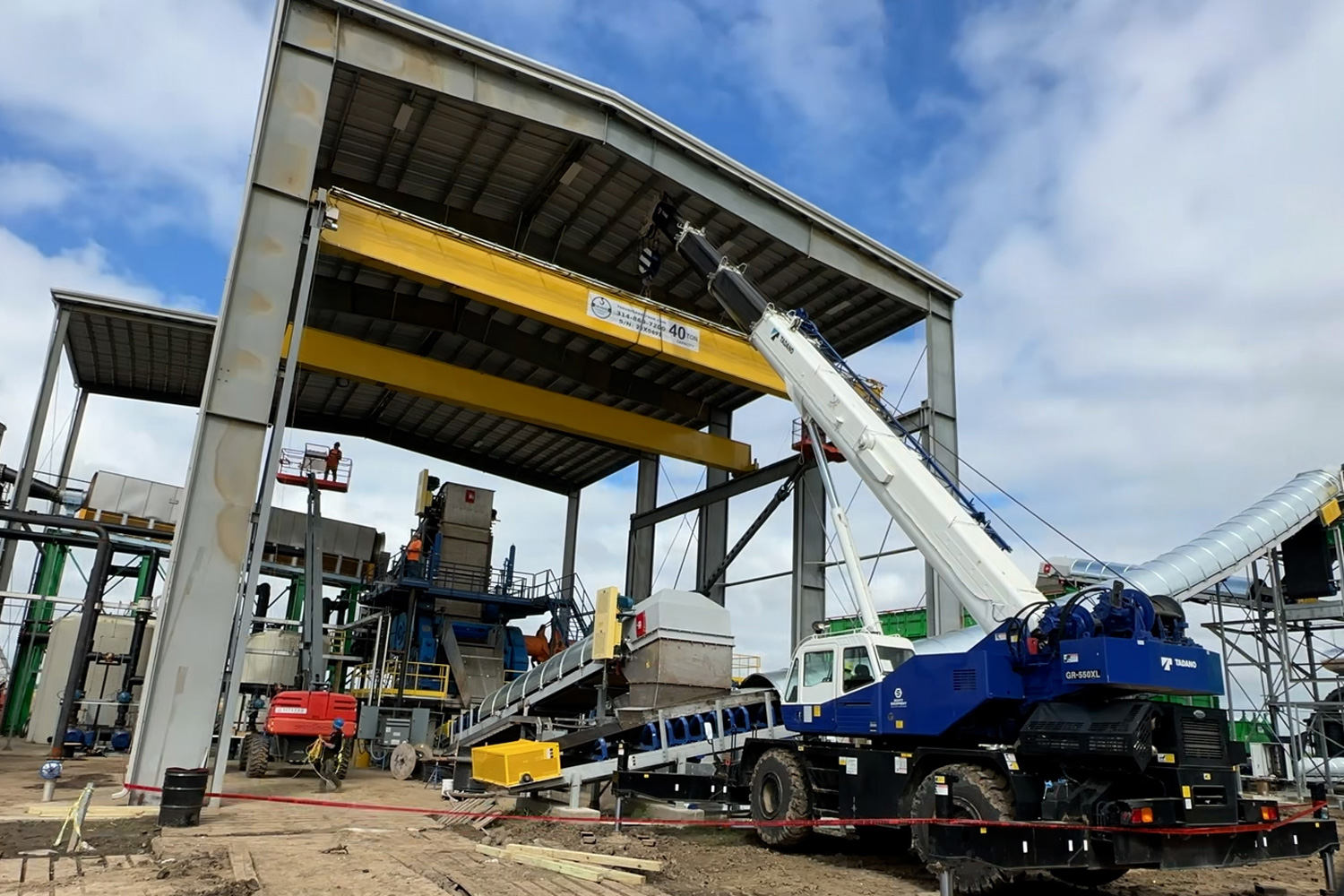

This is a top-running double girder bridge crane we installed for help with production in Bio-Fuel Pellets. Manufacturers include: Detroit Hoist, Duct-O-Wire, In-Motion. Installation was performed by our TSOC Crane Crew.
- Bridge Crane:
- Top Running, Double Girder, Dual Motor Bridge Crane
- 40-Ton Capacity

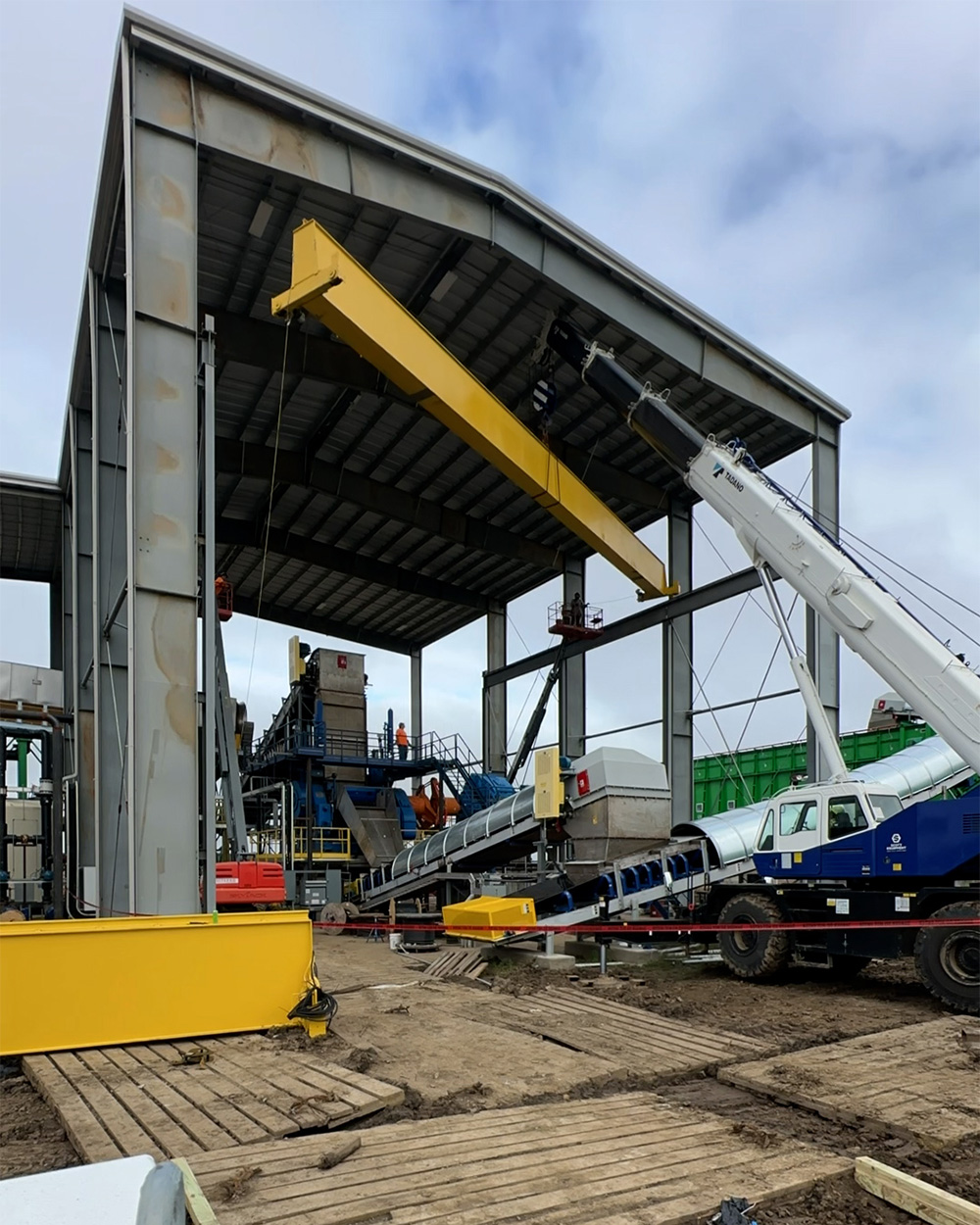

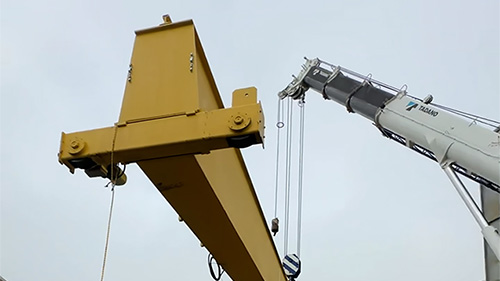

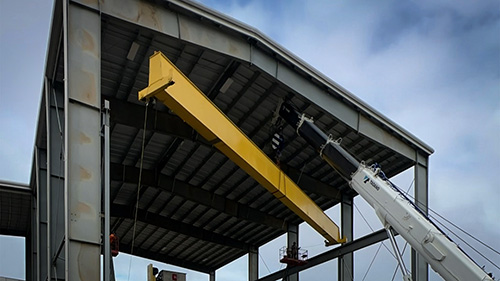

- 65 ft Span
- Class "D" Rated
- Outdoor Usage, NEMA 4 Components
- VFD Control Bridge
- In-Motion Radio Remote Control
- Back-up Independently Festooned PB Station
- Hoist:
- 40-Ton Capacity
- Detroit Double Girder Electric Wire Rope Hoist
- VFD Control Hoist and Trolley

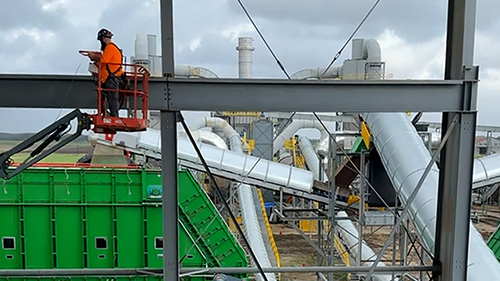

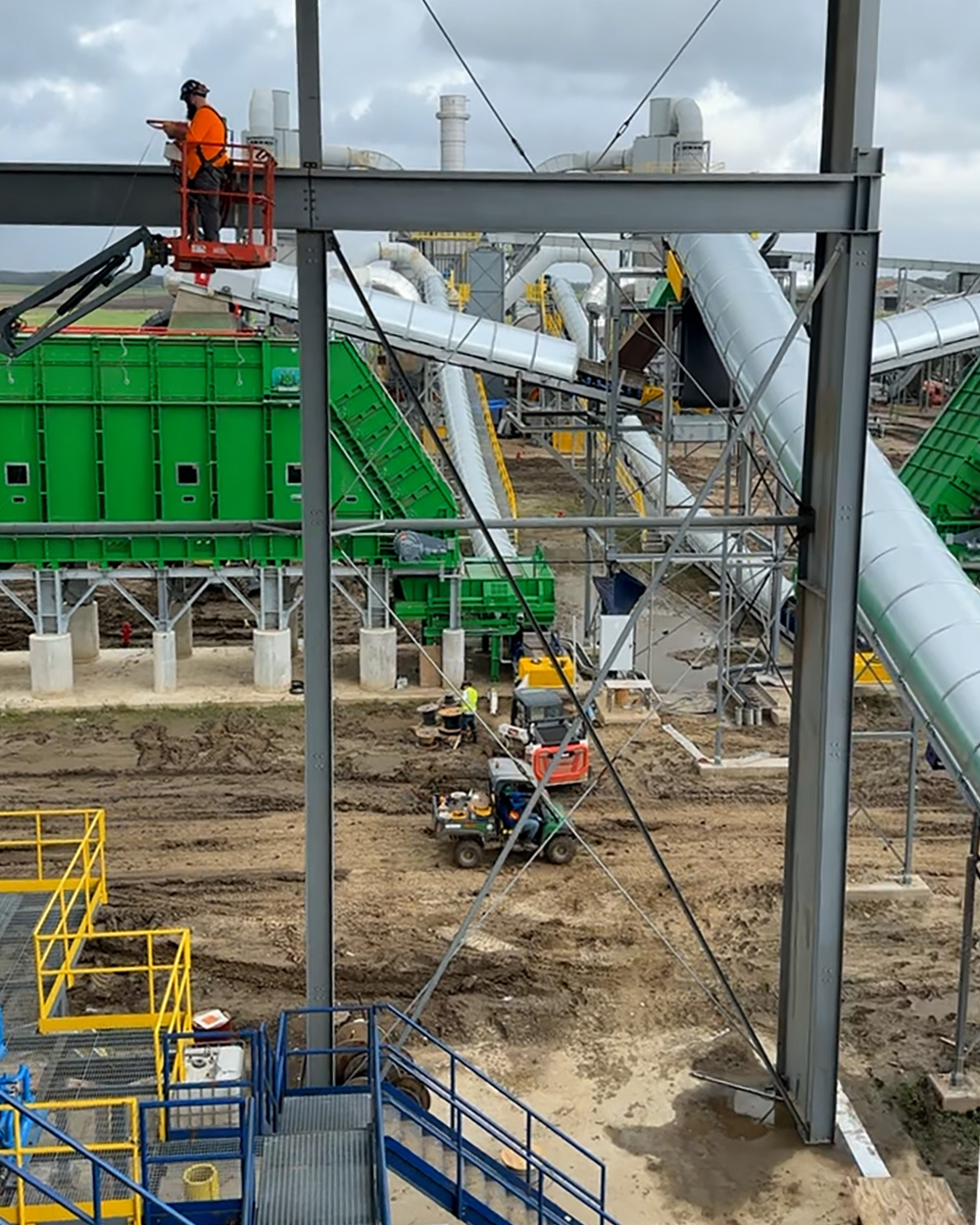

- Runway:

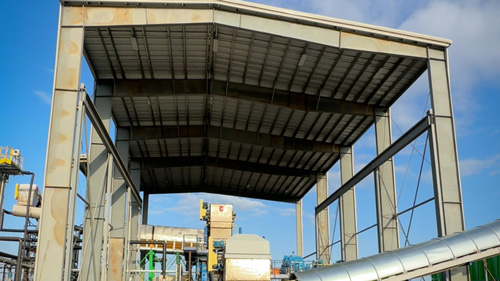

- 40-Ton Capacity
- 66 ft. Long

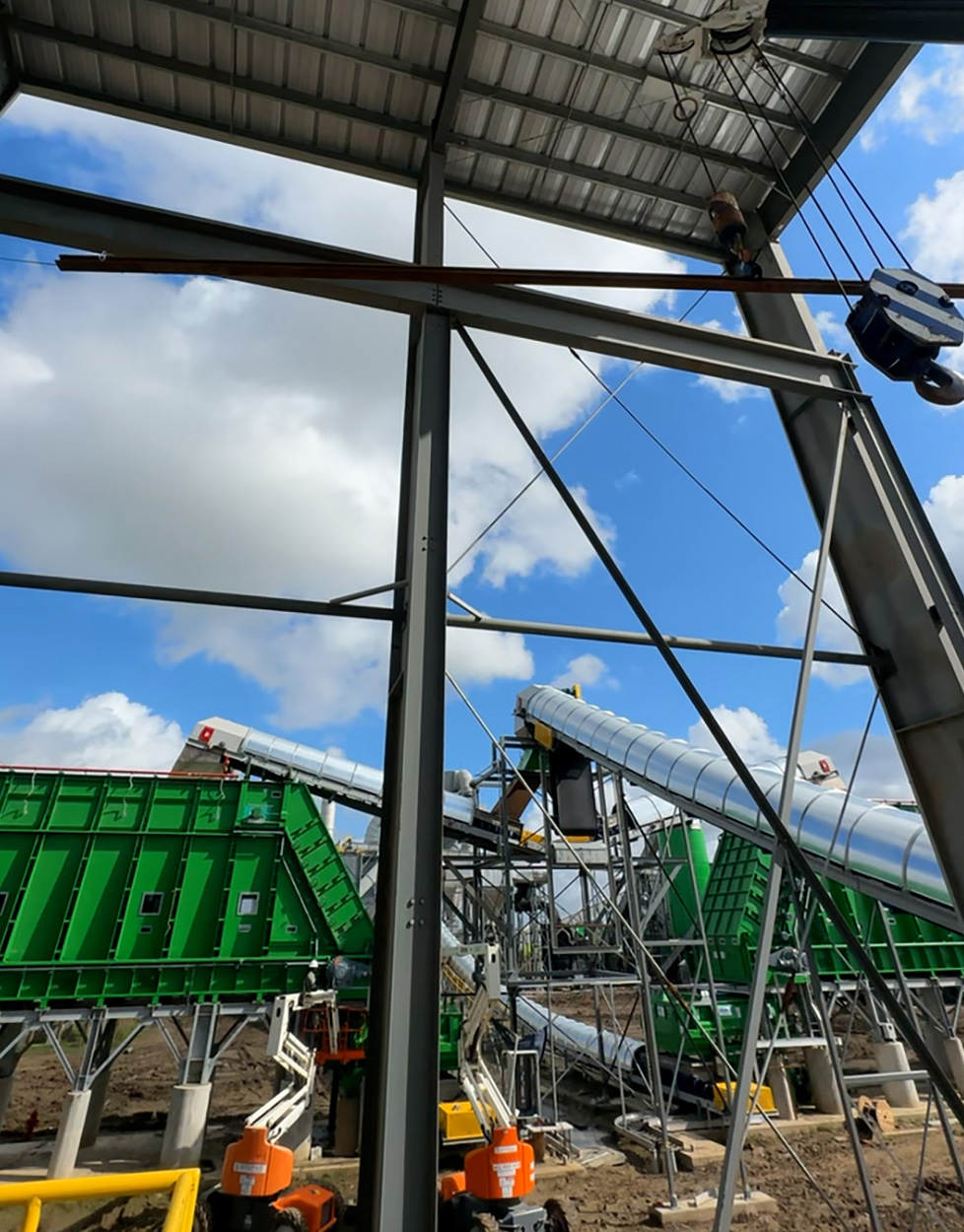

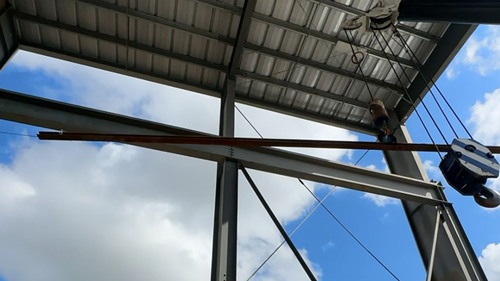

- 110-Amp Duct-O-Wire Conductor Bar Runway Electrification

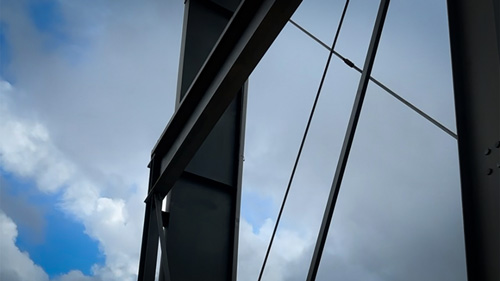

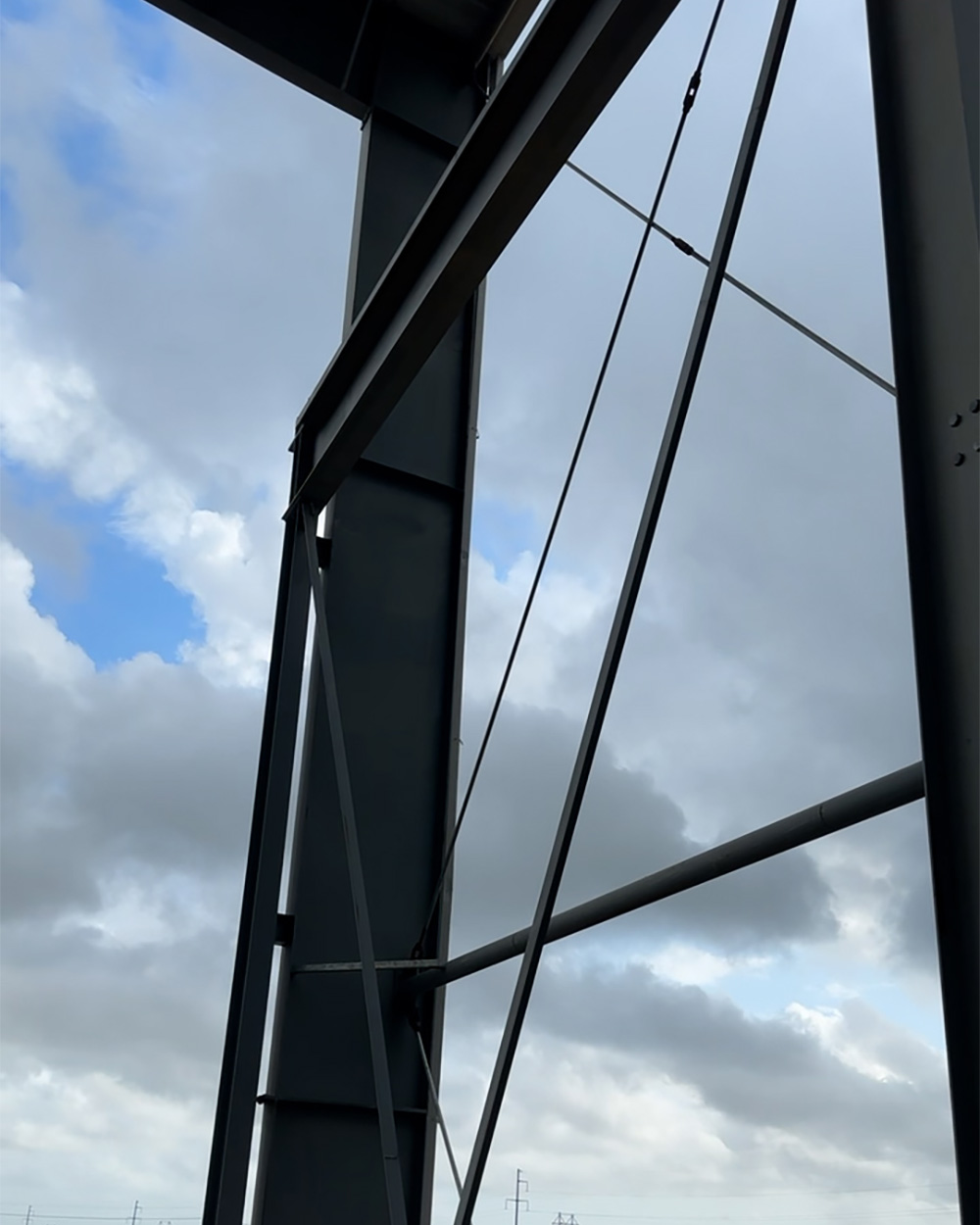

- Mounted to haunches provided by building manufacturer.
Example 2 - 40 Ton Double Girder Bridge Crane for Tool and Die Company

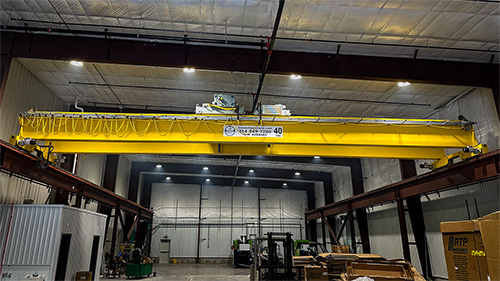

This is a top-running double girder bridge crane we installed for a tool and die shop. It features bogie end trucks with quad motors and dual Detroit electric wire rope hoists.
Specifications
- Capacity: 40-ton
- Type: Top Riding, Double Girder
- CMAA Class: "C", Indoor
- Span: 51 ft. – 4 in.
- Runway Rail: 180 ft.
- Wheel Base: 10 ft. – 6 in.
- Bogie Wheel Base: 3 ft. – 6 in.
- Bridge Speed: 100 fpm – Two Step VFD
- Main Hoist:
- Capacity: 40-ton
- Lift: 23 ft. – 7 in.
- Speed: 10 fpm – Closed Loop VFD
- Aux Hoist:
- Capacity: 20-ton
- Lift: 38 ft. – 6 in.
- Speed: 15 fpm – Closed Loop VFD
- Controller:
- Cattron Patriot A/BOTH/B Radio Remote with Spare Transmitter
- Back-up Independently Festooned 10-button Station with A/BOTH/B Selector Switch
