Suspa Movotec Bolt-On Dual Drive Lift System, Capacity 2,000 lbs., Stroke 16 in., Part No. MLS-00027

Manufacturer: Suspa

Availability: In stock

SKU: MLS-00027

Manufacturer part number: MLS-00027

Lead Time (subject to change, call to verify): typically ships in 25-30 business days

Height Adj. / Vert. Travel

No. of Cylinders

Suspa Options

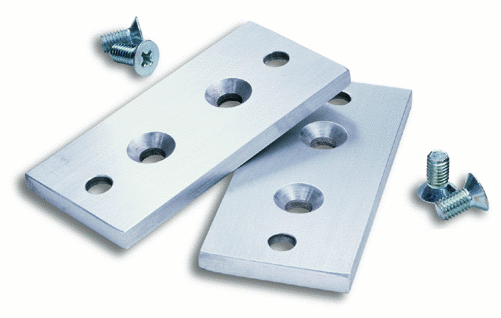

8 ea. Large Mounting Bracket (p/n D44-00001) [+$65.22]

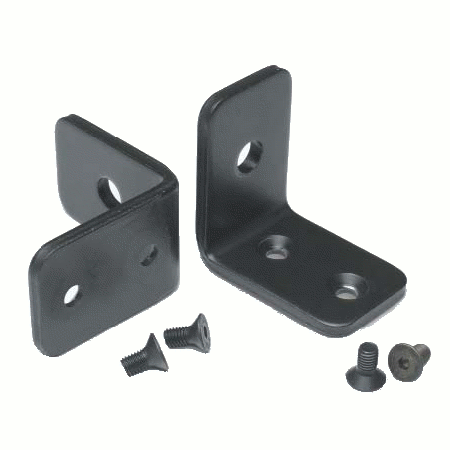

8 ea. L-Angle Extrusion Mounting Bracket (p/n D44-00018) [+$44.37]

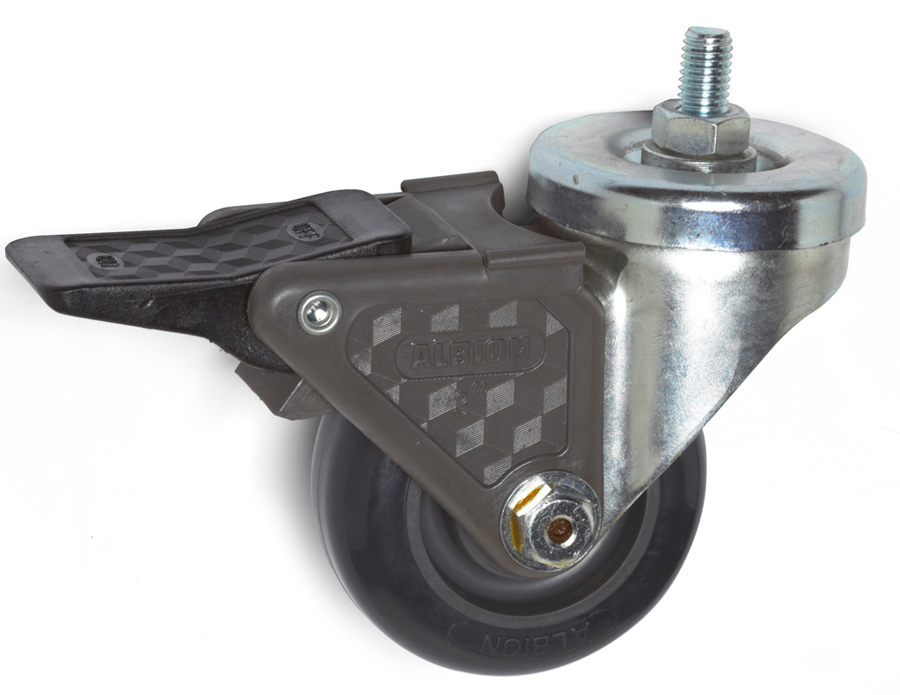

4 ea. Locking Casters (p/n D44-00037) [+$154.52]

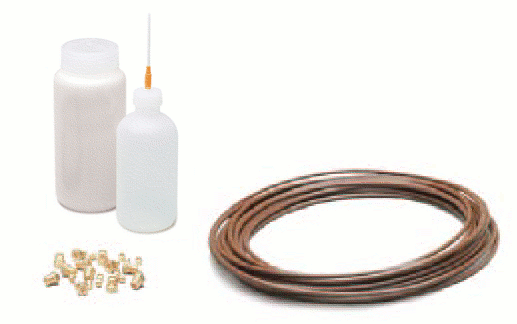

1 ea. Refill Kit (p/n D99-00010) [+$76.16]

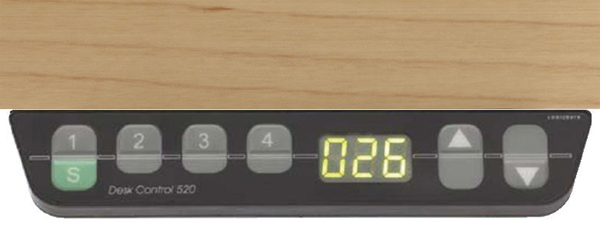

1 ea. Programmable Display Switch (p/n 645-03102) [+$75.40]

$1,665.00

Qty:

Documents, Drawings, and Manuals

Brochure

SUSPA Movotec Bolt-On Dual Drive Lift System Brochure

Manual

SUSPA Movotec Bolt-On Dual Drive Lift System Manual

Accessories

SUSPA Movotec Work Table Lift System Accessories

Product Data

Products Specifications

Attribute name	Attribute value

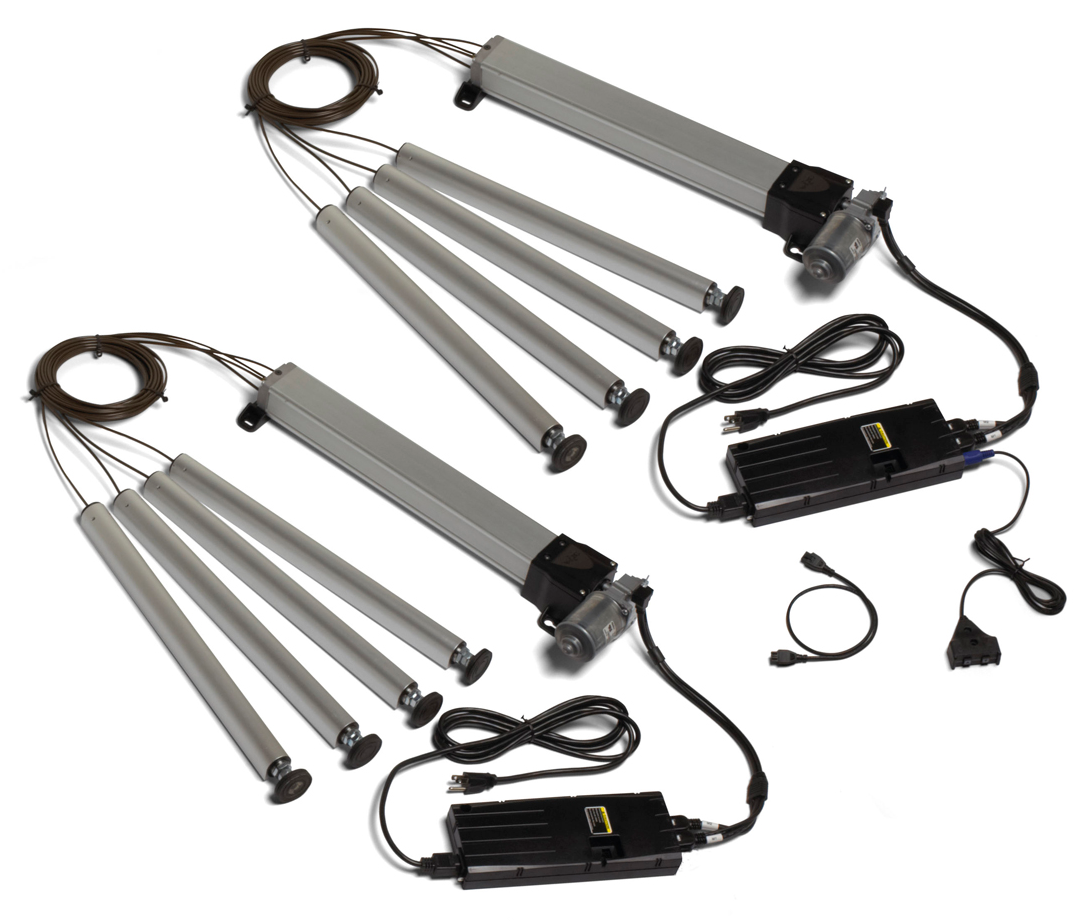

Features	Part Number: MLS-00027 Capacity: 2,000 lbs. / 907 kg Adjustment Range: 15.7 in. / 400 mm Can be easily attached to a workbench or light industrial machine to provide vertical height adjustment. Ideal for transforming static work surfaces into dynamic ones. System includes: Two synchronized Motor Driven Systems with controller and switch Two 2.5m (8ft.) and Two 3m (10ft.) sections of flexible tubing per pump Glides for each lift cylinder Drilling templates, tubing clips and cable ties Installation and operating instructions Low Profile Up/Down Switch
