OZ XR Series Steel Davit Crane, 1,000 lb. Capacity, Carbon-Steel Brake Winch, Part No OZXR1000DAV

Availability: In stock

SKU: OZXR1000DAV

Manufacturer part number: OZXR1000DAV

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Base Options *

Davit Crane Accessories

$1,824.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ XR Series Steel Davit Crane Brochure

Spec Sheet

OZ XR Series Steel Davit Crane Spec Sheet

Manual

OZ XR Series Steel Davit Crane Manual

Manual

OZ Lifting Products Winch Manual

Products Specifications

Attribute name	Attribute value

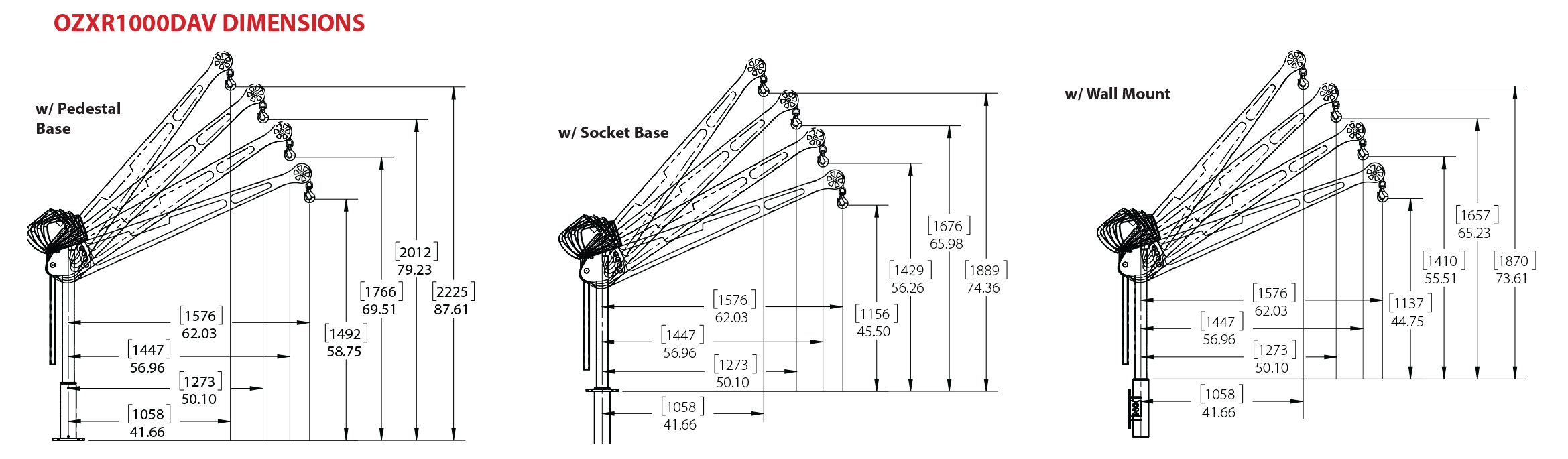

Features	Model: OZXR1000DAV Capacity: 1,000 lbs. Boom Reach @ Max. Height (46° Angle): 41.66 in. Boom Reach @ Min. Height (16° Angle): 62.03 in. Lifting Height @ Max. Height (46° Angle): 87.61 in. Lifting Height @ Min. Height (16° Angle): 58.75 in. OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries. Max Load Capacity at Any Angle - Maintains maximum weight capacity in all positions. 4 Different Boom Height Adjustments - Easy-to-use pin adjustment allows the boom to be adjusted between 4 different angles from 16° to 46°. 360-degree rotation of crane on sleeve bearing. Durable steel construction with powder coat finish. DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately).
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
