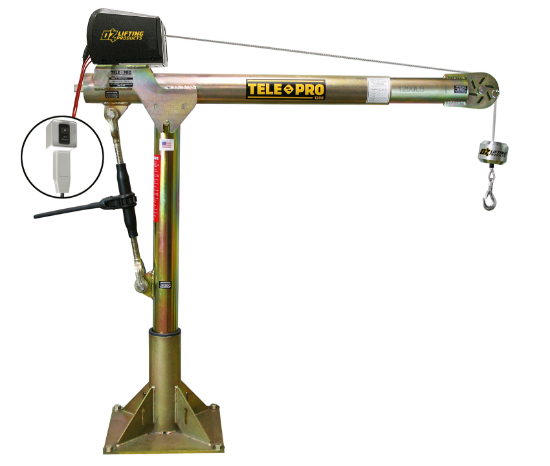

OZ Tele-Pro Davit Crane, 1,200 lb. Capacity, 12V DC Electric Winch, Part No OZTP1200DAV-DCW

Availability: In stock

SKU: OZTP1200DAV-DCW

Manufacturer part number: OZTP1200DAV-DCW

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Wire/Synthetic Rope Assemblies *

Lift * 1/4" Galvanized cable assembly with swivel hook and latch.

Lift * 1/4" Stainless Steel cable assembly with swivel hook and latch.

Lift * 3/16" Synthetic rope assembly with stainless steel swivel hook with latch.

Lift * 1/4" Synthetic rope assembly with swivel hook with latch.

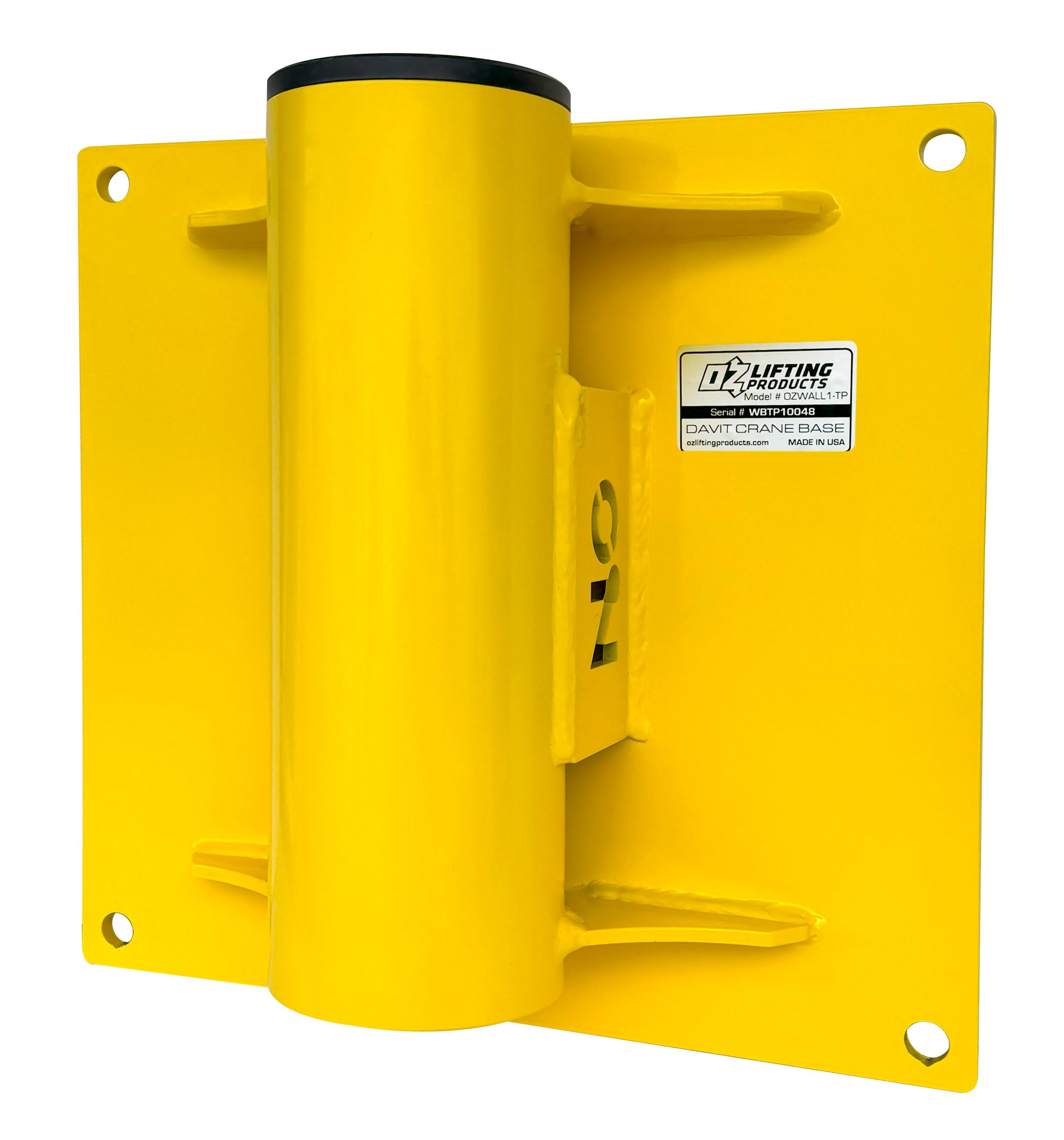

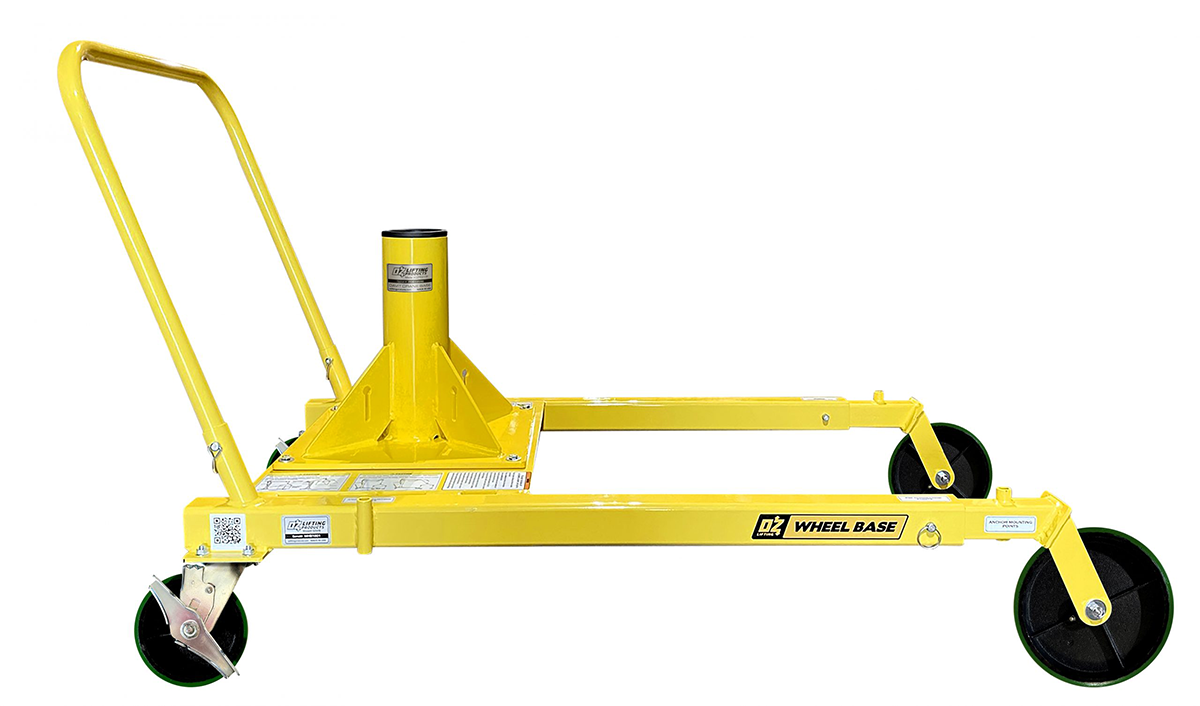

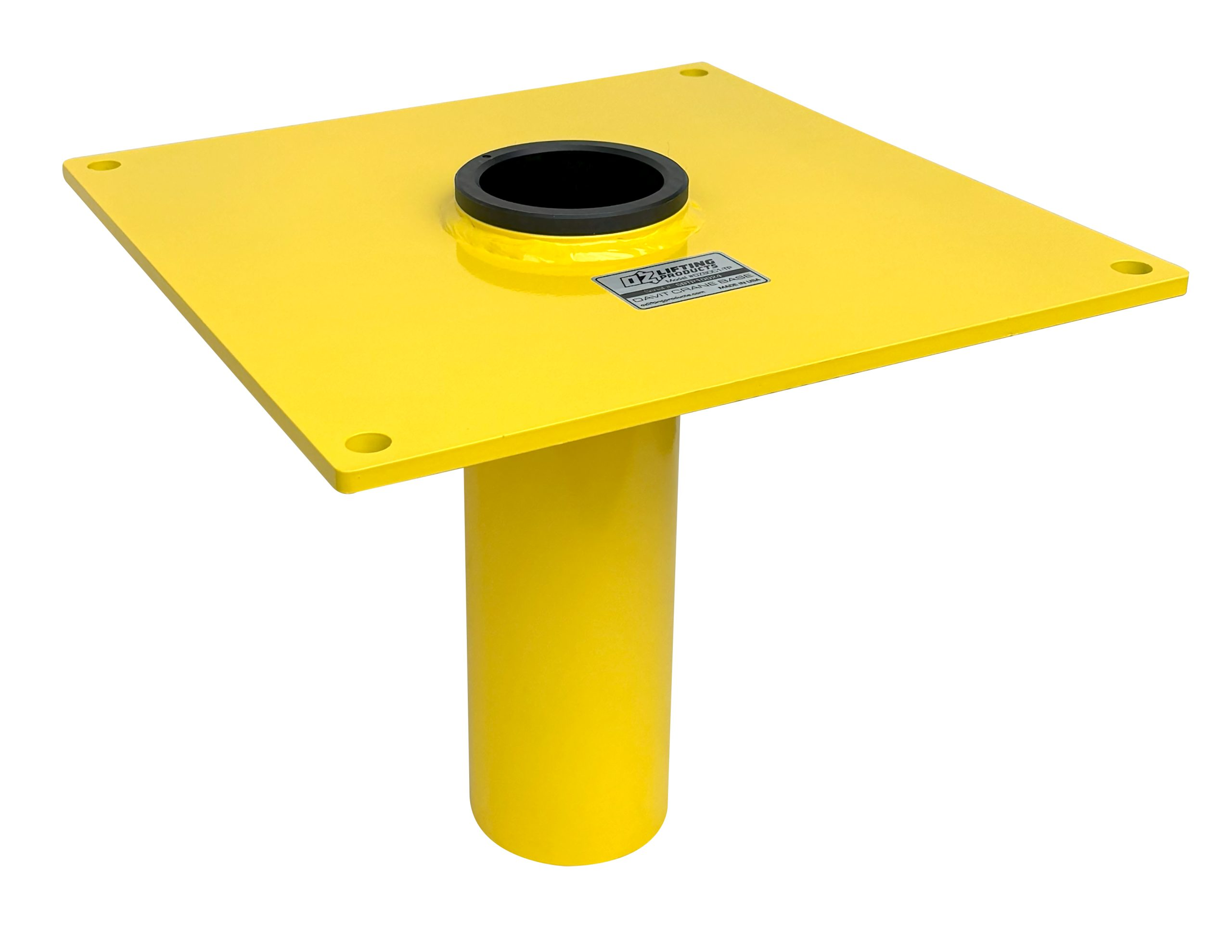

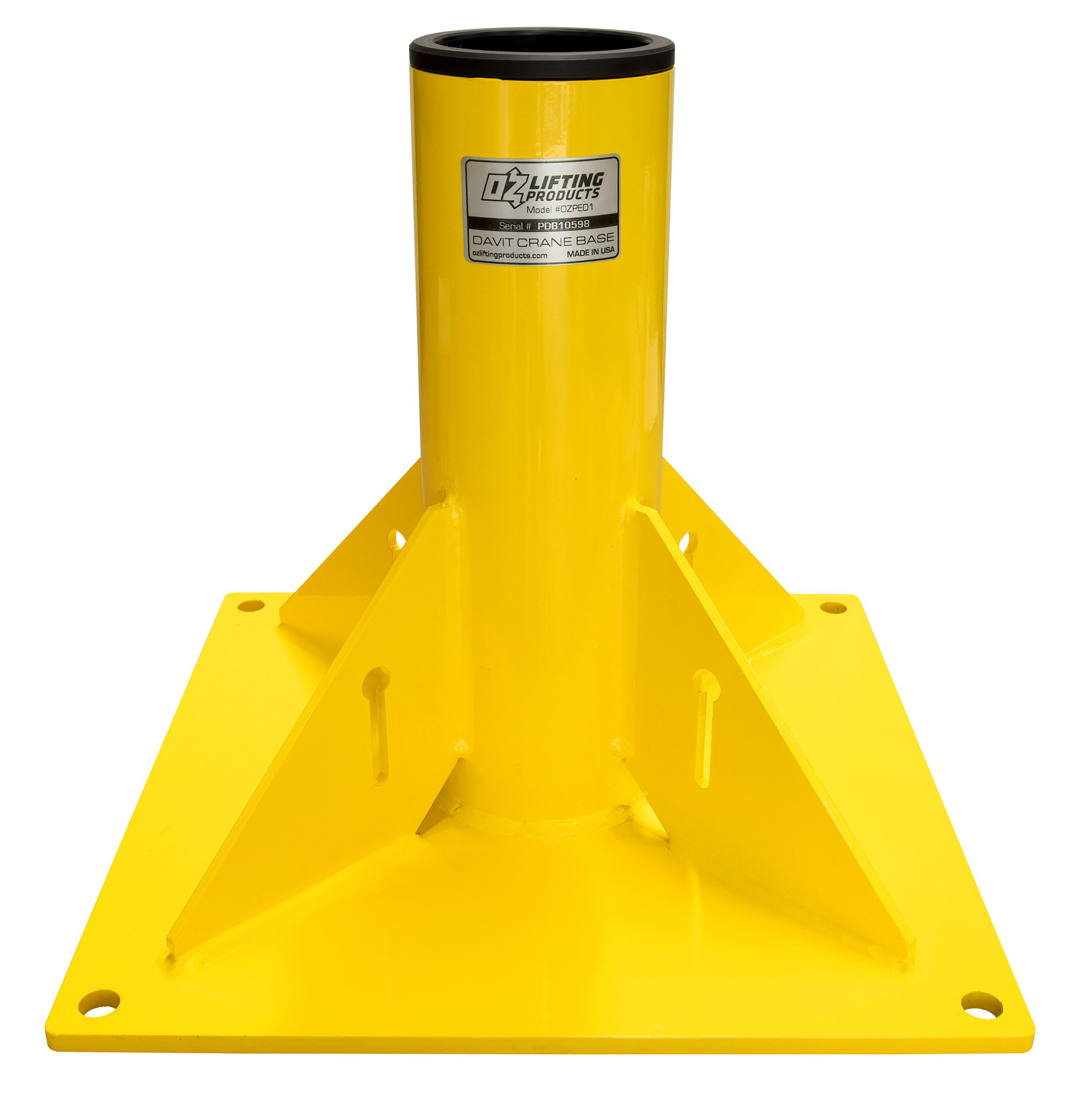

Base Options *

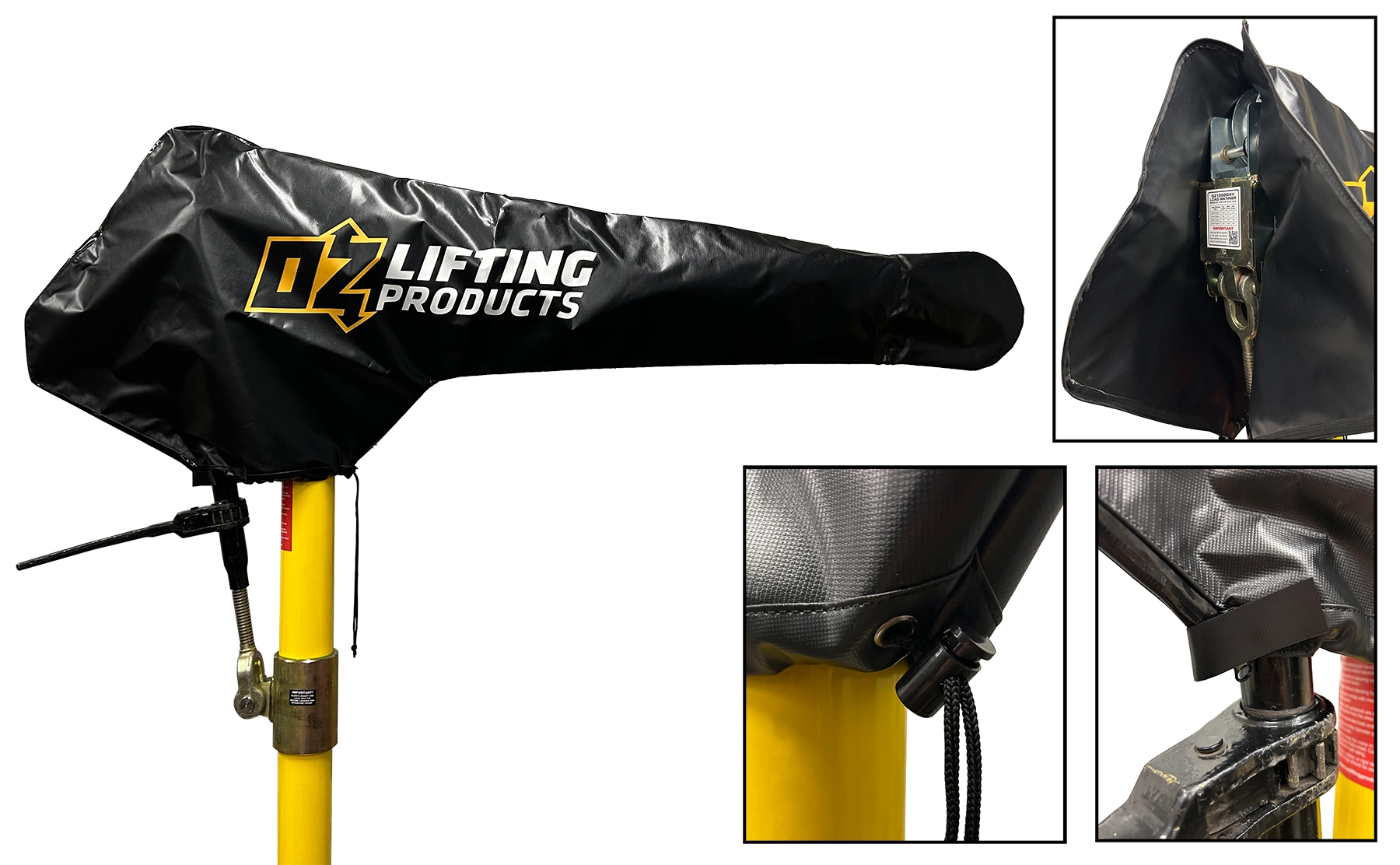

Davit Crane Accessories

$3,366.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ Tele-Pro Davit Crane Brochure

Spec Sheet

OZ Tele-Pro Davit Crane Spec Sheet

Manual

OZ Tele-Pro Davit Crane Manual

Manual

OZ Lifting Products Winch Manual

Products Specifications

Attribute name	Attribute value
Features	Model: OZTP1200DAV-DCW Capacity: 1,200 lbs. Boom Length Horizontal: 36 to 66 in. Boom Length 45° Angle: 23 to 44.5 in. Lifting Height Horizontal: 39.75 in. Lifting Height 45° Angle: 62.5 to 83.5 in. OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries. Adjustable Under Load - The OZ TELE-PRO Davit Crane has a unique boom that is capable of being adjusted while under load. Both the angle and extension of the boom can be changed while the crane is under load. Telescoping Boom - Adjusted using quick connect winch handle or drill drive adapter (included). Adjustable Boom Angle - Ratchet screw jack adjusts boom between horizontal position and 45° angle. 360-degree rotation of crane on sleeve bearing. Smart Latch technology at boom/mast connection. Corrosion-resistant, zinc-plated finish. DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately).
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
