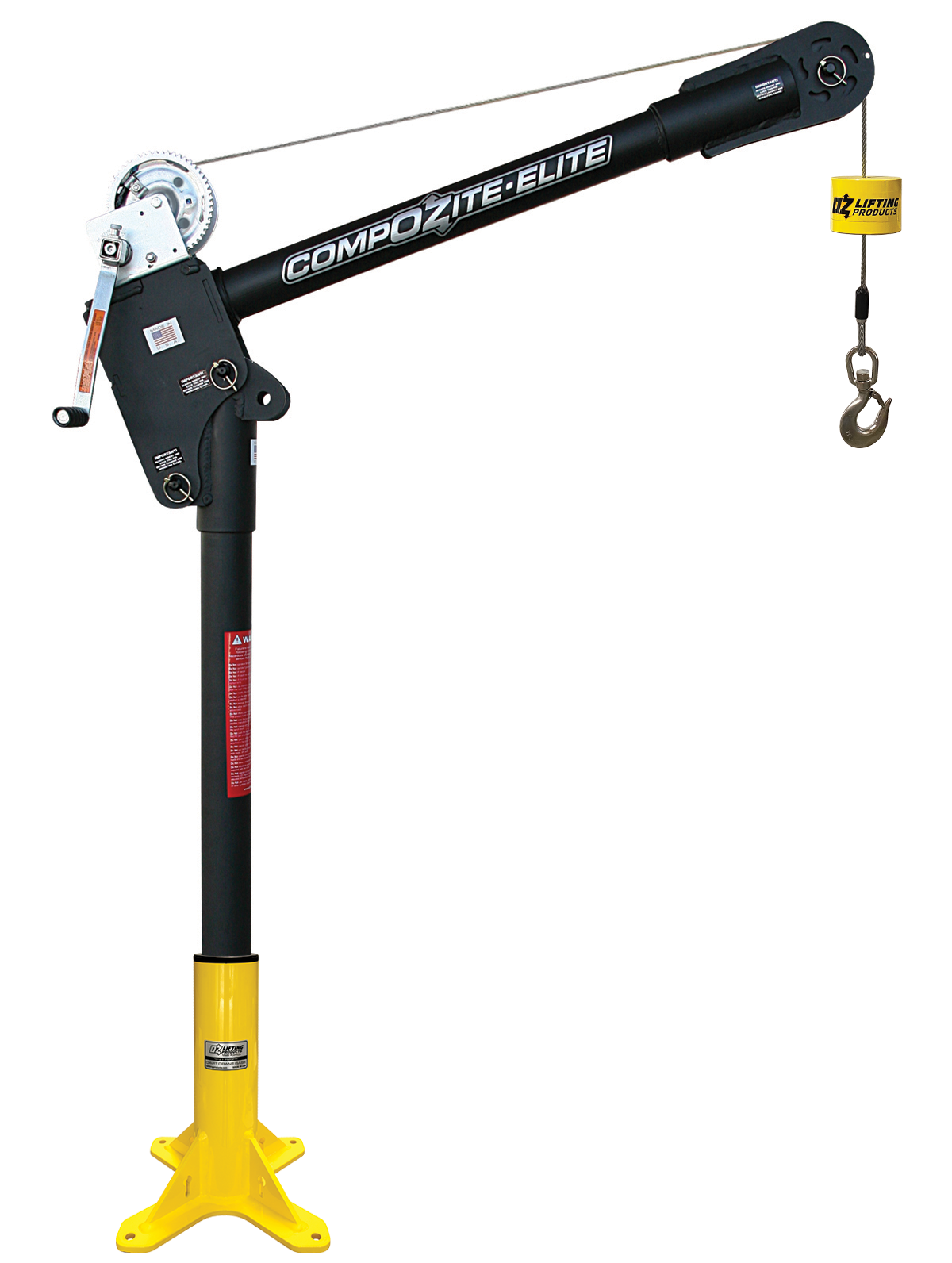

OZ Compozite Elite Davit Crane, 1,200 lb. Capacity, Carbon-Steel Brake Winch, Part No OZCF1200DAV

Manufacturer: OZ Lifting Products

Availability: In stock

SKU: OZCF1200DAV

Manufacturer part number: OZCF1200DAV

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Base Options *

Davit Crane Accessories

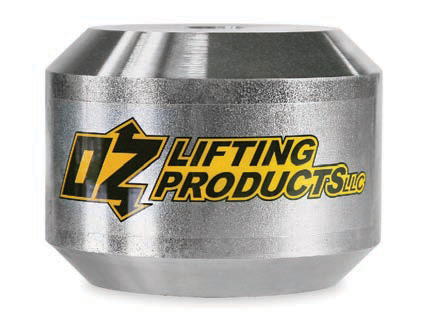

Headache Ball (OZHB10) [+$124.64]

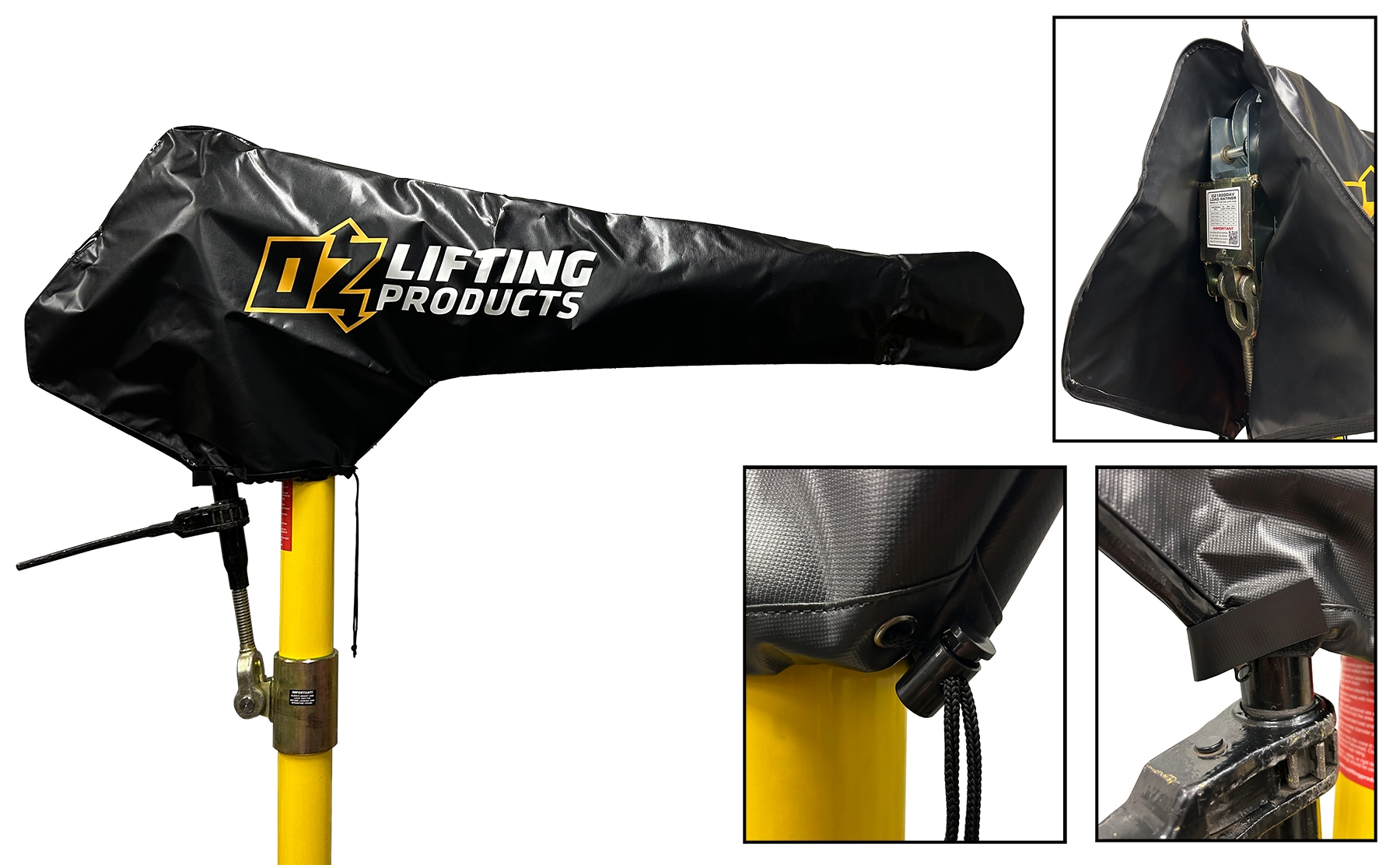

Davit Crane Cover (OZDAV-C1) [+$92.32]

$3,199.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ Compozite Elite Davit Crane Brochure

Spec Sheet

OZ Compozite Elite Davit Crane Spec Sheet

Manual

OZ Compozite Elite Davit Crane Manual

Manual

OZ Lifting Products Winch Manual

Products Specifications

Attribute name	Attribute value

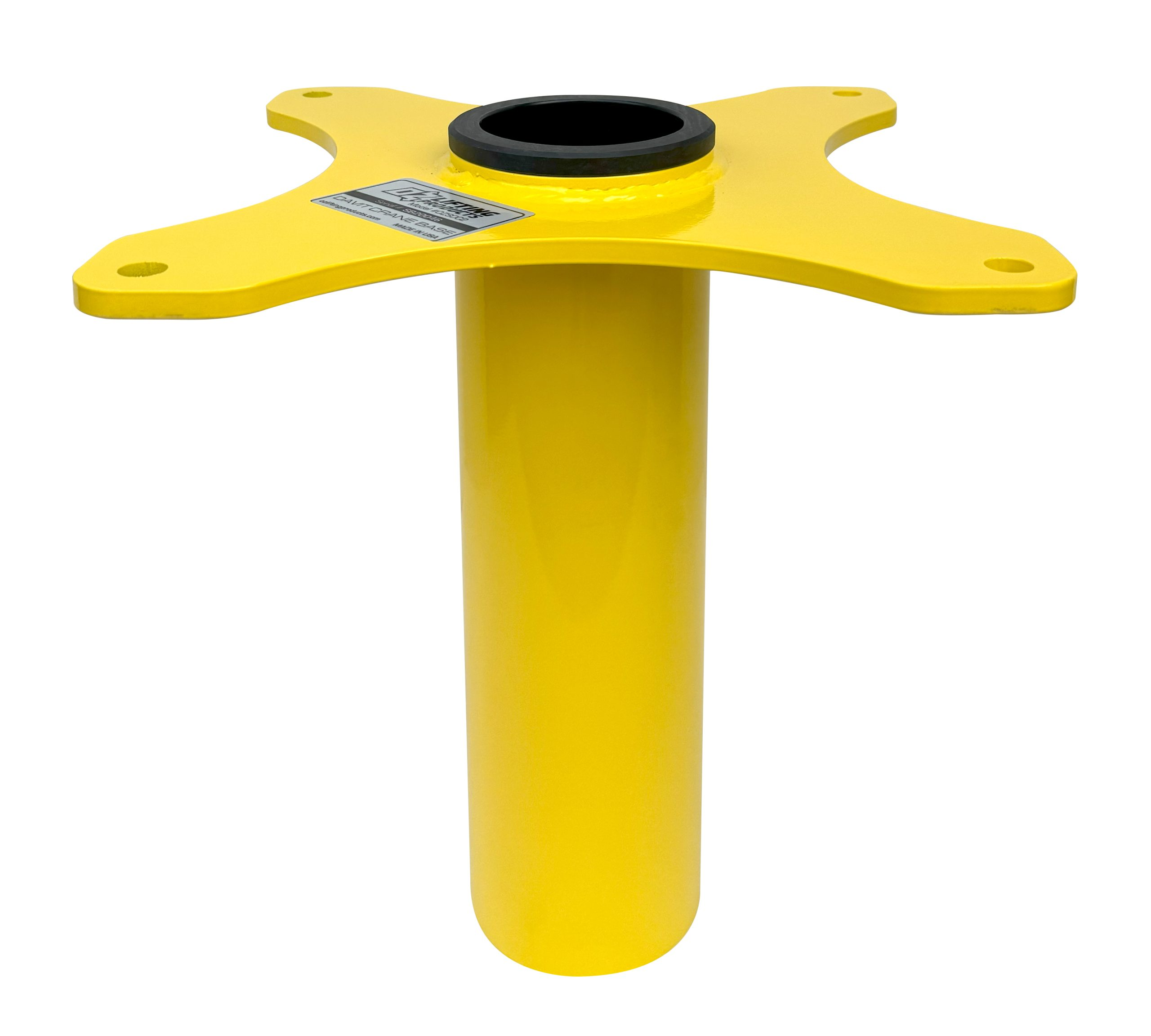

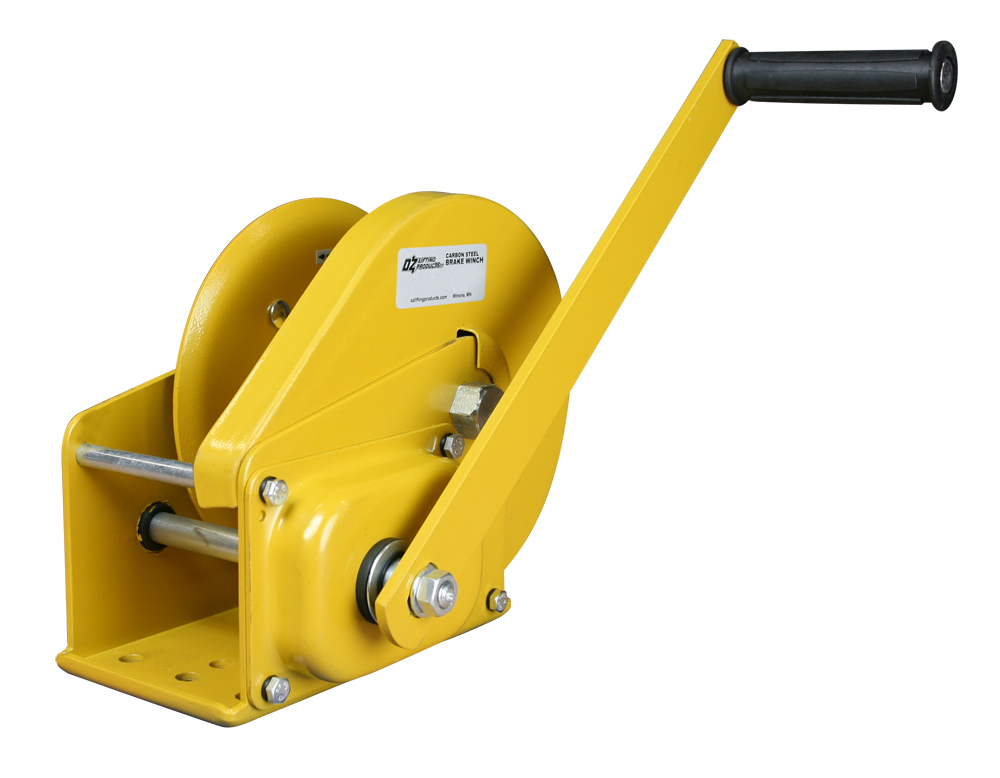

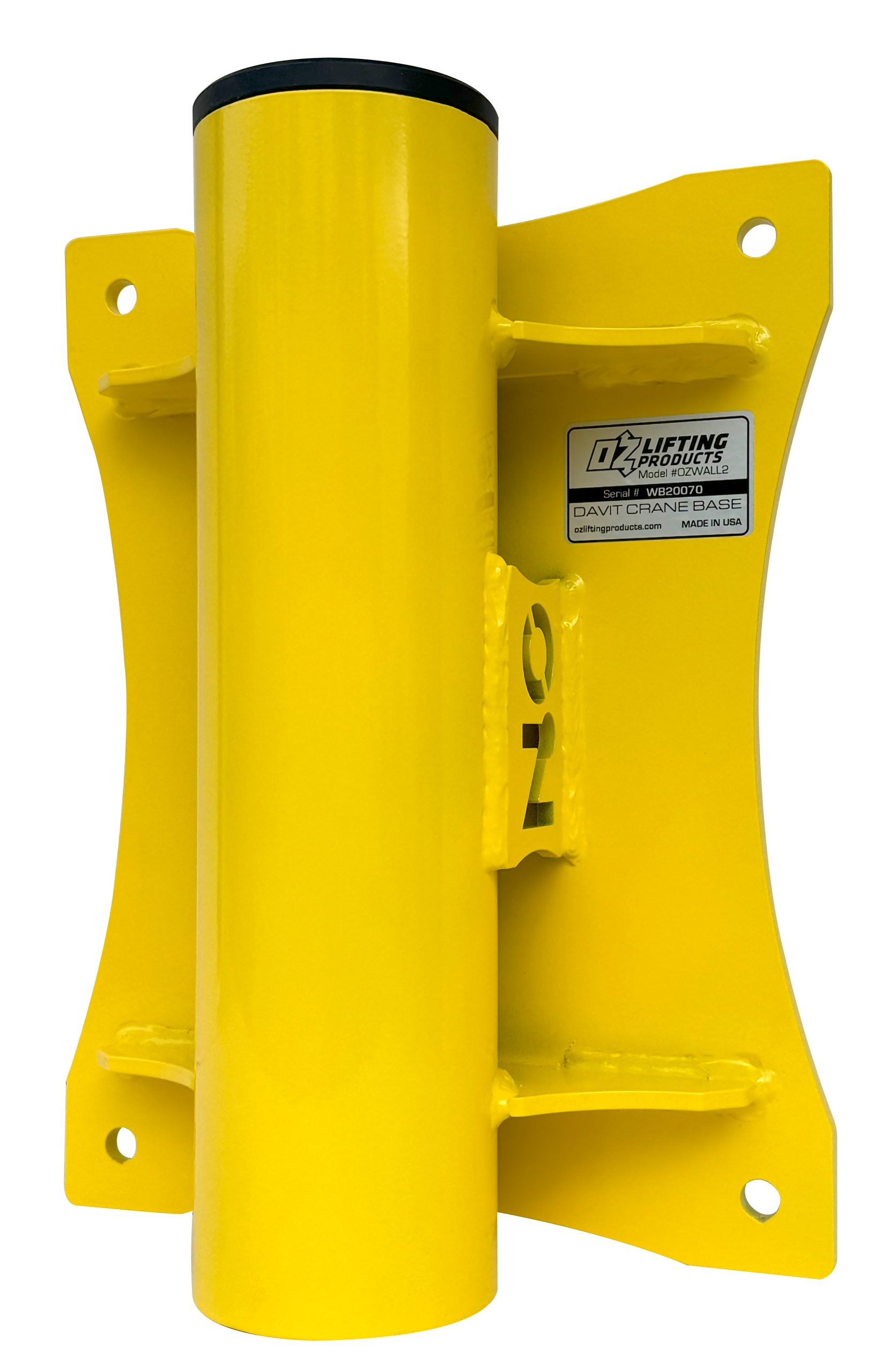

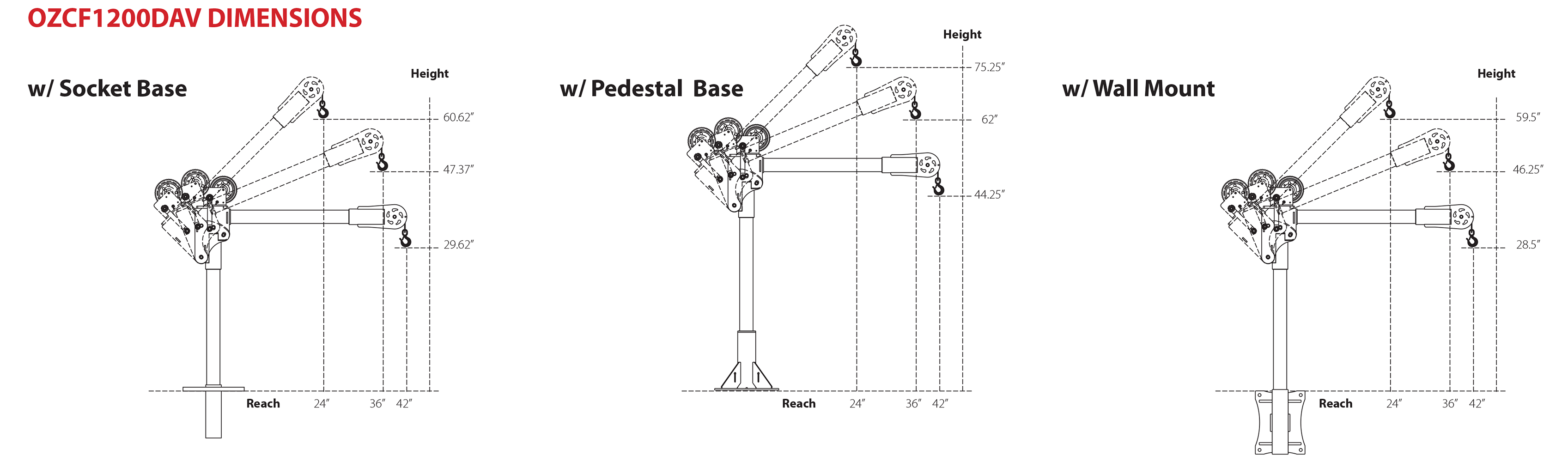

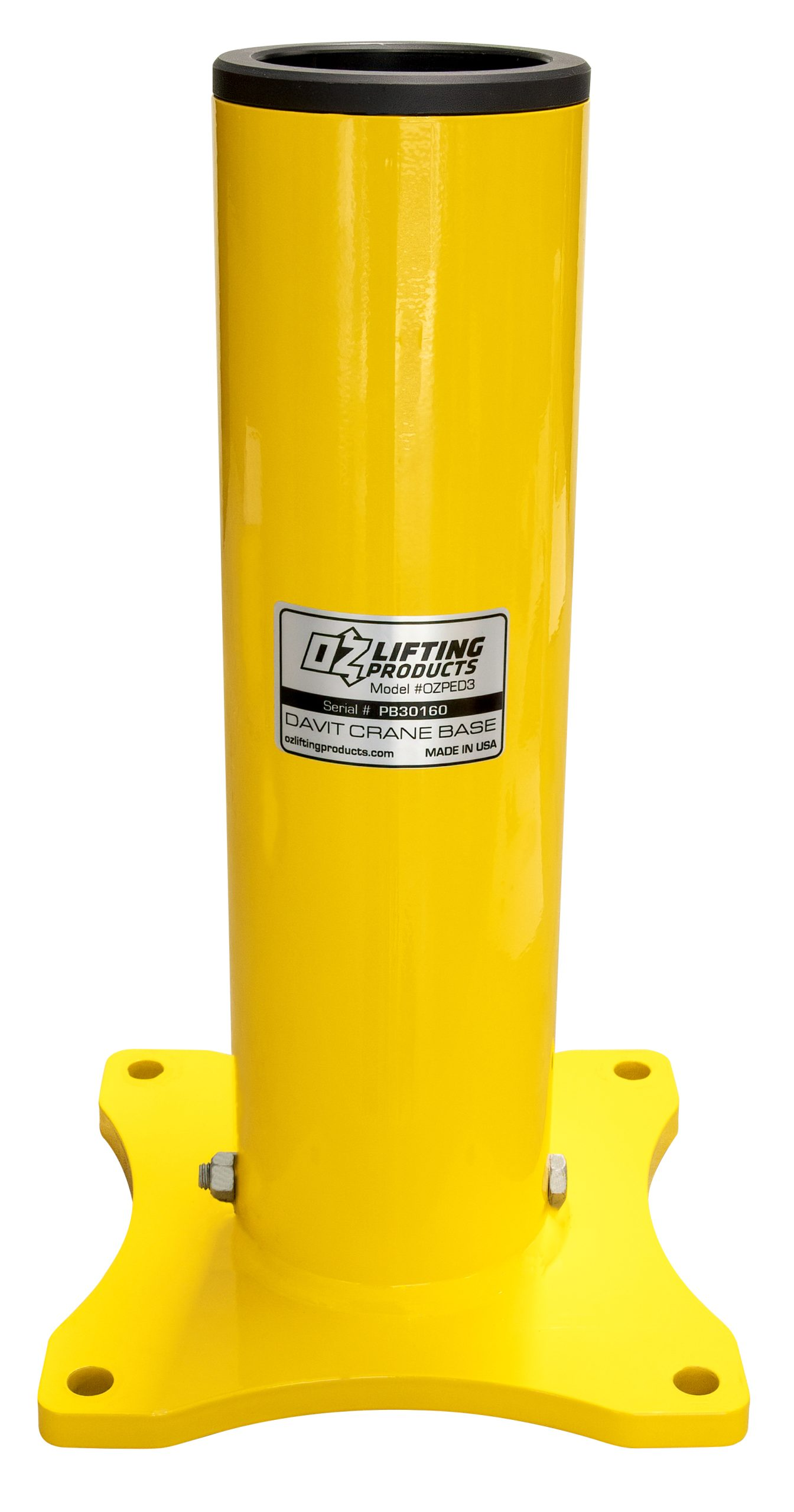

Features	Model: OZCF1200DAV Capacity: 1,200 lbs. Boom Reach Horizontal: 42 in. Boom Reach 45° Angle: 24 in. Lifting Height Horizontal: 29.62 in. (Socket Base) / 44.25 in. (Pedestal Base) / 28.5 in. (Wall Mount) Lifting Height 45° Angle: 60.62 in. (Socket Base) / 75.25 in. (Pedestal Base) / 59.5 in. (Wall Mount) OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries. Carbon-Fiber / Aluminum Construction - Carbon-fiber and high-strength aluminum construction of the mast and boom makes it pound for pound the lightest and strongest crane on the market. Truly Portable Design - Can be completely assembled and dis-assembled without tools, with a total weight of less than 40 lbs (without winch and cable). Adjustable Boom Angle - Easy-to-use pin adjustment allows the boom to be adjusted between horizontal position and 45° angle. 360° Rotation - External handle helps rotate the crane 360-degrees at the sleeve bearing. Corrosion-resistant finish. Quick connect winch handle with power drill adapter included. Smart Latch technology at boom/mast connection. DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately). No tools required for installation.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
