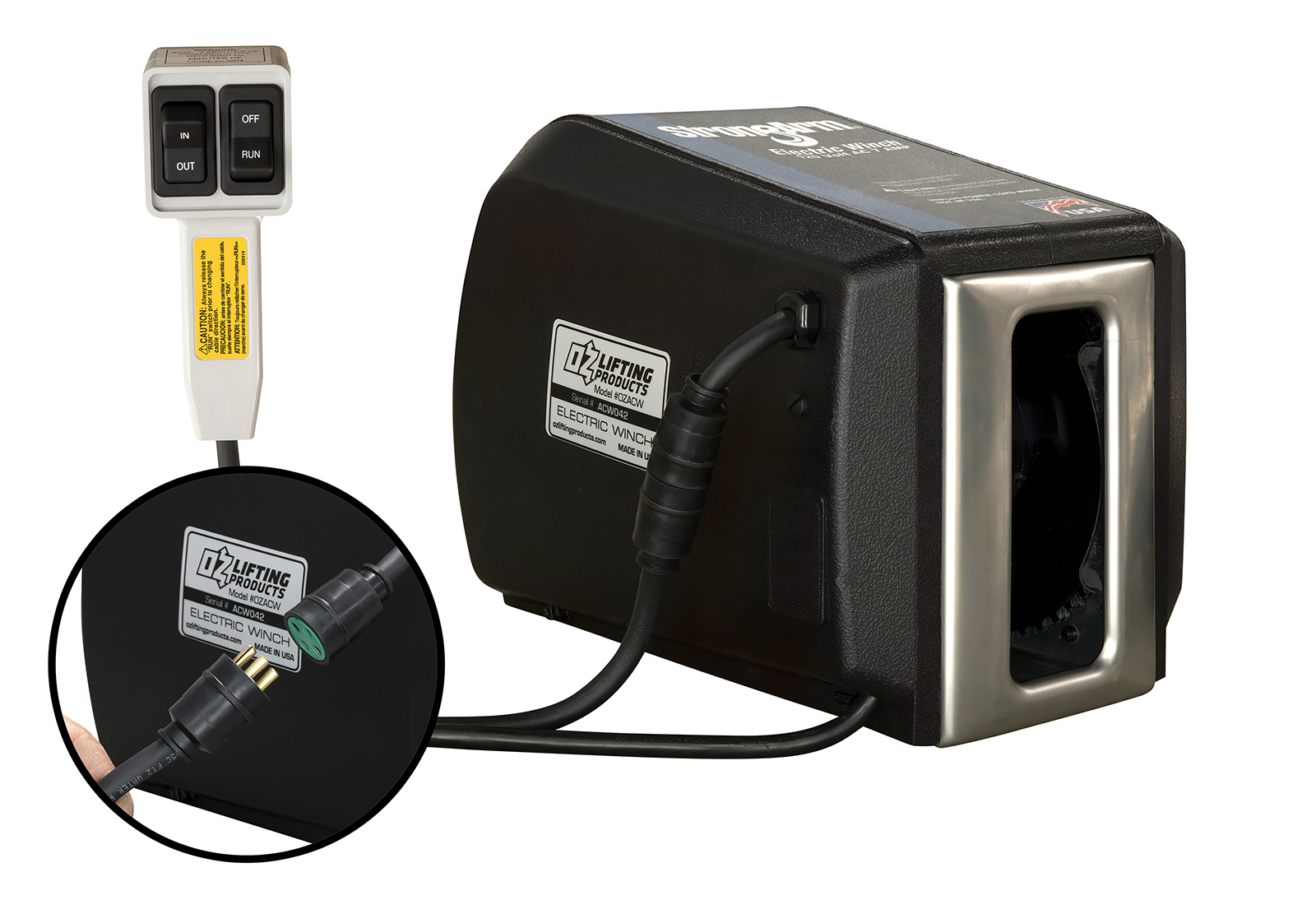

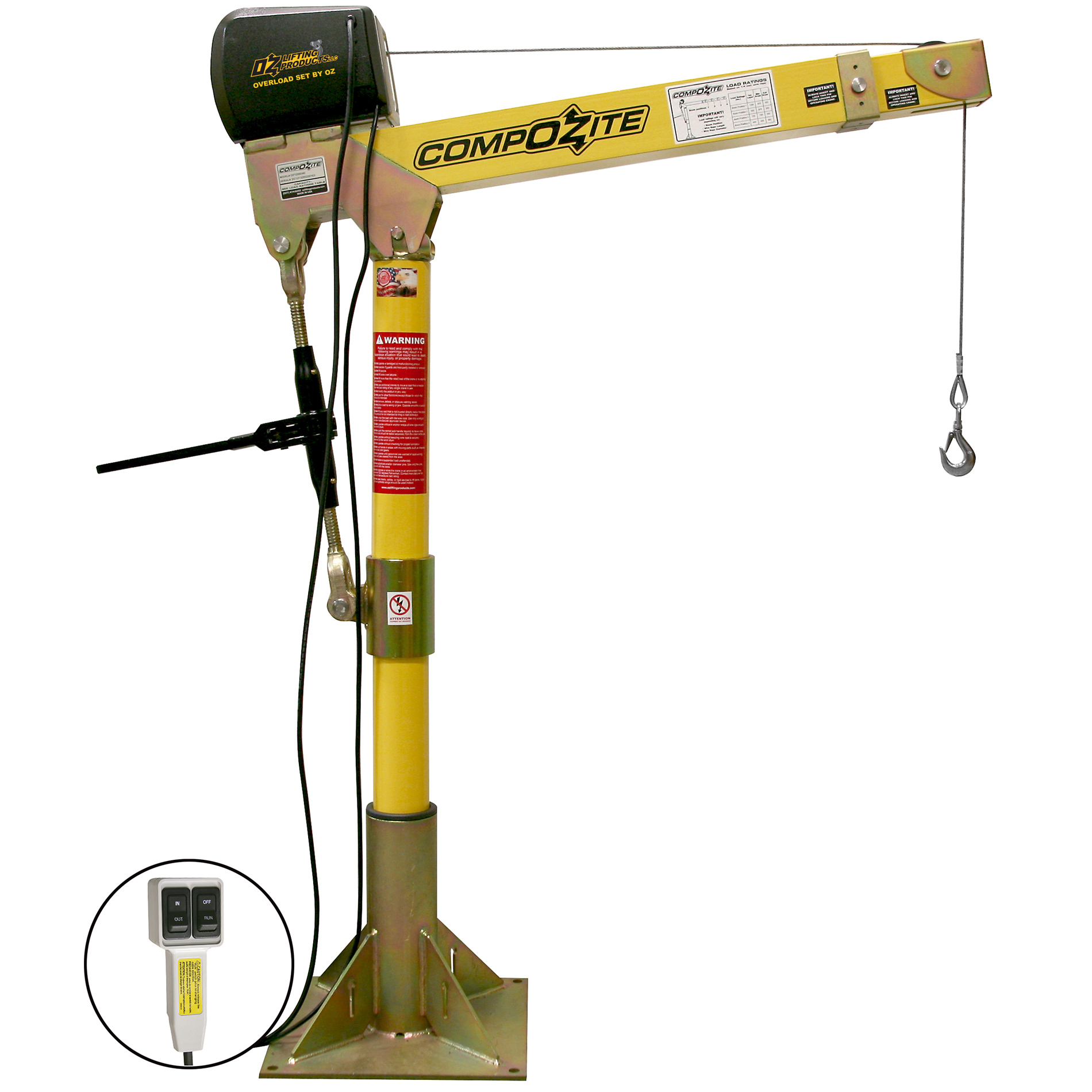

OZ Compozite Davit Crane, 1,200 lb. Capacity, 110V AC Electric Winch, Part No OZ1200DAV-ACW

Manufacturer: OZ Lifting Products

Availability: In stock

SKU: OZ1200DAV-ACW

Manufacturer part number: OZ1200DAV-ACW

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Base Options *

Davit Crane Accessories

Headache Ball (OZHB10) [+$124.64]
Davit Crane Cover (OZDAV-C1) [+$92.32]

$3,782.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ Compozite Davit Crane Brochure

Spec Sheet

OZ Compozite Davit Crane Spec Sheet

Manual

OZ Compozite Davit Crane Manual

Manual

OZ Lifting Products Winch Manual

Products Specifications

Attribute name	Attribute value

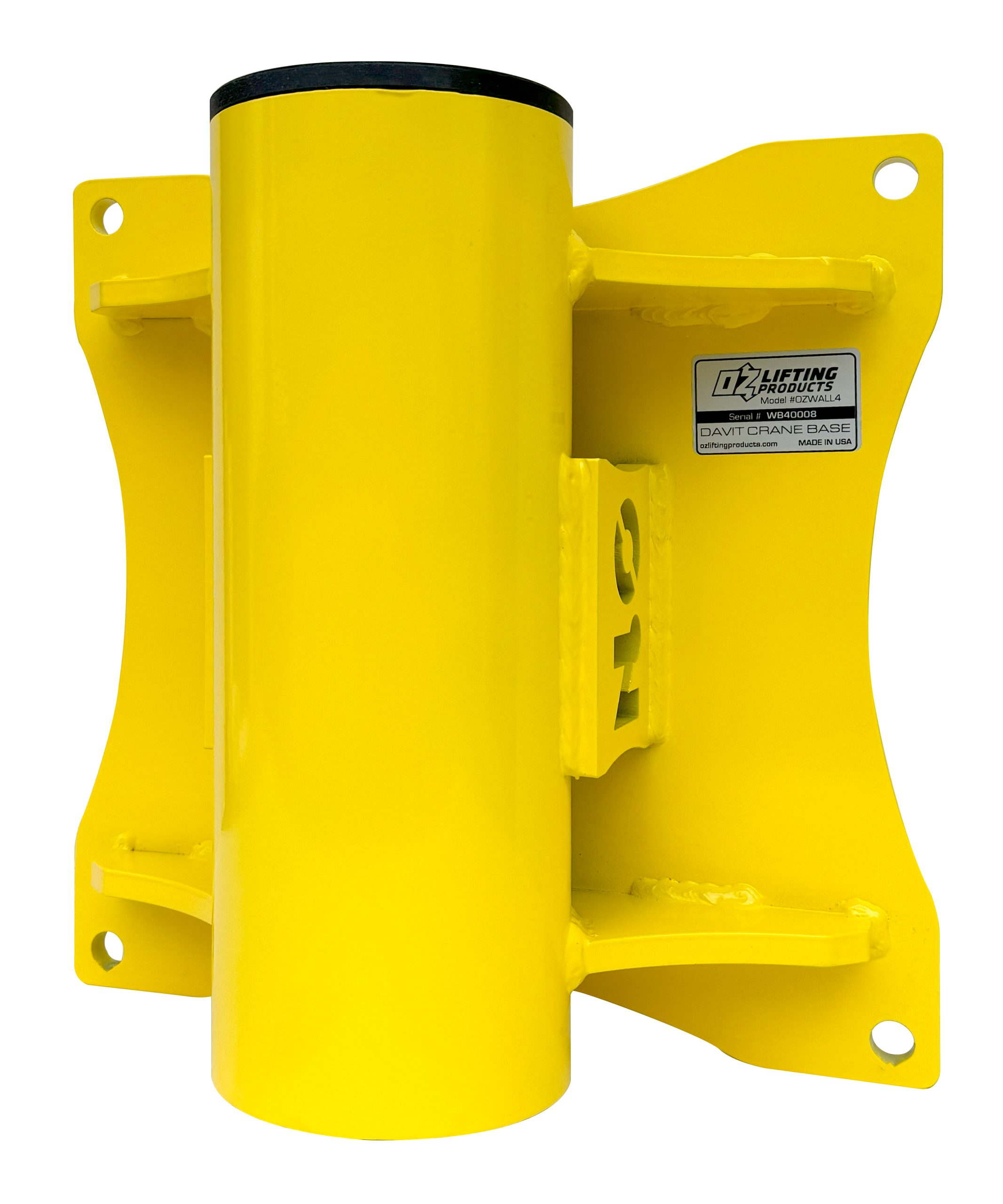

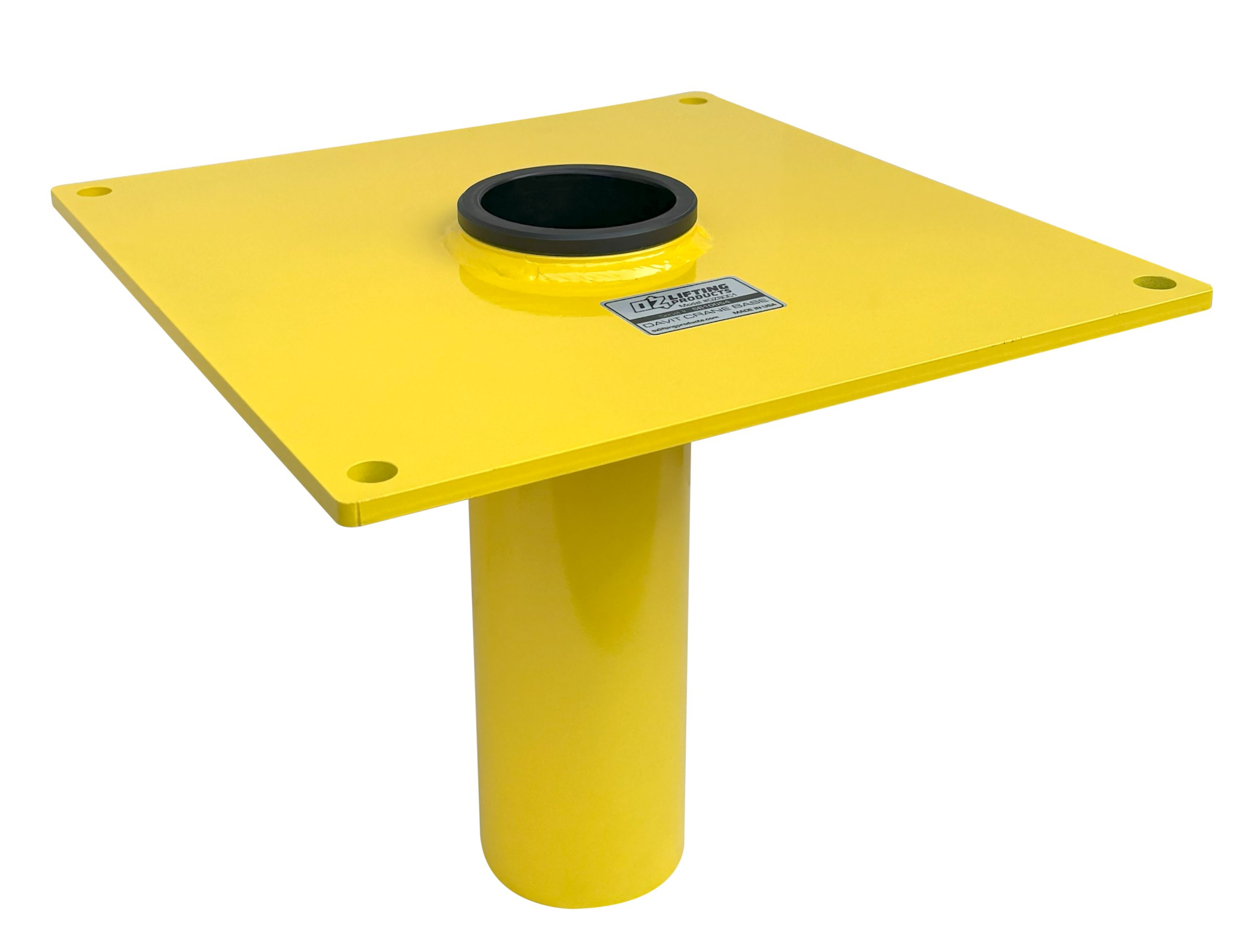

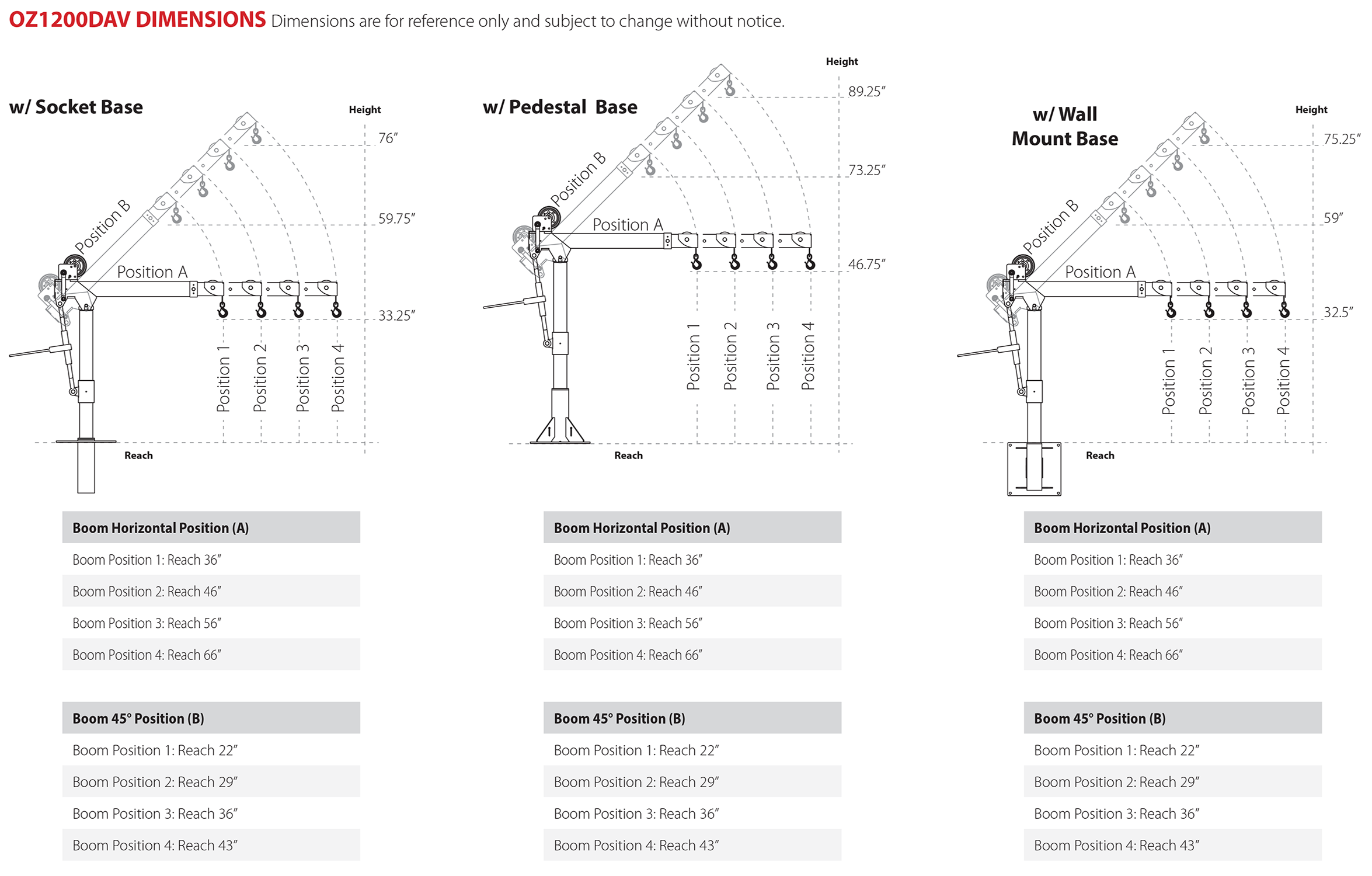

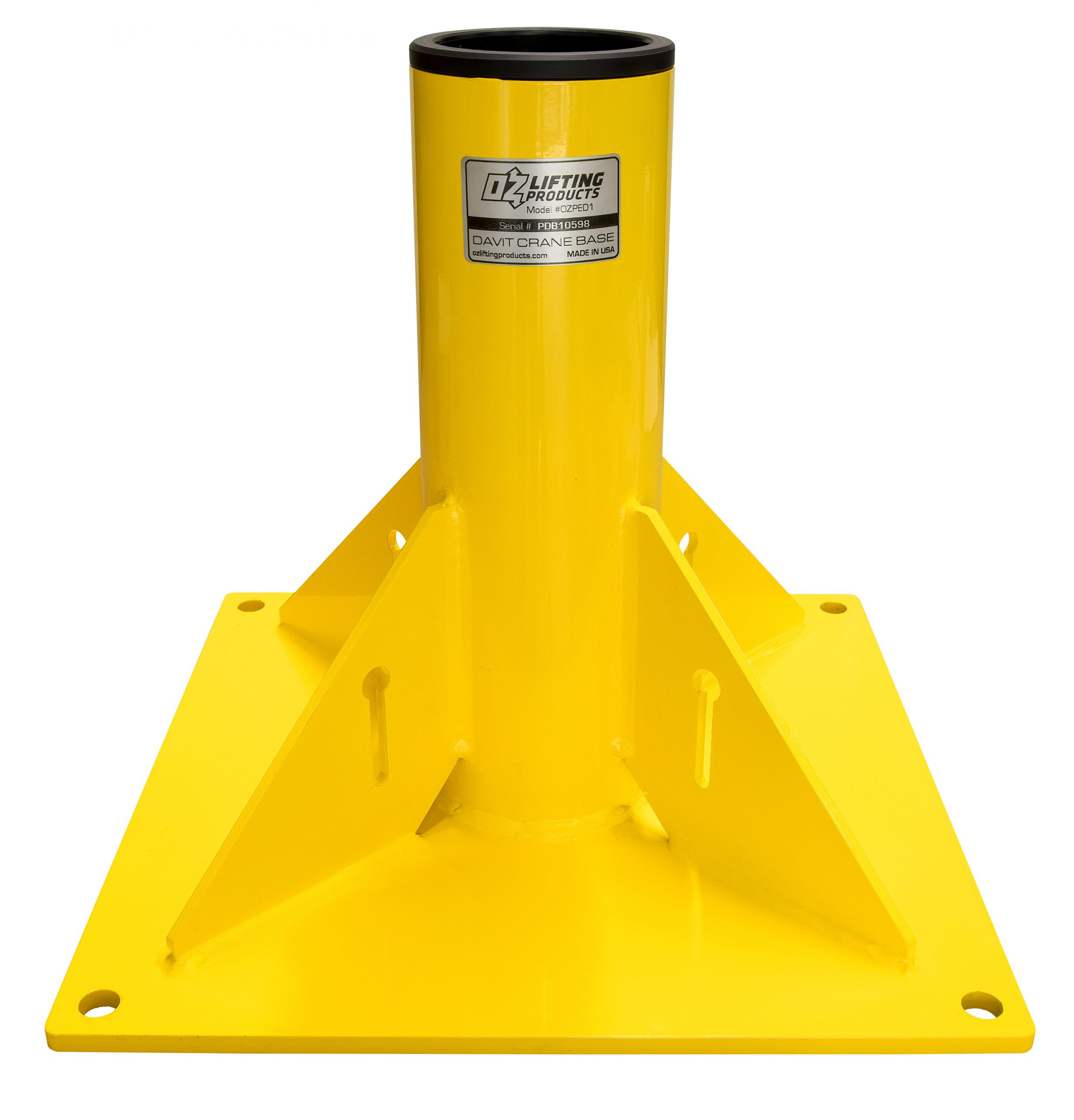

Features	Model: OZ1200DAV-ACW Capacity: 1,200 lbs. Boom Reach Horizontal: 36 to 66 in. Boom Reach 45° Angle: 22 to 43 in. Lifting Height Horizontal: 33.25 in. (Socket Base) / 46.75 in. (Pedestal Base) / 32.5 in. (Wall Mount) Lifting Height 45° Angle: 76 in. (Socket Base) / 89.25 in. (Pedestal Base) / 75.25 in. (Wall Mount) OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries. Advanced Composite Material - Lightweight, composite material construction of the mast and boom makes the crane about 40% lighter than steel. Telescoping Boom - Easy-to-use pin adjustment allows the boom to be adjusted between 4 different lengths. Adjustable Boom Angle - Ratchet screw jack adjusts boom between horizontal position and 45° angle. 360° Rotation - External handle helps rotate the crane 360-degrees at the sleeve bearing. Adjustable Under Load -The OZ Compozite Davit Crane has a unique boom that is capable of being adjusted while under load, giving you an infinite range of lift. Corrosion-resistant. Metal components mil-spec zinc plated. Hand winch accepts two different cable termination points: swaged ball fitting or bare-end cable. Quick connect winch handle with power drill adapter included. Smart Latch technology at boom/mast connection. DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately). No tools required for installation.
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
