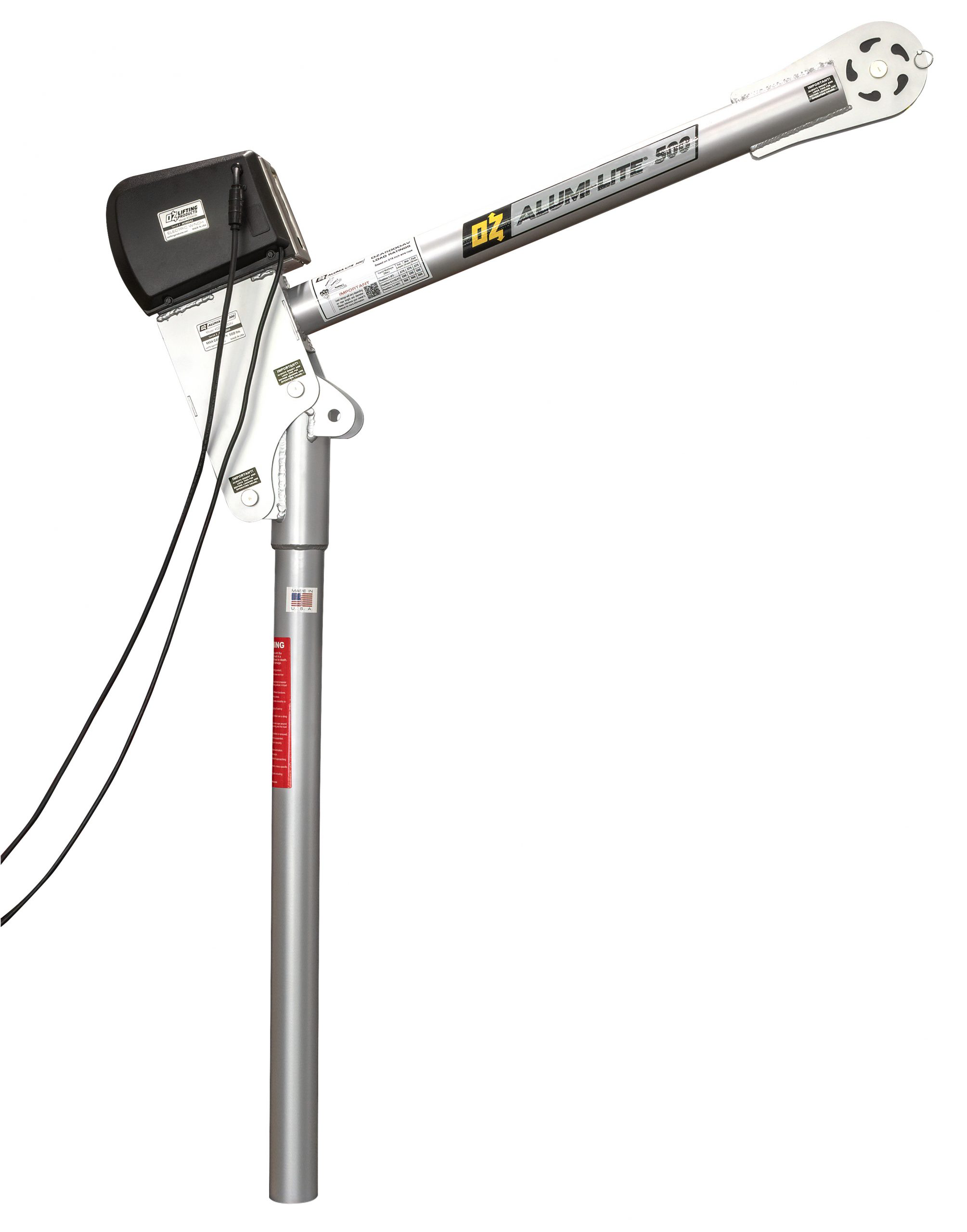

OZ Alumi-Lite Davit Crane, 500 lb. Capacity, 110V AC Electric Winch, Part No OZA500DAV-ACW

Manufacturer: OZ Lifting Products
Availability: In stock
SKU: OZA500DAV-ACW
Manufacturer part number: OZA500DAV-ACW
Lead Time (subject to change, call to verify): typically ships in 20-25 business days
*
$2,033.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Model: OZA500DAV-ACW
  • Capacity: 500 lbs.

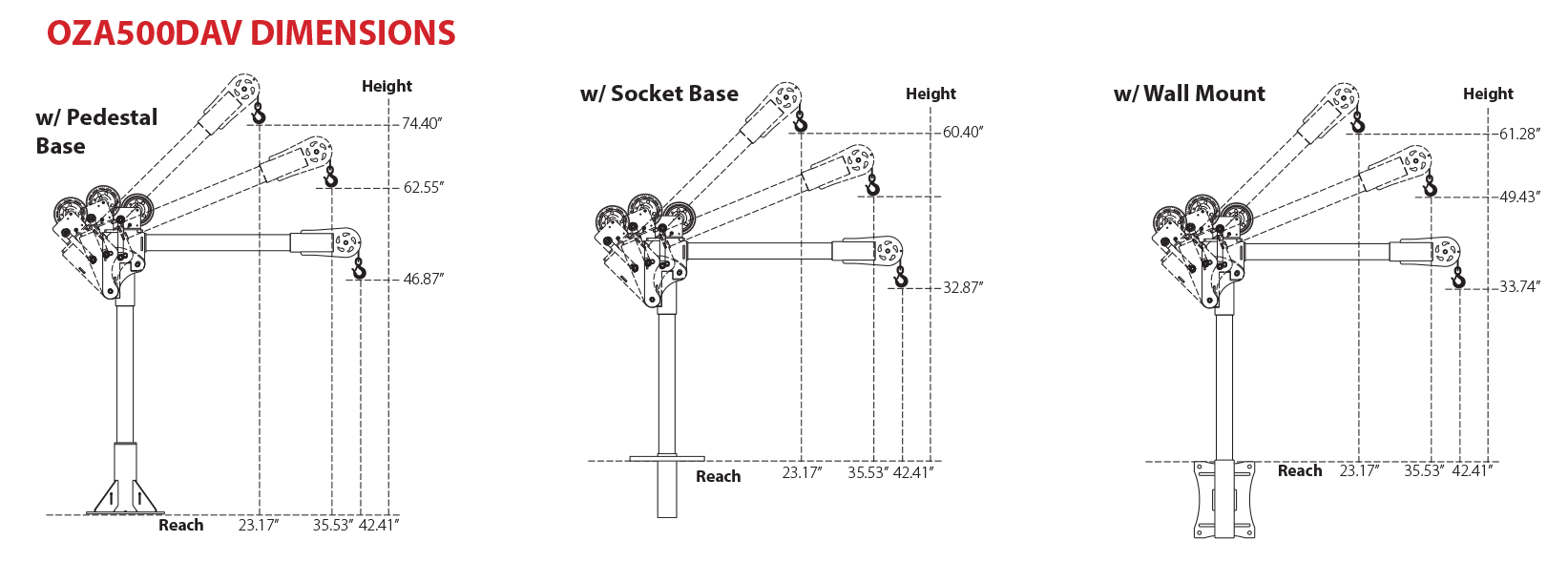

  • Boom Reach Horizontal: 42.41 in.
  • Boom Reach 45° Angle: 23.17 in.

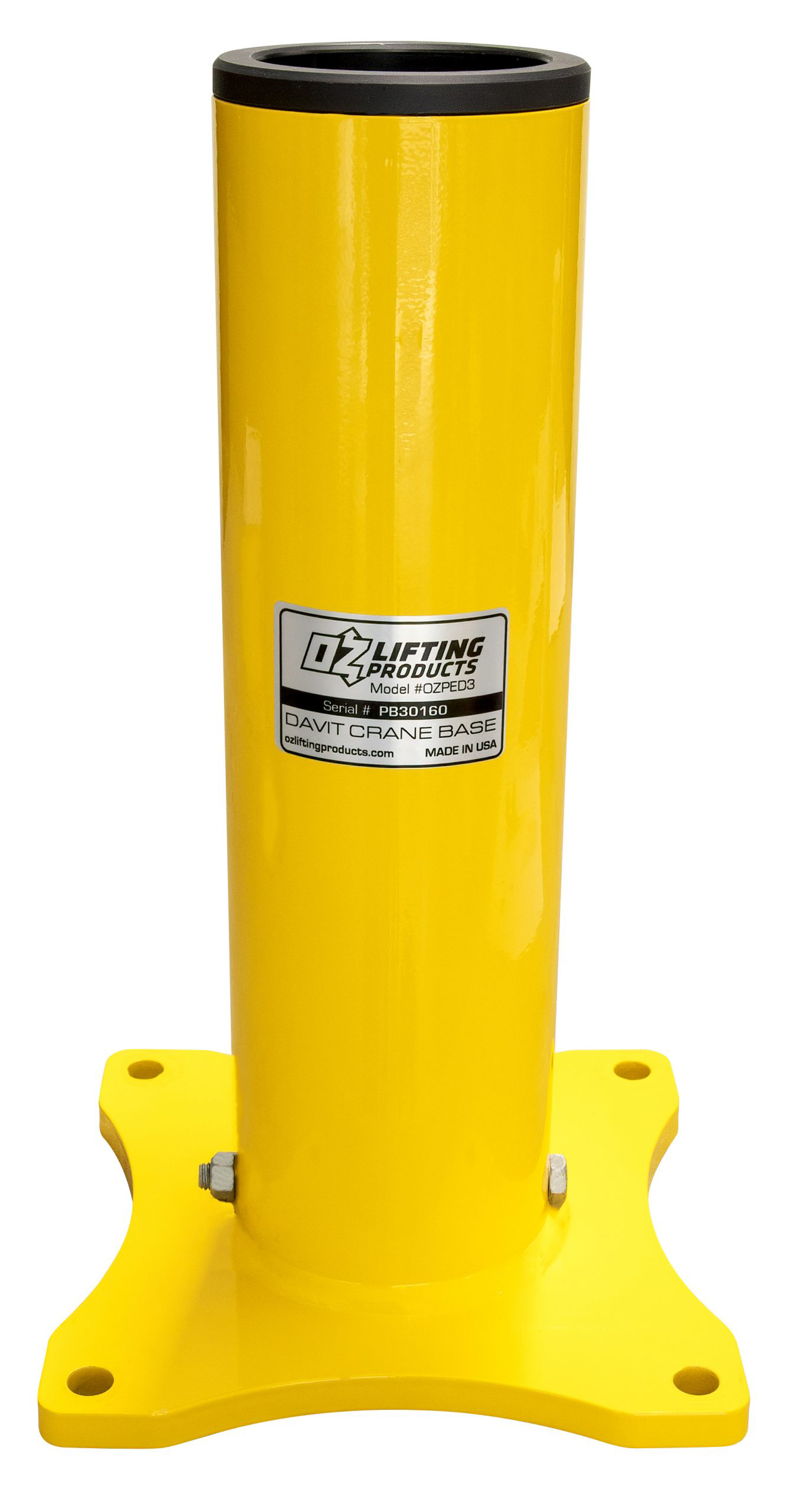

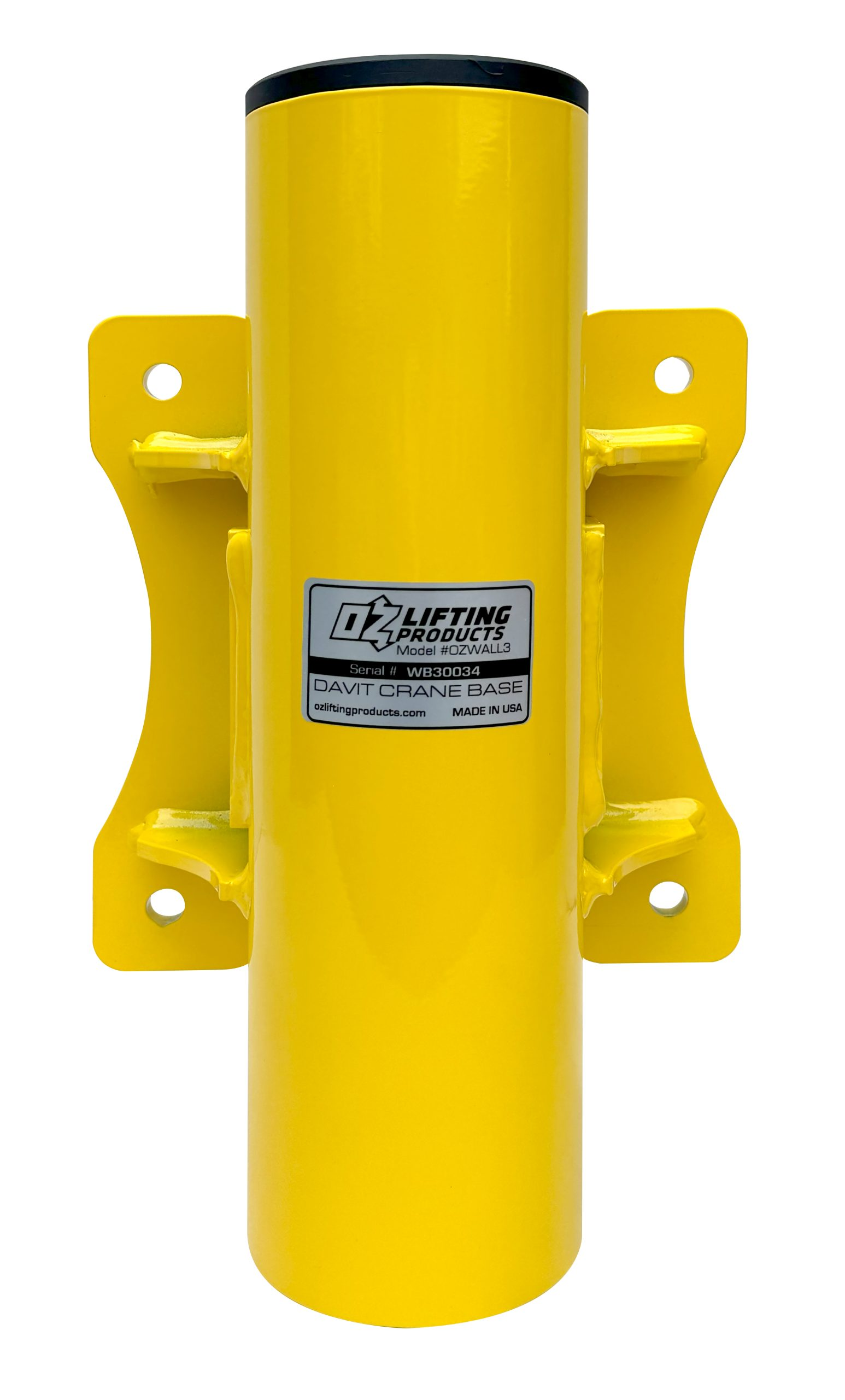

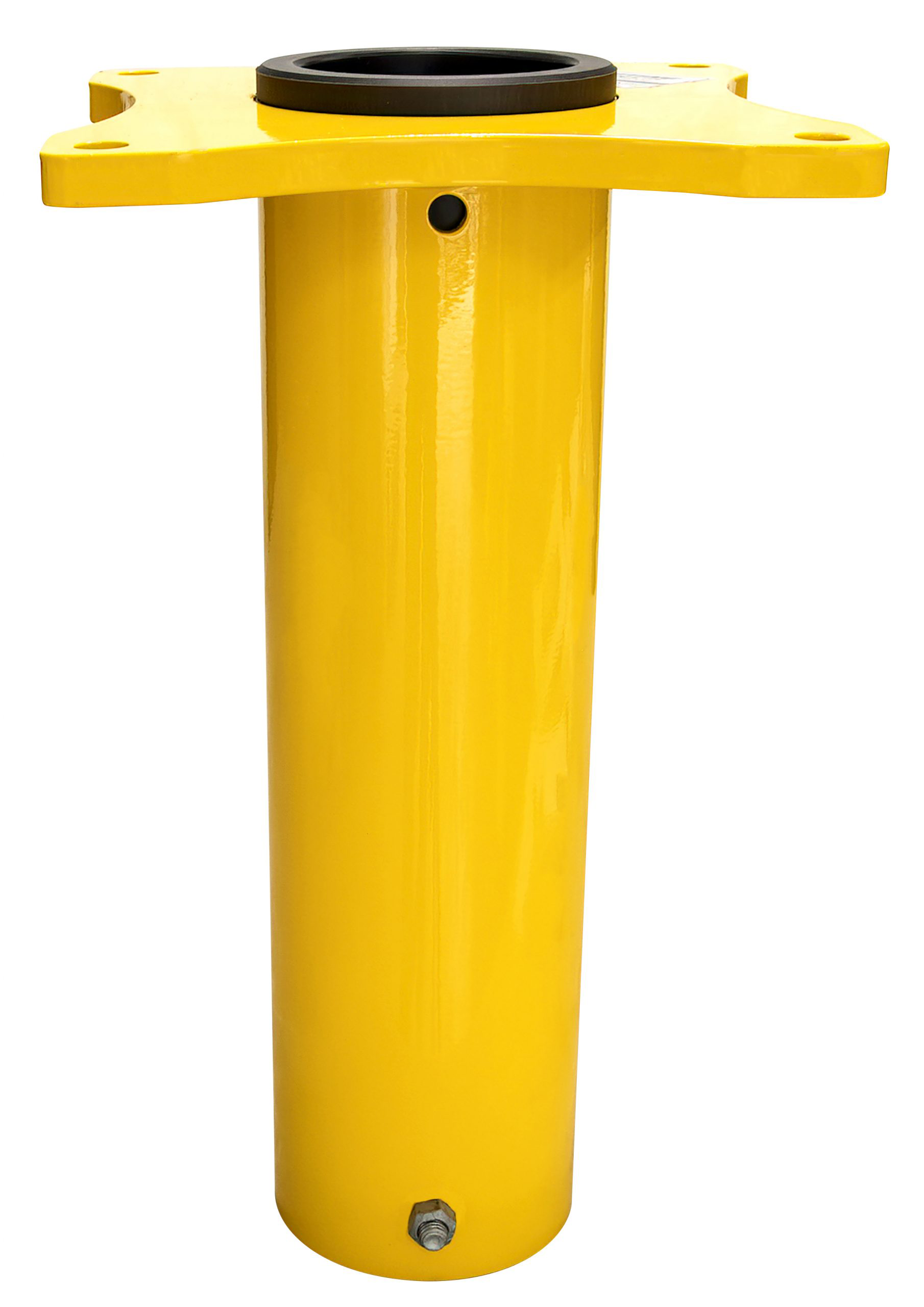

  • Lifting Height Horizontal: 32.87 in. (Socket Base) / 46.87 in. (Pedestal Base) / 33.74 in. (Wall Mount)
  • Lifting Height 45° Angle: 60.40 in. (Socket Base) / 74.40 in. (Pedestal Base) / 61.28 in. (Wall Mount)
  • OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries.
  • Aluminum Construction - Lightweight, aerospace-grade aluminum construction.
  • Truly Portable Design - Can be completely assembled and disassembled without tools, with a total weight of less than 40 lbs (without winch and cable).
  • 3 Different Boom Height Adjustments - Easy-to-use pin adjustment allows the boom to be adjusted between 4 different positions from horizontal to 45° angle.
  • 360-degree rotation of crane on sleeve bearing.
  • Durable powder coat finish.
  • DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately).
Warranty2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
