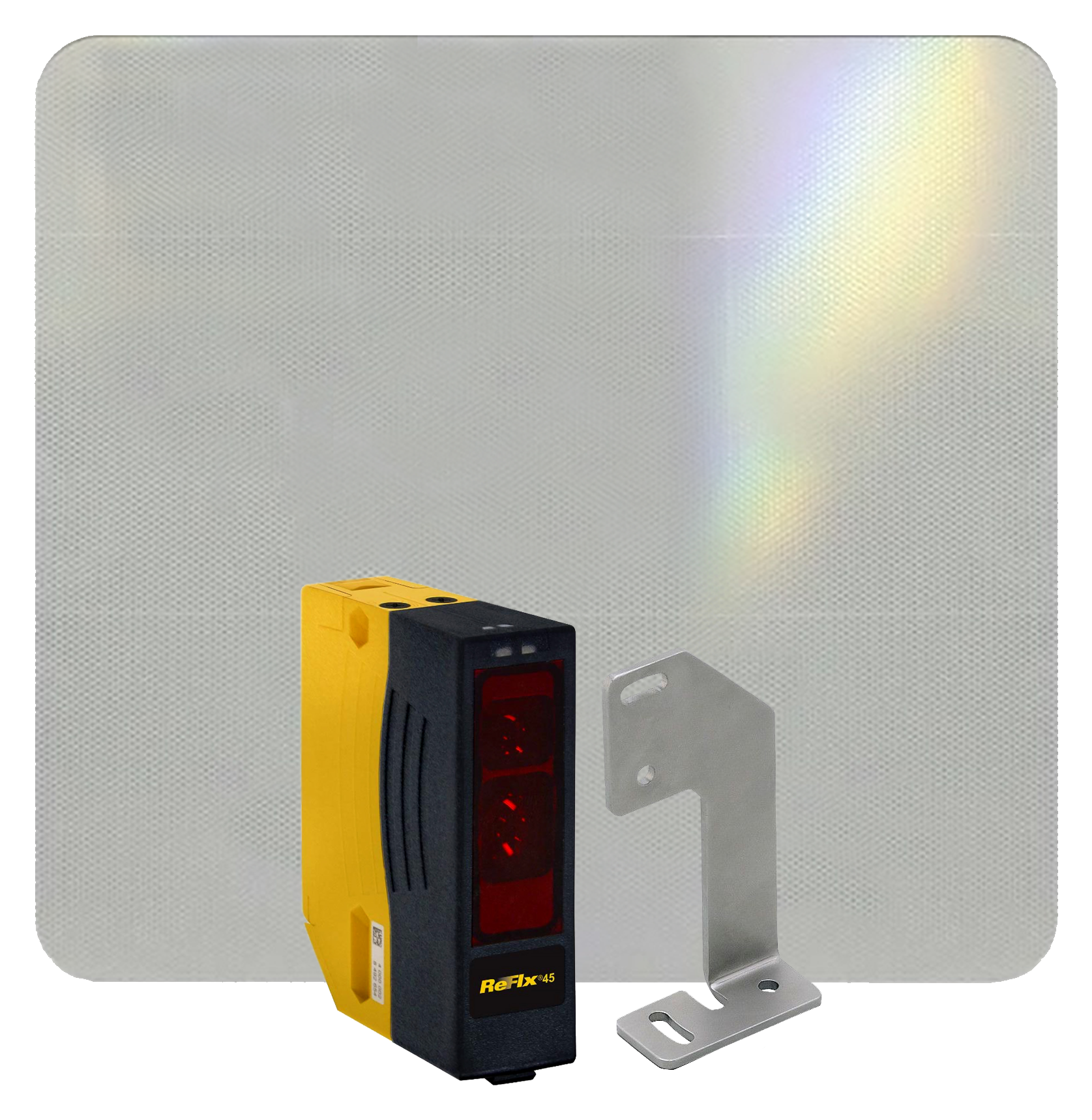

Magnetek ReFlx 45 Crane Anti-Collision System with Std Bracket/Rail Mounted Reflector, REFLX45-DIN

Manufacturer: Magnetek

Availability: In stock

SKU: REFLX45-DIN

Manufacturer part number: REFLX45-DIN

Lead Time (subject to change, call to verify): typically ships in 2-3 business days

ReFlex 45 Cable (3 conductor, 18 gauge) *

Crane Application *

Single stop action only. Prevents crane-to-crane or crane-to-end-stop collisions.

Includes *

$255.00

Qty:

Documents, Drawings, and Manuals

Brochure

Magnetek Crane Anti-Collision System Brochure

Manual

Magnetek ReFlx 45 Crane Anti-Collision System Manual

Bulletin

Products Specifications

Attribute name	Attribute value
Features	The ReFlx 45 prevents crane-to-crane or crane-to-end-stop collisions. Avoiding collisions results in reduced maintenance costs and increased operator safety. This system is ideal for use with all types of cranes with adjustable frequency drives, soft starters, or contactor controls. Ideal for a single stop action Cost-effective system 3-45 foot detection range* (*Runway length may be greater than detection range) IP67 rating for indoor applications only (This system may not operate properly in direct sunlight or inclement weather conditions) Input voltage is rated at 24-240VAC or 12-240VDC LEDs indicating power and range for simple set-up and troubleshooting All electronic components are built into one housing, enabling easy installation on an overhead crane.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
