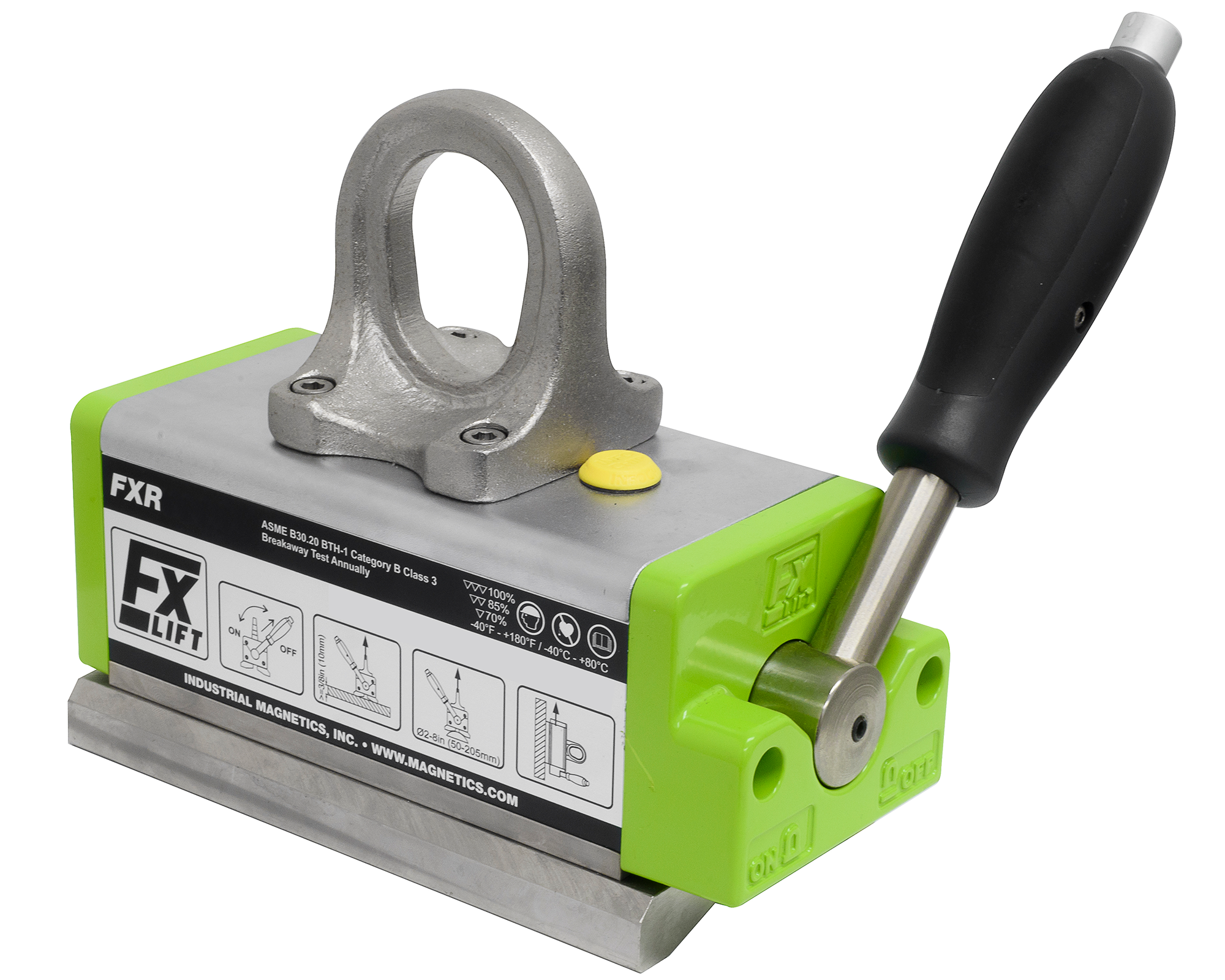

Mag-Mate FXR1650 Round Part Permanent Lifting Magnet, 1,650 lb Capacity, Manual On/Off Control

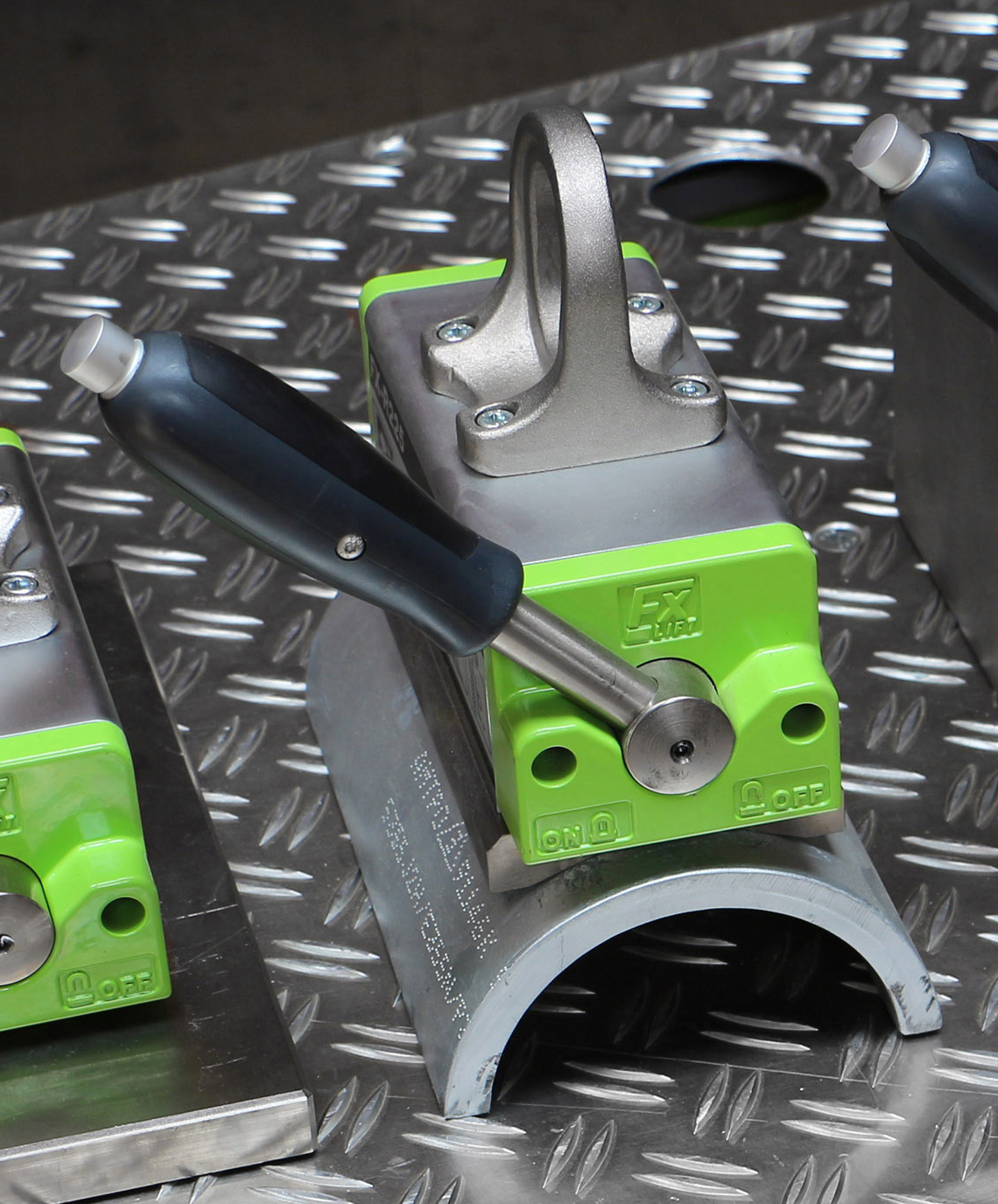

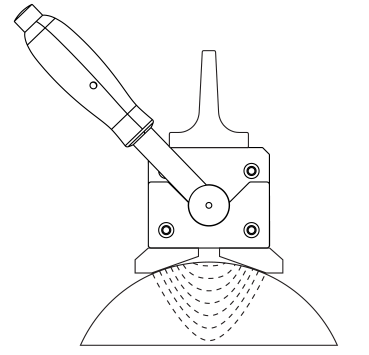

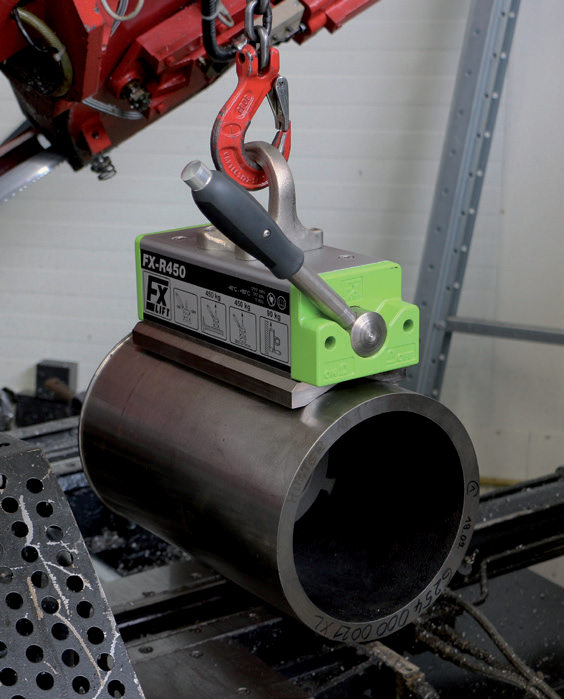

The FXR Round Part Lift Magnet provides reliable lifting for round and curved surfaces, like shafts and pipes. Its deep magnetic field ensures stability and secure handling for round materials.

Manufacturer: Industrial Magnetics, Inc.

Availability: In stock

SKU: FXR1650

Manufacturer part number: FXR1650

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Magnet On/Off Control *

10-1/4 in. Manual Cam Lever

$2,670.00

Qty:

Documents, Drawings, and Manuals

Brochure

Mag-Mate FX Series Permanent Lifting Magnet Brochure

Manual

Mag-Mate FX Series Permanent Lifting Magnet Manual

Diagram

Mag-Mate FX Series Permanent Lifting Magnet Diagram

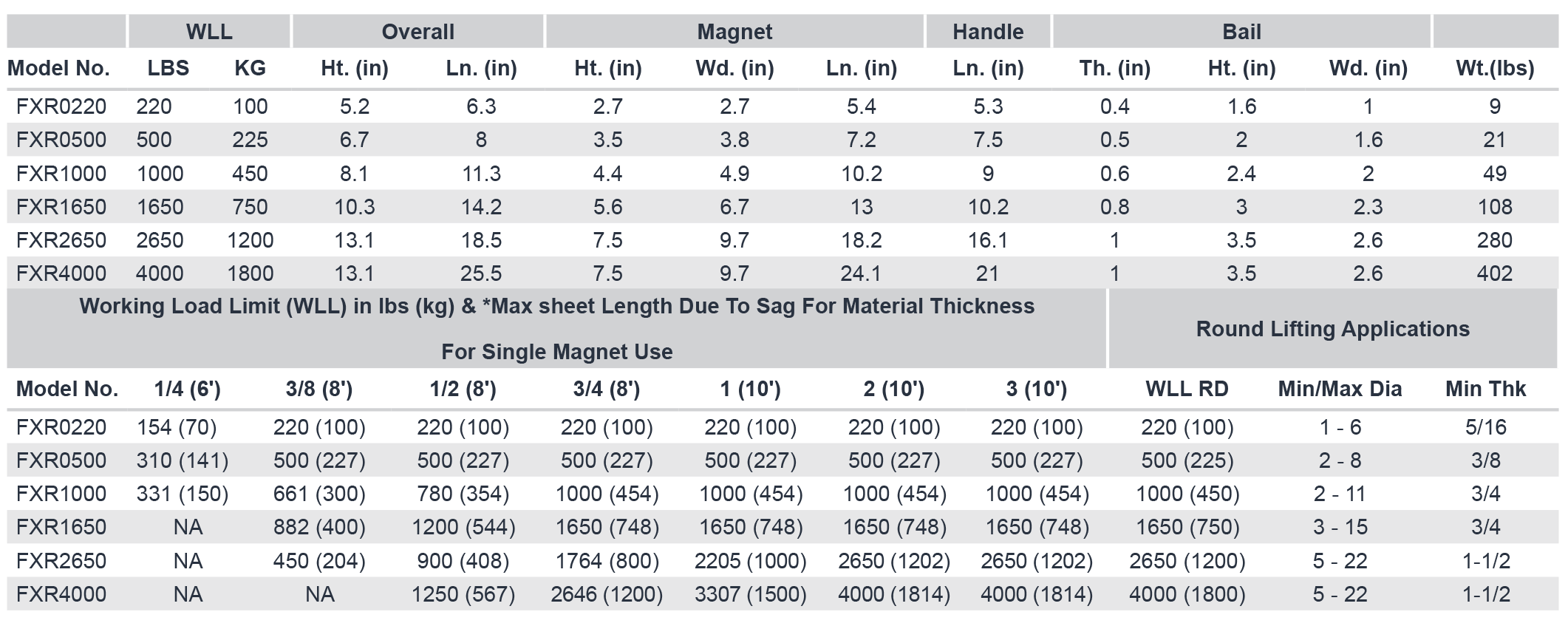

Products Specifications

Attribute name	Attribute value
Features	Model Number: FXR1650 Working Load Limit: 1650 lb / 750 kg Working Load Limit (Round-Horizontal): 1650 lb / 750 kg Overall Dimensions Height: 10-25/64 in. Width: 6-11/16 in. Length: 14-7/32 in. Handle Length: 10-1/4 in. Magnet Dimensions Height: 5-21/32 in. Width: 6-11/16 in. Length: 13-1/16 in. No. of Poles: 2 Bail Opening Thickness: 3/4 in. Height: 3 in. Width: 2-21/64 in. Weight: 108 lb.
Key Benefits	On/Off Rare Earth Permanent Magnet: Easily switch between magnetic states. User-Friendly Handle: Requires only a 90° rotation to operate, locking securely in both on and off positions. Durable Design : Features recessed metal nameplates, eliminating the risk of peeling stickers. Corrosion-Resistant: Plated-magnet surface provides enhanced durability. Heat Resistance: Capable of withstanding temperatures up to 180°F (82°C). Robust Design Factor: Built with a 3:1 design factor for added safety. Compliance Standards: Meets the 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3 requirements.
Applications	Lifting Manual and Hand Lifting Below the Hook Automated and Robotic Lifting
Industries	Fabrication and Welding Appliance Manufacturing Equipment Manufacturing Furniture Manufacturing Component Stamping Welding
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
