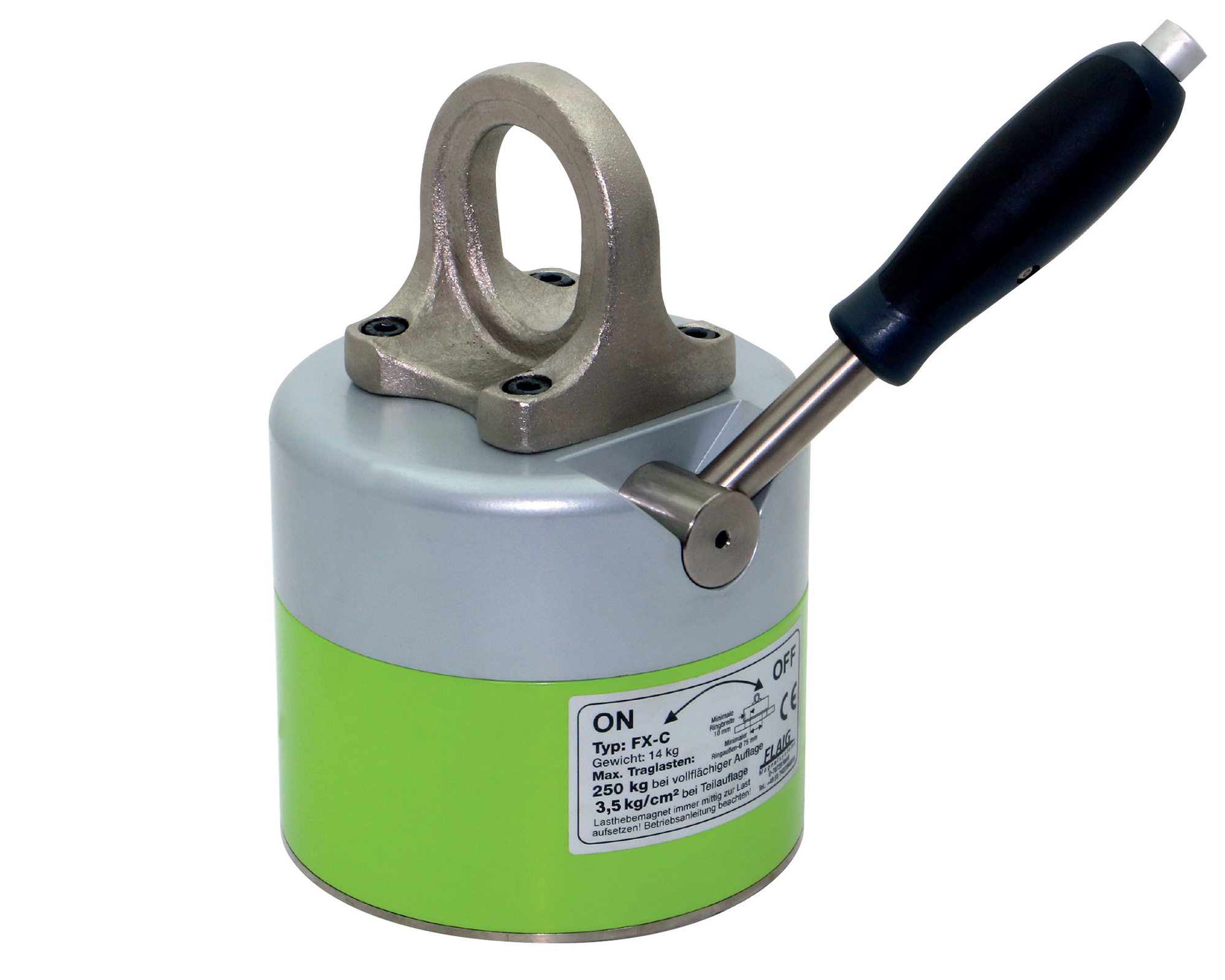

Mag-Mate FXC0990 Cylindrical Part Permanent Lifting Magnet, 990 lb Capacity, Manual On/Off Control

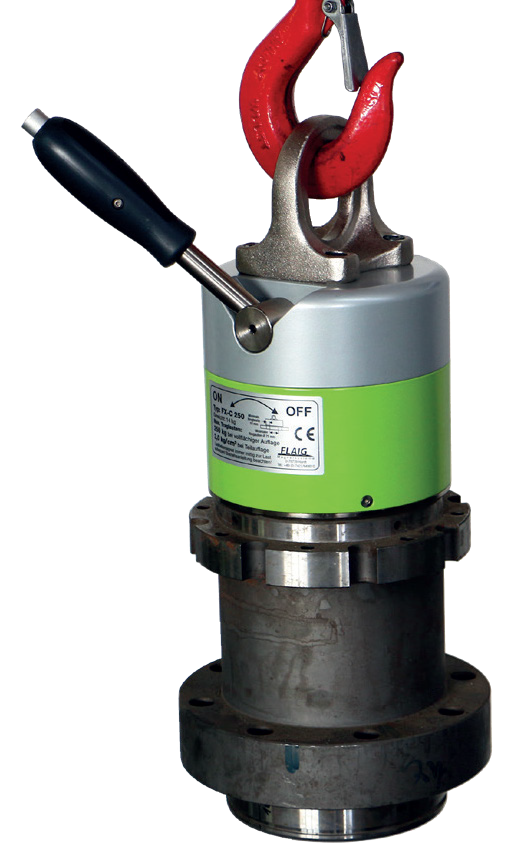

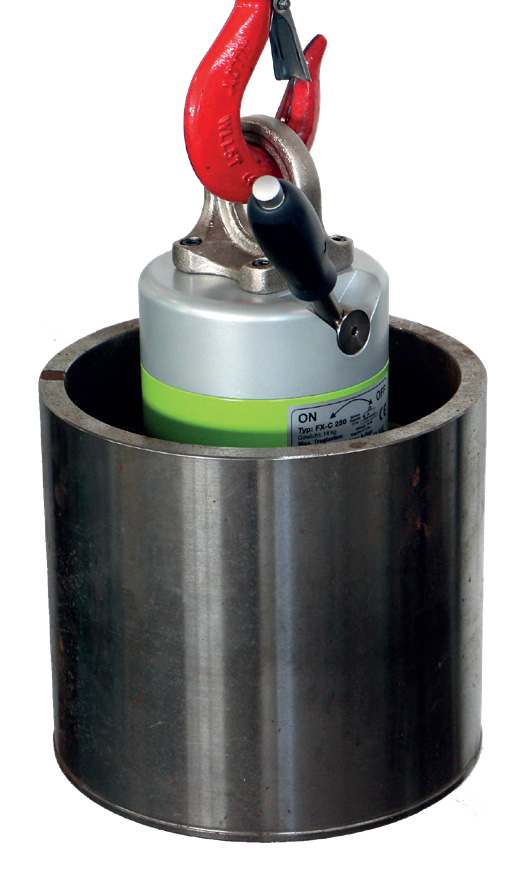

The FXC Cylindrical Part Lift Magnet lifts circular parts with ease, offering secure handling for rings, sleeves, and bearing housings. Its multi-pole magnetic field provides stability in industrial applications.

Manufacturer: Industrial Magnetics, Inc.

Availability: In stock

SKU: FXC0990

Manufacturer part number: FXC0990

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Magnet On/Off Control *

9 in Manual Cam Lever

$3,247.00

Qty:

Documents, Drawings, and Manuals

Brochure

Mag-Mate FX Series Permanent Lifting Magnet Brochure

Manual

Mag-Mate FX Series Permanent Lifting Magnet Manual

Diagram

Mag-Mate FX Series Permanent Lifting Magnet Diagram

Products Specifications

Attribute name	Attribute value

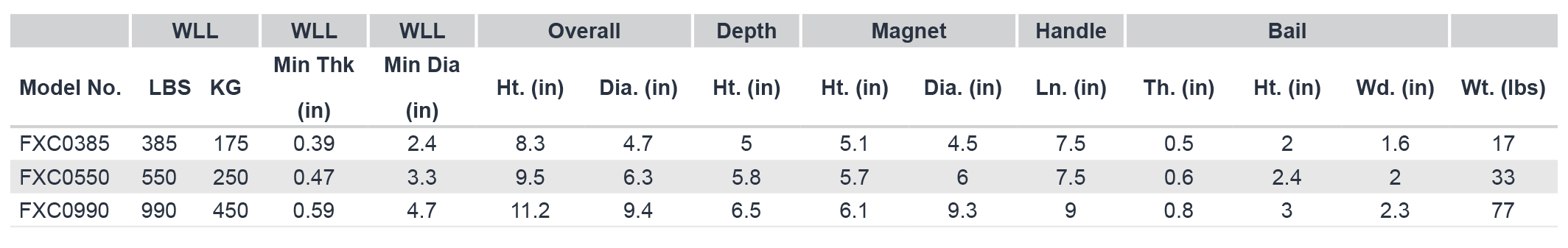

Features	Model Number: FXC0990 Working Load Limit: 990 lb / 450 kg Overall Dimensions Height: 11-11/64 in. Diameter: 9-27/32 in. Handle Length: 9 in. Magnet Dimensions Height: 6-7/16 in. Diameter: 9-27/32 in. Bail Opening Thickness: 3/4 in. Height: 3-1/16 in. Width: 2-11/32 in. Weight: 77 lb.

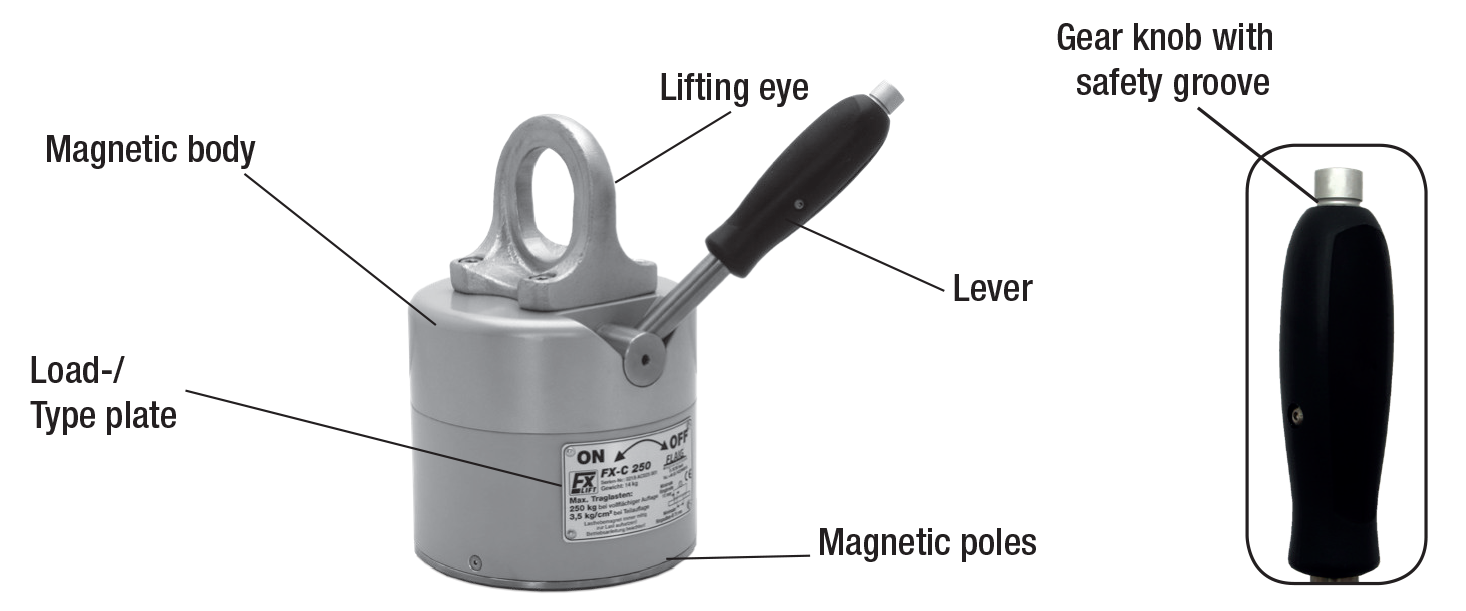

Key Benefits	User-Friendly Handle: Requires only a 90° rotation to operate, locking securely in both on and off positions. Durable Construction: Equipped with metal nameplates and a corrosion-resistant plated magnet surface for enhanced longevity. Robust Design Factor: Built with a 3:1 design factor, ensuring added safety during use. Compliance Standards: Meets the 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3 requirements.
Applications	Lifting Manual and Hand Lifting Below the Hook Automated and Robotic Lifting
Industries	Fabrication and Welding Appliance Manufacturing Equipment Manufacturing Furniture Manufacturing Component Stamping Welding
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
