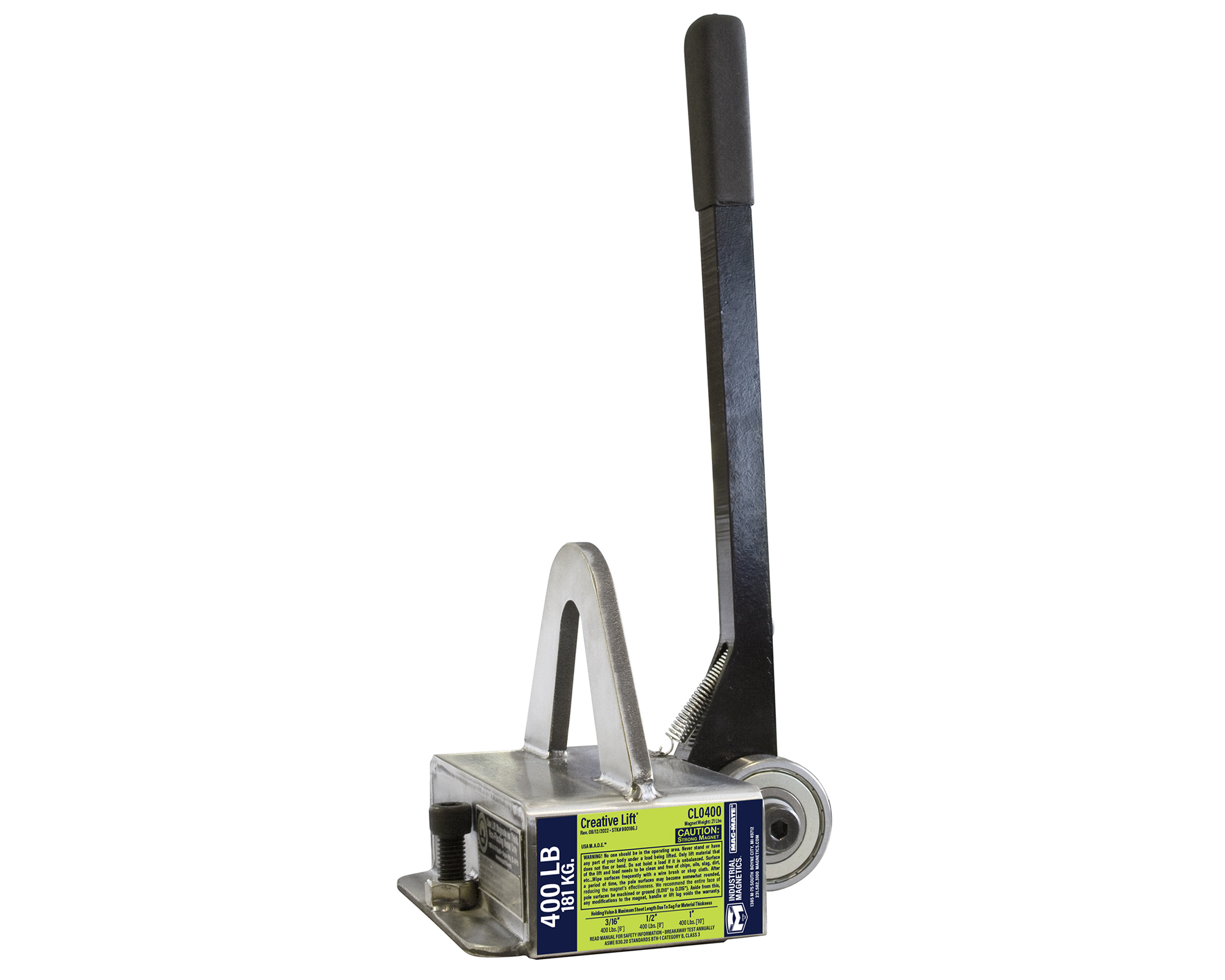

Mag-Mate Creative Lift CL0400 Permanent Lifting Magnet, 400 lb Capacity, Manual On/Off Control

The Creative Lift Magnet provides secure lifting for thick steel sheets, featuring a non-marring release and spring-return handle for safety. It's built to handle high-capacity lifts and protect materials from damage.

Manufacturer: Industrial Magnetics, Inc.

Availability: In stock

SKU: CL0400

Manufacturer part number: CL0400

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Magnet On/Off Control *

16 in. Manual Cam Lever

$505.00

Qty:

Documents, Drawings, and Manuals

Brochure

Mag-Mate Permanent Lifting Magnets Brochure

Manual

Mag-Mate CreativeLift Permanent Lifting Magnet Manual

Products Specifications

Attribute name	Attribute value
Features	Model Number: CL0400 Working Load Limit: 400 lb / 181 kg Overall Dimensions Height: 6-3/4 in. Width: 7-1/4 in. Length: 7-3/4 in. Handle Length: 16 in. Magnet Dimensions Height: 2-1/2 in. Width: 6-1/2 in. Length: 4 in. No. of Poles: 4 Bail Opening Thickness: 3/8 in. Height: 2-7/8 in. Width: 3 in. Weight: 26 lb.
Key Benefits	Non-Marring Roller Cam Release: Easily releases parts without gouging valuable materials. Spring-Return Handle: Enhances convenience during operation. Minimal Torque Required: Allows for easier load release. "Jack Screw" Secondary Release: Provides an additional safety feature. Clear Lift Capacity Indication: Ensures safe handling practices. Durable Stainless Steel Casing: Built to withstand tough industrial conditions. Heat Resistant: Effective at temperatures up to 300°F (148°C). 3:1 Design Factor: Offers a reliable safety margin for various lifting tasks. ASME B30.20 BTH-1 Design Category B, Service Class 3: Meets industry standards for safety and reliability.
Applications	Lifting Manual and Hand Lifting Below the Hook
Industries	Fabrication and Welding Steel Production Steel Service Distribution Automotive Manufacturing Equipment Manufacturing Appliance Manufacturing Furniture Manufacturing
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
