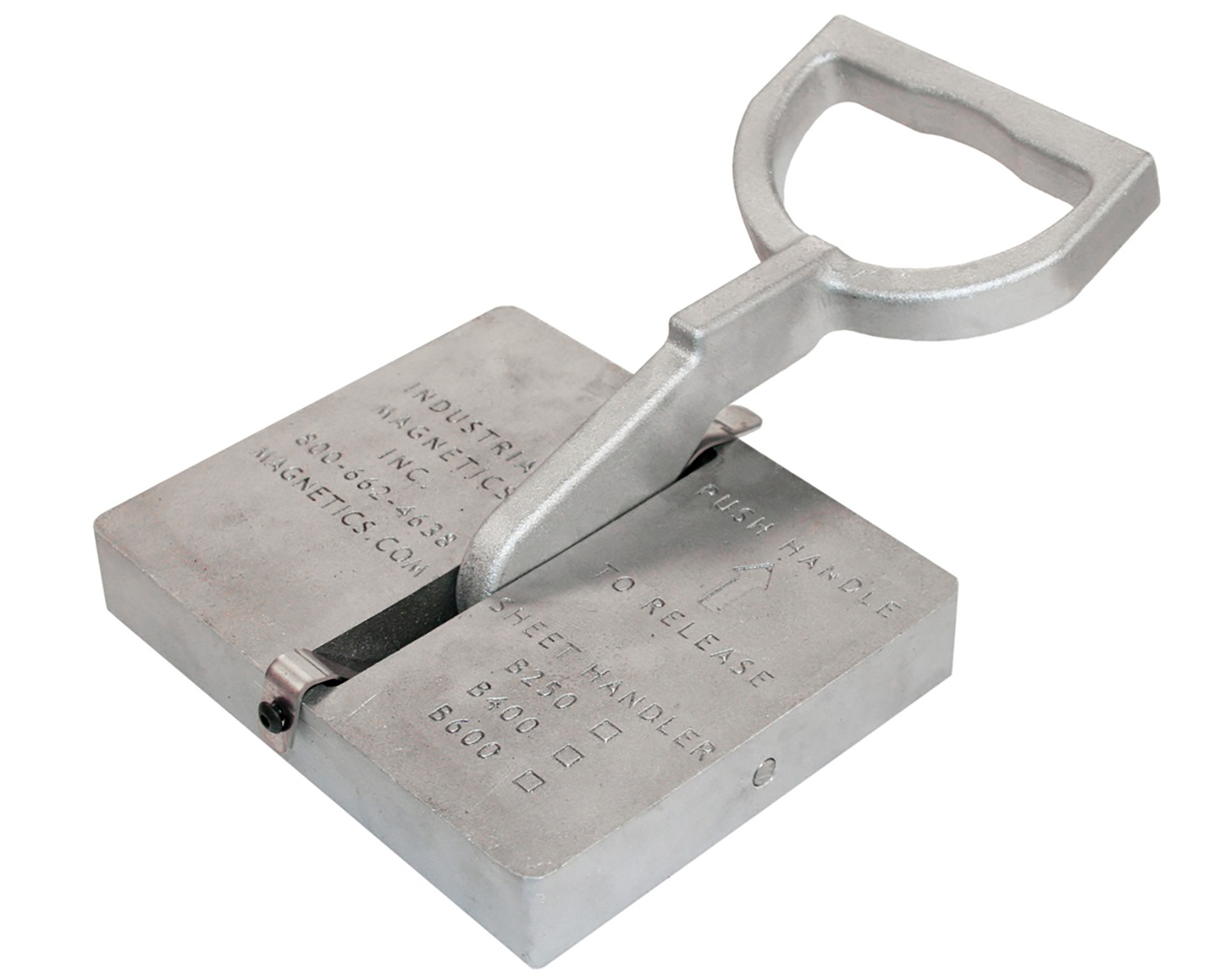

Mag-Mate B400 Magnetic Sheet Handler, 200 lb Capacity

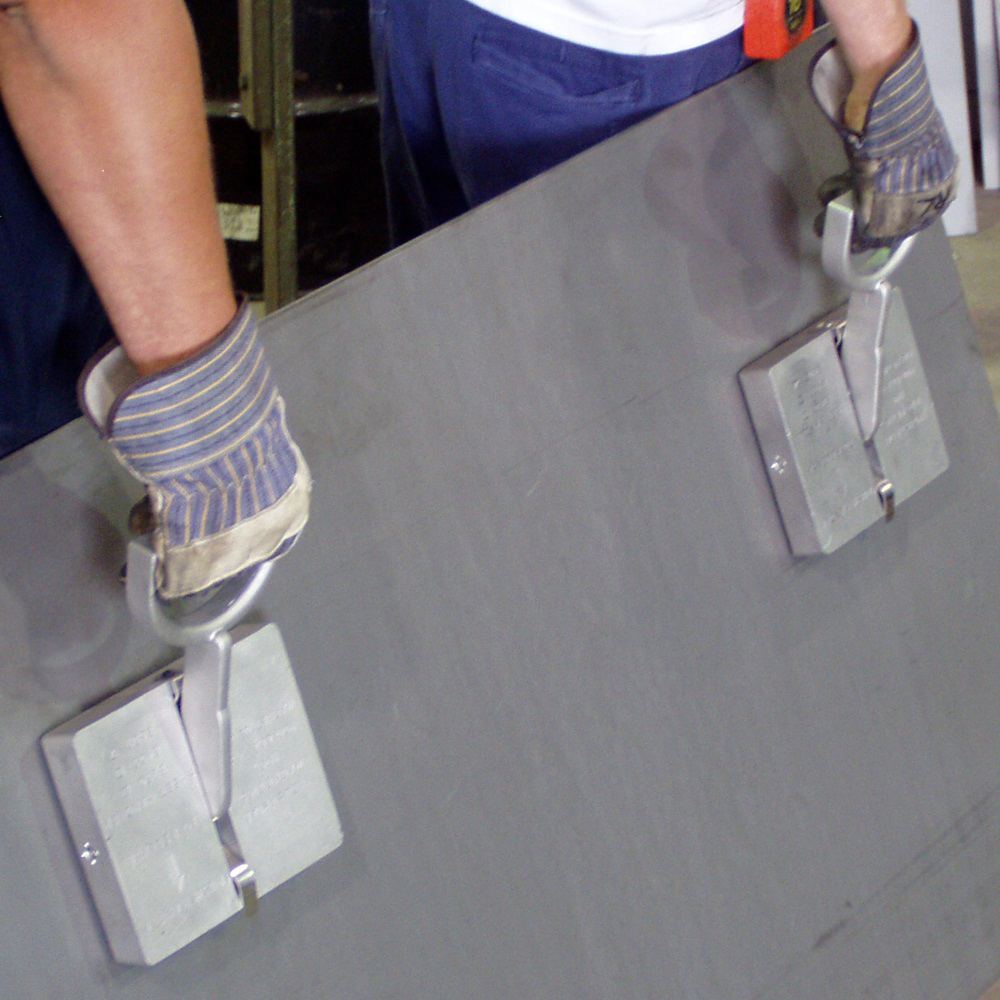

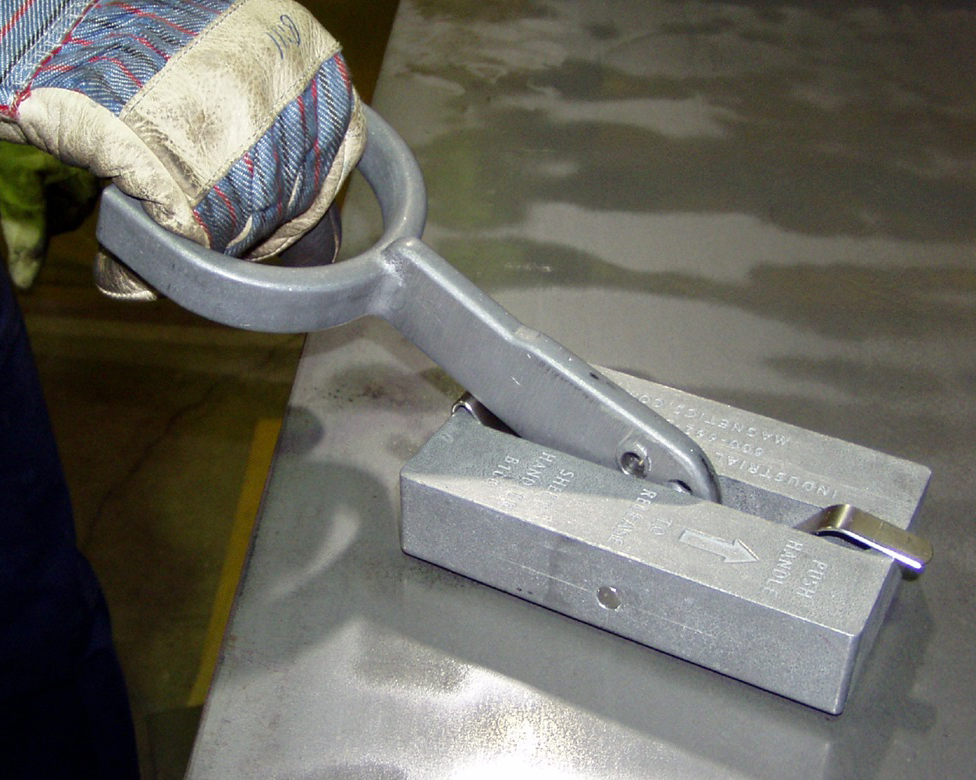

Ergonomic magnetic handler for moving steel sheets and hot parts safely. Designed for one-person operation with protection from cuts and burns.

Availability: In stock

SKU: B400

Manufacturer part number: B400

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Magnet On/Off Control *

$372.00

Qty:

Documents, Drawings, and Manuals

Brochure

Magnetic Material Handling Tools Brochure

Products Specifications

Attribute name	Attribute value

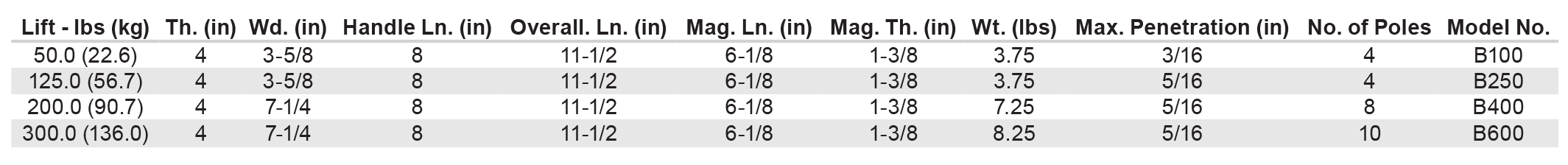

Features	Model Number: B400 Working Load Limit: 200 lb / 90.7 kg Overall Dimensions Thickness: 4 in. Width: 7-1/4 in. Length: 11-1/2 in. Handle Length: 8 in. Magnet Dimensions Thickness: 1-3/8 in. Length: 6-1/8 in. Max Penetration: 5/16 in. No. of Poles: 8 Weight: 7.25 lb.

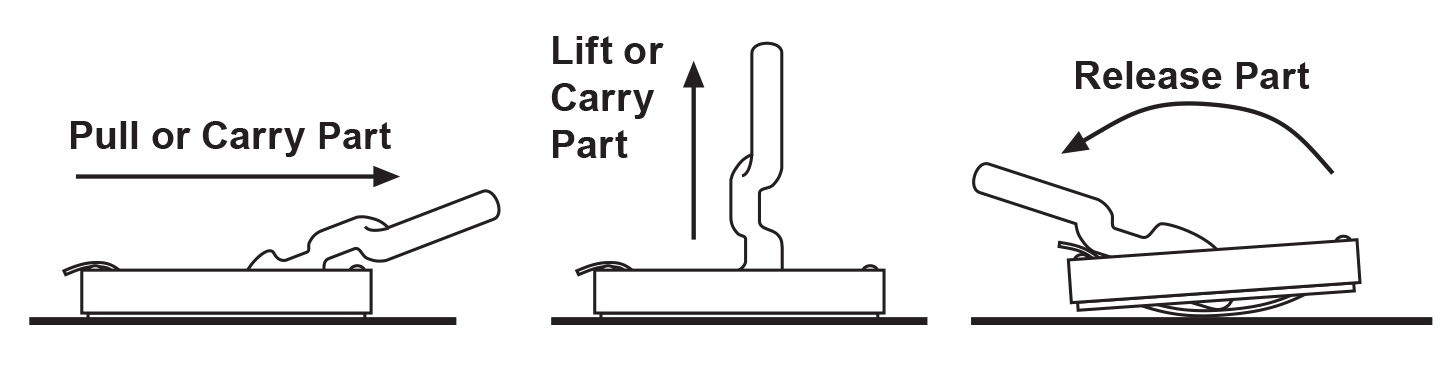

Key Benefits	Versatile Handling: Lift or move sheets, plates, and hot or oily parts with ease. Flexible Orientation: Handle sheets stacked both horizontally and vertically. Injury Prevention: Protect workers from cuts, slivers, nicks, and burns during operation. Boost Productivity: Streamline workflows and improve handling efficiency.
Applications	Manual and Hand Lifting
Industries	Fabrication and Welding Automotive Manufacturing Steel Production Steel Service Distribution
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
