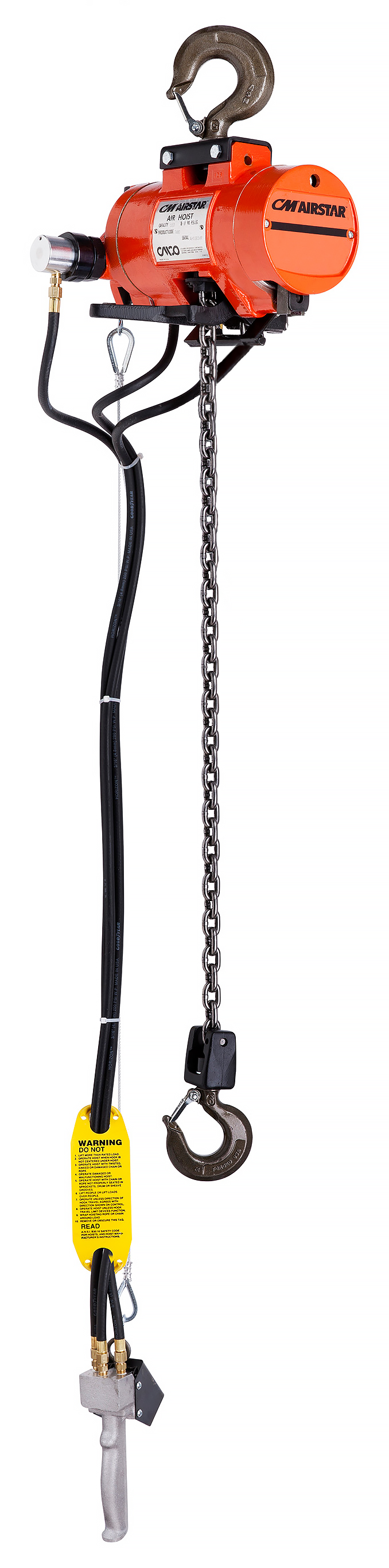

1/2 Ton CM AirStar, Air Chain Hoist, Pendant Throttle, Swivel Hook, Part No 7401D

Availability: In stock

SKU: 7401D

Manufacturer part number: 7401D

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Lift *

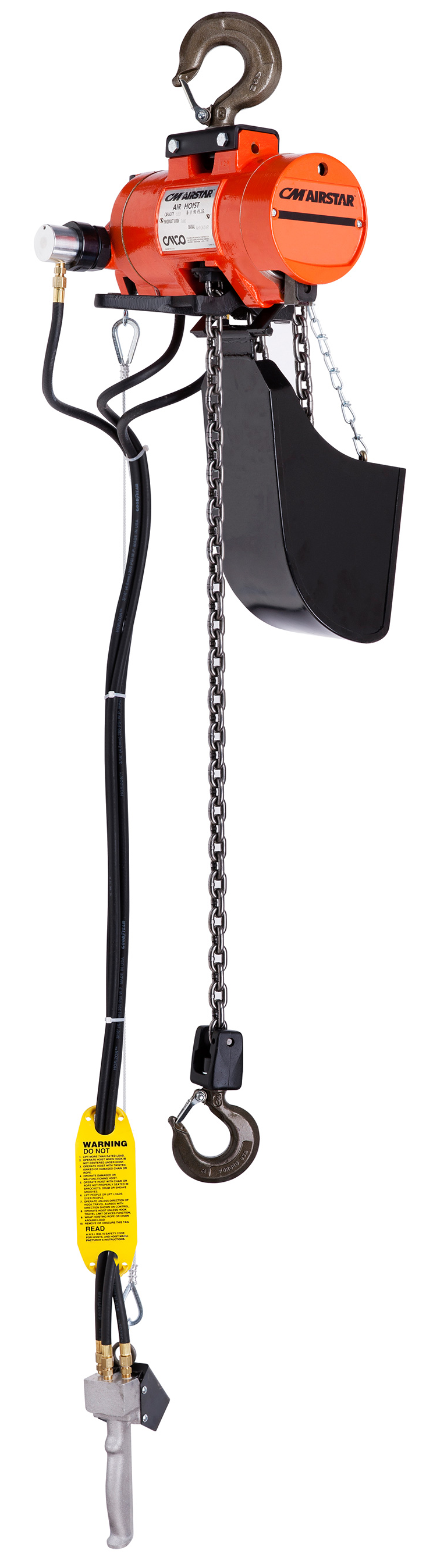

Chain Container *

Suspension *

Pendant Throttle Control *

$4,264.00

Qty:

Documents, Drawings, and Manuals

Specs

CM AirStar Pneumatic Hoist Specs

Manual

CM AirStar Pneumatic Hoist Manual

Products Specifications

Attribute name	Attribute value
Features	Capacity: 1/2 Ton (Metric Rated) Headroom: 15 1/4 in. Lifting Speed Max: 45 fpm Lowering Speed Max: 120 fpm Normal Operating Pressure: 90 psi Air Consumption: 48 cubic feet/minute Pendant Drop: 4 ft. less than lift NPTF Air Inlet Size: 3/8 in. Commercial duty air motor for general commercial applications where variable speed pneumatic power is preferable. Positive action, heavy-duty shoe type brake that holds the load. Multi-vane rotary air motor for high torque, smooth operation. Inlet air swivel with built-in strainer provides free hoist movement. Limit stops prevent over-travel in upper and lowering directions. Equa-torque gearing of alloy steel, heat-treated spur gears are accurately machined to provide a close-meshed, compact gear reduction. Tapped exhaust port for cleanroom applications or to add a supplemental muffler in addition to the built-in muffler for even quieter operation. Each hoist is thoroughly inspected and tested to over 125% of rated load prior to shipment.
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
