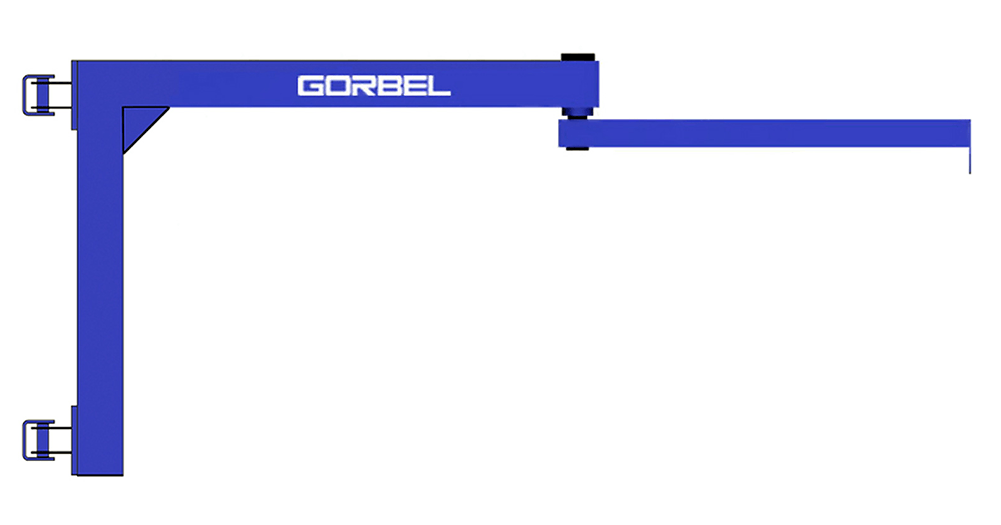

Gorbel Wall Mounted Articulating Jib Crane, 2000 lb. Capacity, 10 ft. Span, Model No. AJ200-B2-2000-10

Manufacturer: Gorbel

Availability: In stock

SKU: AJ200-B2-2000-10

Manufacturer part number: AJ200-B2-2000-10

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Call For Festoon Options - 314-869-7200

$13,022.86

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Articulating Jib Cranes Brochure

Manual

Gorbel Articulating Jib Cranes Manual

Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Products Specifications

Attribute name	Attribute value
Features	Capacity: 2,000 lbs. Span: 10 ft. Bracket Centers: 60 in. Thrust & Pull: 6.1 Kips Overall Deflection Criteria: Span / 200 = 0.6 in. Hoist Allowance: 300 lbs. Primary Boom: Arm Length: 6 ft. 6 in. Pipe Size: 10 in. Coverage: 200° Semi-Circular Rotation Secondary Boom: Arm Length: 3 ft. 6 in. Pipe Size: 7 in. Coverage: 360° Circular Rotation Shipping Weight (Overall Weight): 809 lbs. Perfect for applications that require maneuvering under obstructions or around obstacles where there is an adequate wall/column to support the crane. Can be used with hook mounted lifting devices (electric, air, or vacuum). All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
