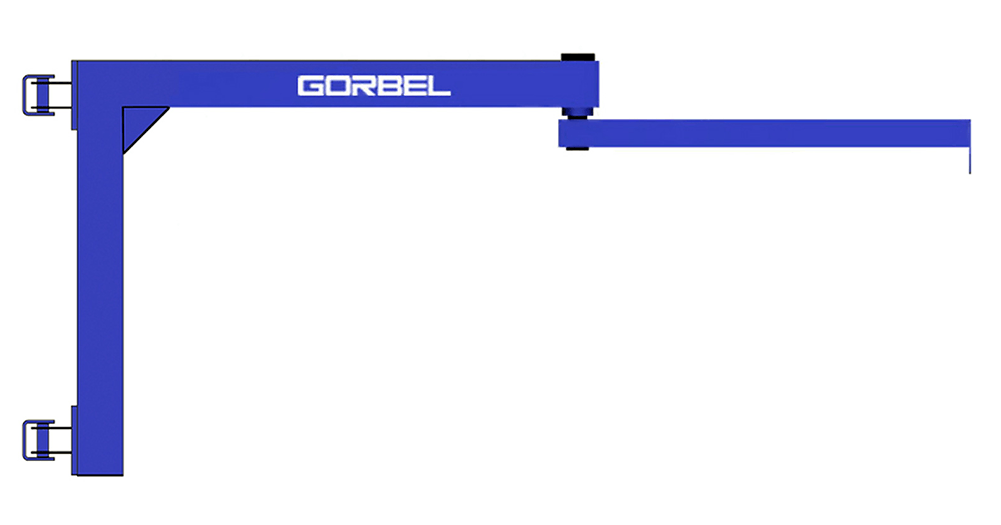

| Features | - Capacity: 1,000 lbs.
- Span: 12 ft.
- Thrust and Pull: 3.89 Kips
- Hoist Allowance: 150 lbs.
- Overall Deflection Criteria: Span / 200 = 0.72 in.
- Coverage: semi-circular
- 200 degree rotation in the primary boom and 360 degree in the secondary boom
- Can be used with hook mounted lifting devices (electric, air, or vacuum)
- Applications: circular coverage areas, moving loads around corners or through doorways, reaching loads into machines, swinging loads under obstructions
- Effortless rotation
- Designed to support tool balancers, air balancers, vacuum lifters, and hoists
- All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
- All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes.
- All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
- All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004)
- All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
- Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
- All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
- Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
|
