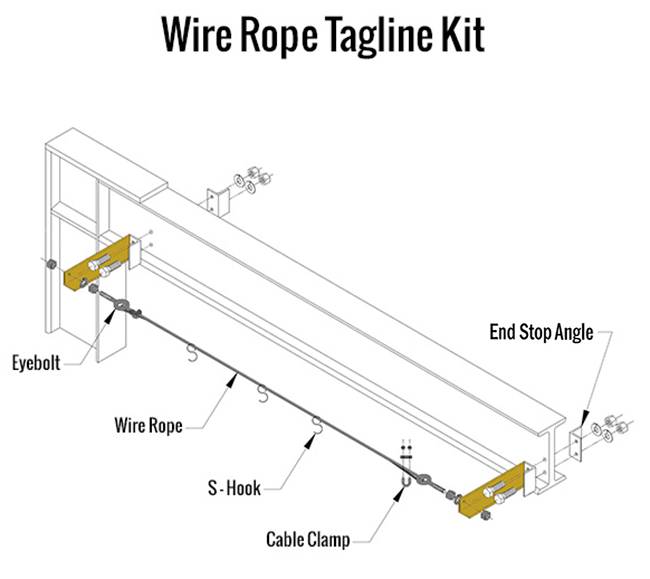

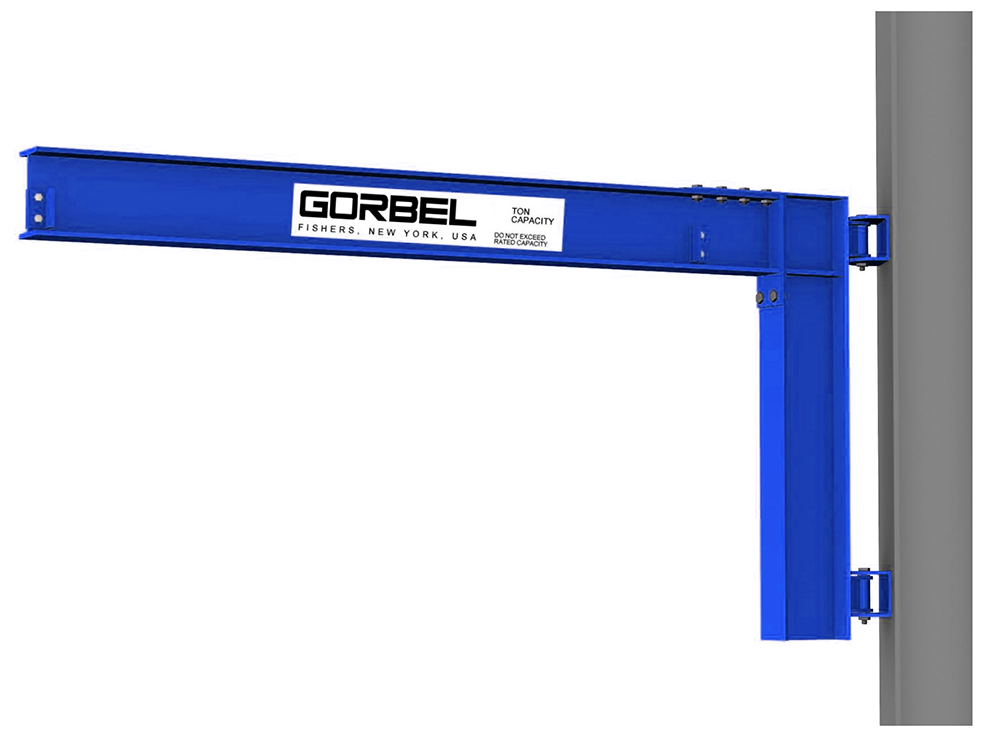

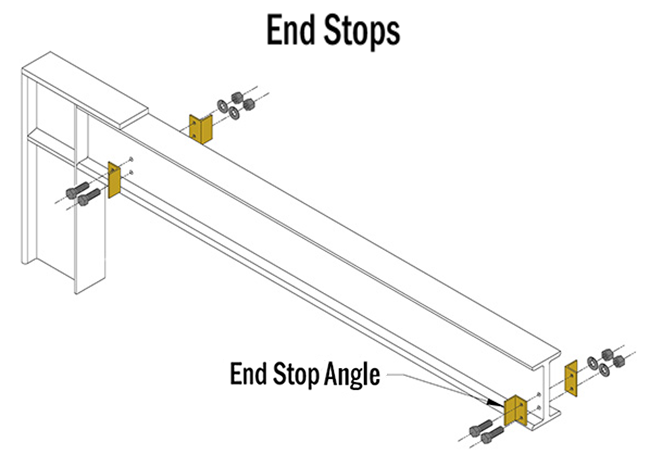

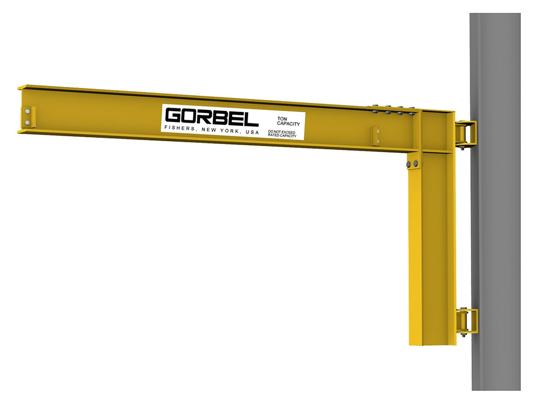

| Features | - Capacity: 5 Ton
- Span: 20 ft.
- Beam Size: W24
- Fitting Size: B5
- Flange Width: 9.02 in.
- Bracket Centers: 9 ft. 6 in.
- Thrust and Pull: 29.77 Kips
- Overturning Moment: 282.8 K-Ft
- Axial Load: 15.36 Kips
- Hoist Allowance: 1,500 lbs.
- Coverage: 200° Semi-Circular Rotation
- Shipping Weight (Overall Weight): 2,966 lbs.
- Ideal for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system.
- The jib has the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction.
- When the bracket center dimension is 6 ft. or less, the mast/boom connection is welded. This provides the most economical means of installation.
- When the bracket center is greater than 6 ft., a bolted mast/boom connection is used, which enables the larger cranes to be shipped disassembled for ease of handling during shipping and installation.
- Grease fittings are provided for easy field lubrication.
- Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
- All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
- All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
|
