Gorbel Wall Bracket I-Beam Jib Crane, 5 Ton Cap., 24 ft. Span, Model No. WB100-G5-24-W12C10

Manufacturer: Gorbel

Availability: In stock

SKU: WB100-G5-24-W12C10

Manufacturer part number: WB100-G5-24-W12C10

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Color *

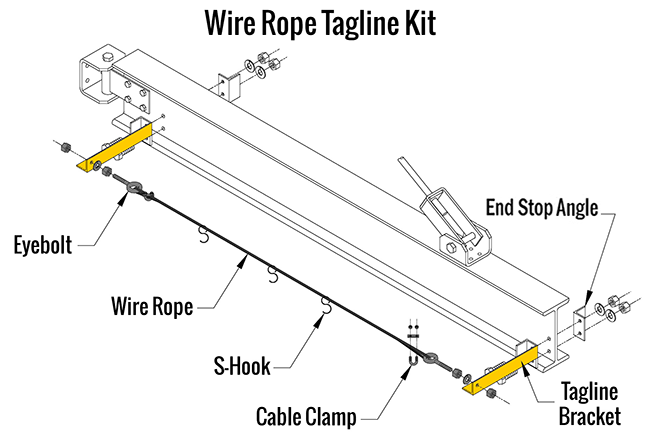

Festoon Conductor Type (Tagline Kit Included) *

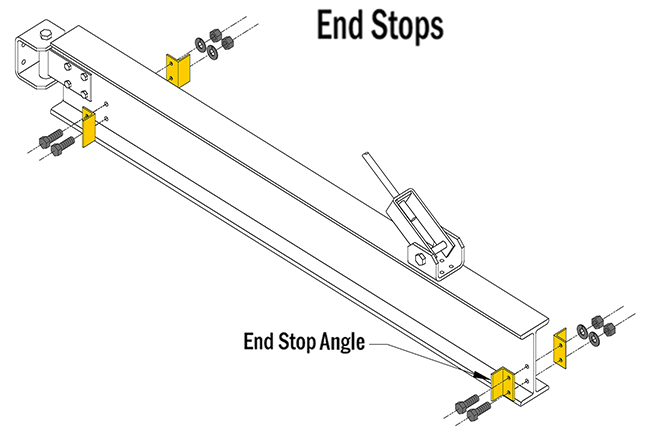

Crane Accessories

$6,653.57

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Wall Mounted Jib Crane Brochure

Manual

Gorbel WB100 I-Beam Jib Crane Manual

Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Products Specifications

Attribute name	Attribute value
Features	Capacity: 5 Ton Span: 24 ft. Beam Size: W12 @ 35 lbs/ft Cap Channel: C10 @ 15.3 lbs/ft Fitting Size: G5 Flange Width: 6.5 in. Bracket Centers: 8 ft. 9 in. Overturning Moment: 332.08 K-Ft Axial Load: 16.199 Kips Thrust and Pull: 37.952 Kips Hoist Allowance: 1,500 lbs. Tie Rod Diameter: 2 in. Tie Rod Pitch: 4.5 unc Tie Rod Length: 20 ft. 9.5 in. Coverage: 200° Semi-Circular Rotation Shipping Weight (Overall Weight): 1,867 lbs. The most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system. Low dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioning. Designed to support tool balancers, air balancers, vacuum lifters, and hoists. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
