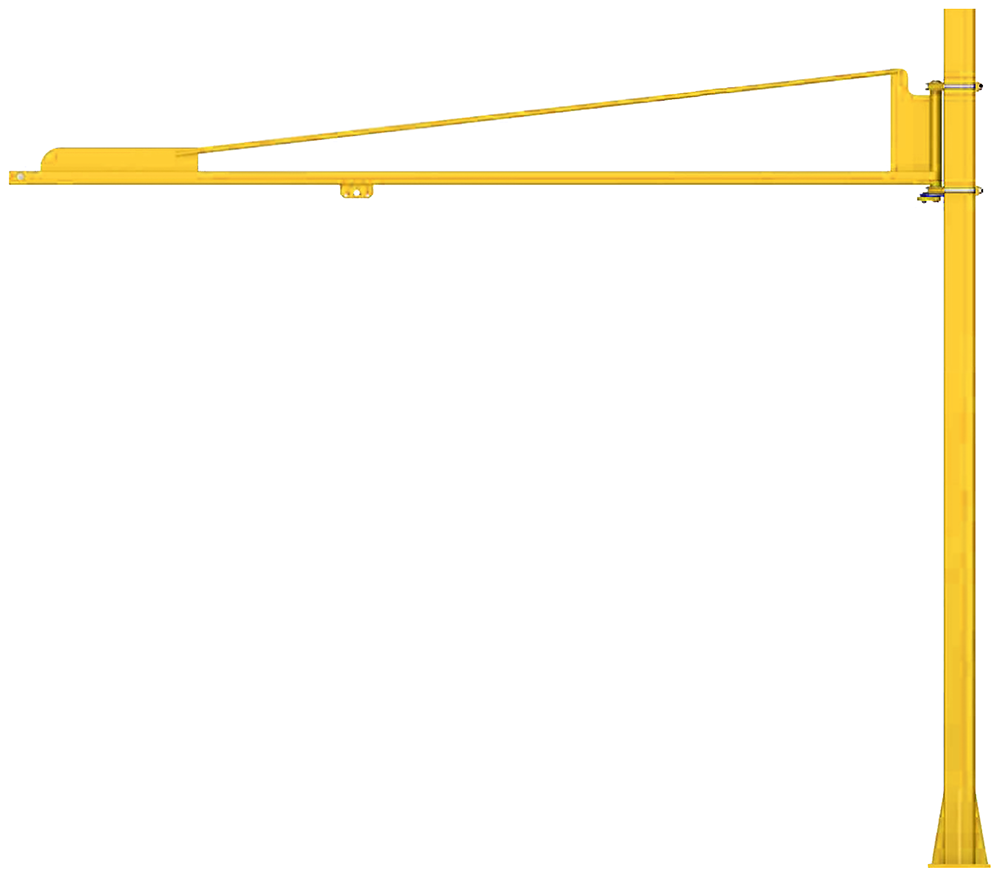

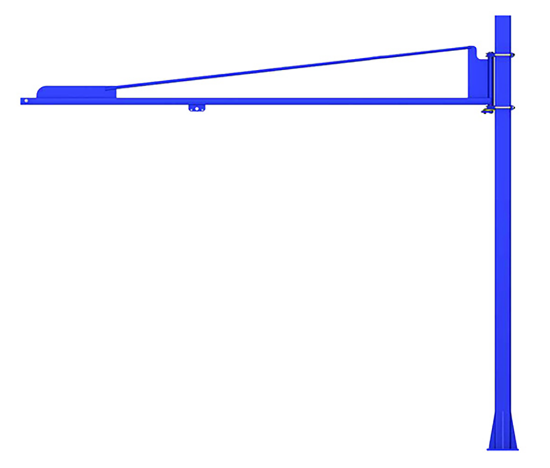

Gorbel Foundationless, Free Standing Tool Solutions Jib Crane, 50 lb. Capacity, 8 ft. HUB, 8 ft. Span, Model No. TSJ50-FS-50-8-8

Manufacturer: Gorbel

Availability: In stock

SKU: TSJ50-FS-50-8-8

Manufacturer part number: TSJ50-FS-50-8-8

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Color *

Festoon Conductor Type *

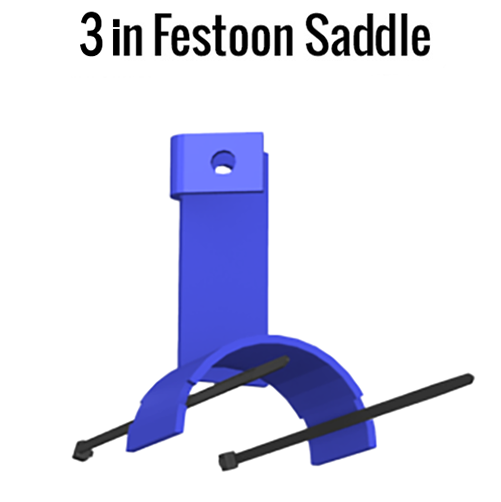

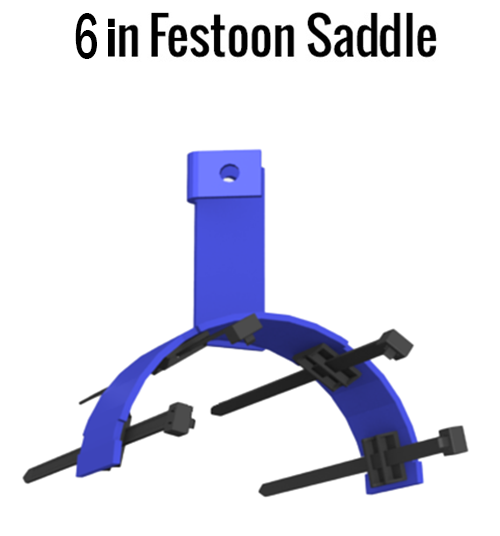

Festoon Carrier *

Hoist Trolley

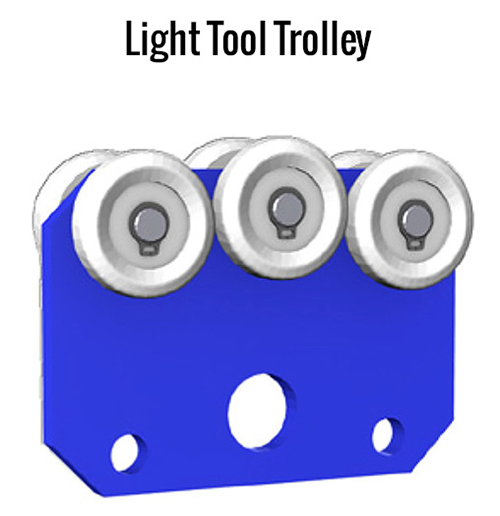

1 Light Tool Trolley Included

Crane Accessories

Extra Touch Up Paint [+$12.17]
Festoon Clamp (1 ea.) [+$28.76]
Festoon Clamps (2 ea.) [+$57.50]
Adjustable Bumper (1 ea.) [+$43.14]
Adjustable Bumpers (2 ea.) [+$86.28]

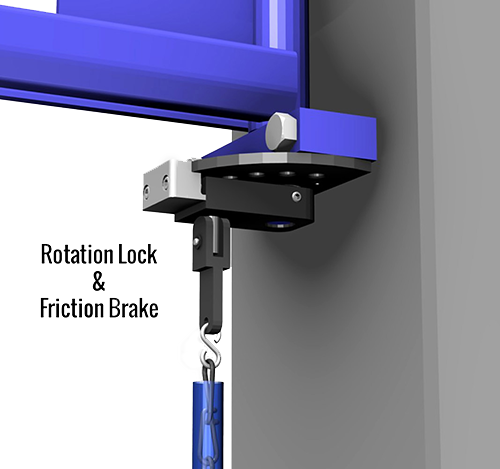

Rotation Lock & Friction Brake (4 ft. chain) [+$279.83]

$1,581.63

Qty:

Documents, Drawings, and Manuals

Brochure

Tool Balancer Jib Cranes Brochure

Manual

Tool Balancer Jib Cranes Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Products Specifications

Attribute name	Attribute value
Features	Model: TSJ50-FS-50-8-8 Capacity: 50 lbs. Span: 8 ft. Height Under Boom (HUB): 8 ft. Overall Height (Crane Only): 9.22 ft. Mast Pipe Size: 4 in. Enclosed Track Series: 250 Overturning Moment: 709.3 lbs-ft Axial Load: 214.49 lbs. Anchor Bolt Load: 655.68 lbs. Anchor Bolt Size: 1/2 in. dia. (4 EA. REQ. - NOT INCLUDED WITH JIB CRANE) Coverage: 180° Semi-Circular Rotation Shipping Weight (Overall Weight): 237 lbs. Lightweight tie rod style ensures easy movement and high performance without giving you more crane than you need for low capacity applications. Designed to be smaller, lighter, and more cost effective for applications with suspended tooling or light duty lifting. Simple 4 bolt installation allows for easy adjustment of the height under boom. Slim 4 inch square mast allows for foundationless installation in small areas where floor space may be limited, such as between machines. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact. Foundationless models are mounted to a 6 inch reinforced floor that require: Centered placement on a square area that is free from cracks, seams, and walls. Chemical anchor bolts that can withstand a minimum of 283.84 pounds of pull out force. Concrete pressure of 3,000 psi that contains wire mesh reinforcement.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
