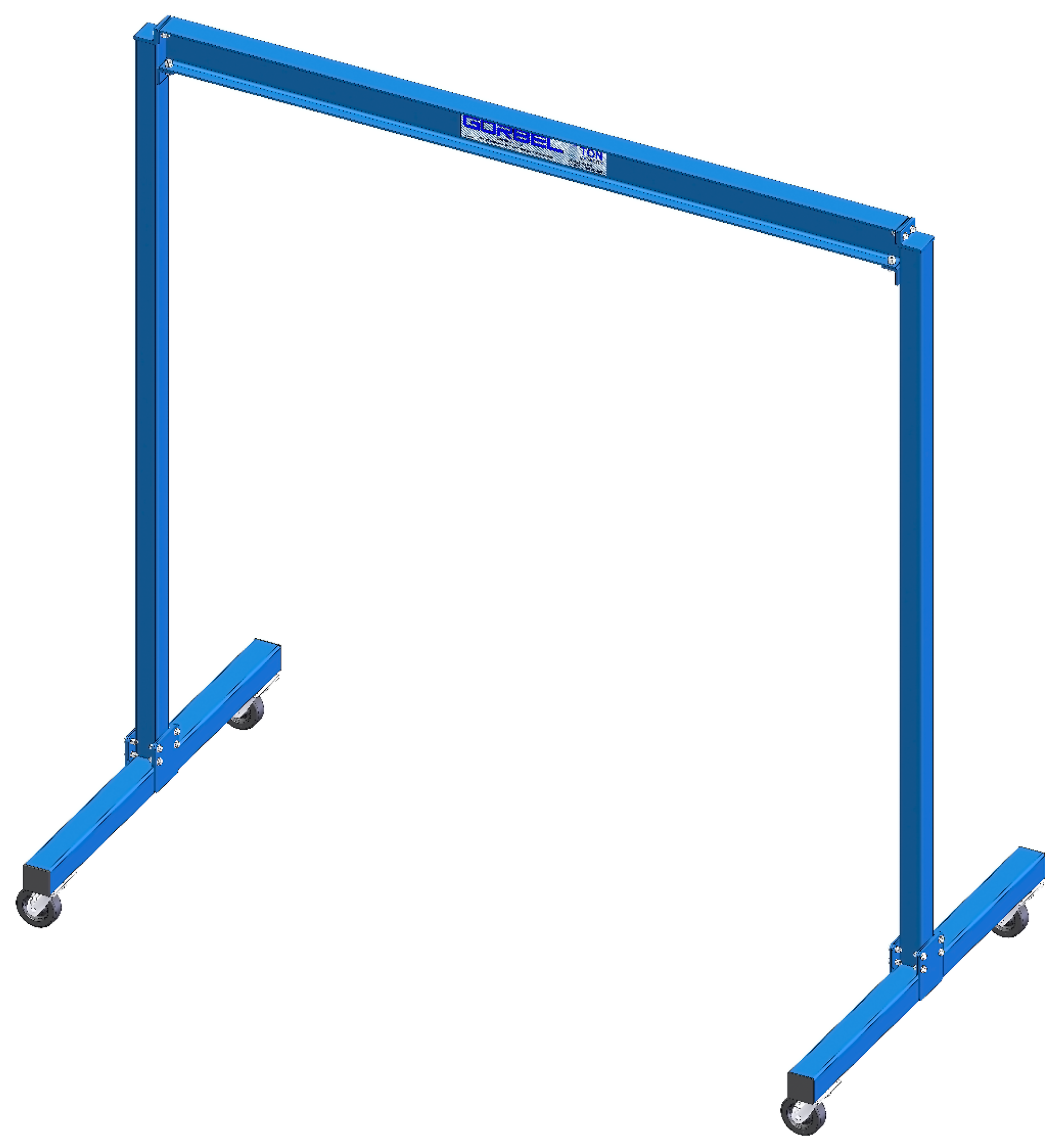

Gorbel Fixed Height Gantry Crane, 3 Ton Capacity, 20 ft. HUB, 25 ft. Span, Model No. FGM-3-20-25

Manufacturer: Gorbel

Availability: In stock

SKU: FGM-3-20-25

Manufacturer part number: FGM-3-20-25

Lead Time (subject to change, call to verify): typically ships in 13-16 business days

$10,680.80

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Gantry Crane Brochure

Manual

Gorbel Gantry Crane Manual

Design Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Products Specifications

Attribute name	Attribute value
Features	Capacity: 3-Ton Span: 25 ft. Height Under Boom (HUB): 20 ft. Overall Height: 21 ft. 7 in. I-Beam Size: W18 @ 50 lbs/ft I-Beam Depth: 18 in. I-Beam Flange Width: 7-1/2 in. Clear Span: 23 ft. 5-5/16 in. Gantry Tread: 7 ft. 9 in. Crane Material: Steel Shipping Weight (Overall Weight): 2,769 lbs. Movable under load. Bolted beam to upright connection ensures safety. Molded phenolic casters are standard and allow for easy movement. Square tubing uprights, knee braces, and channel base provides stable lifting and movement. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact. All Gorbel Fixed Height Gantry Cranes ship Freight Class 250.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
