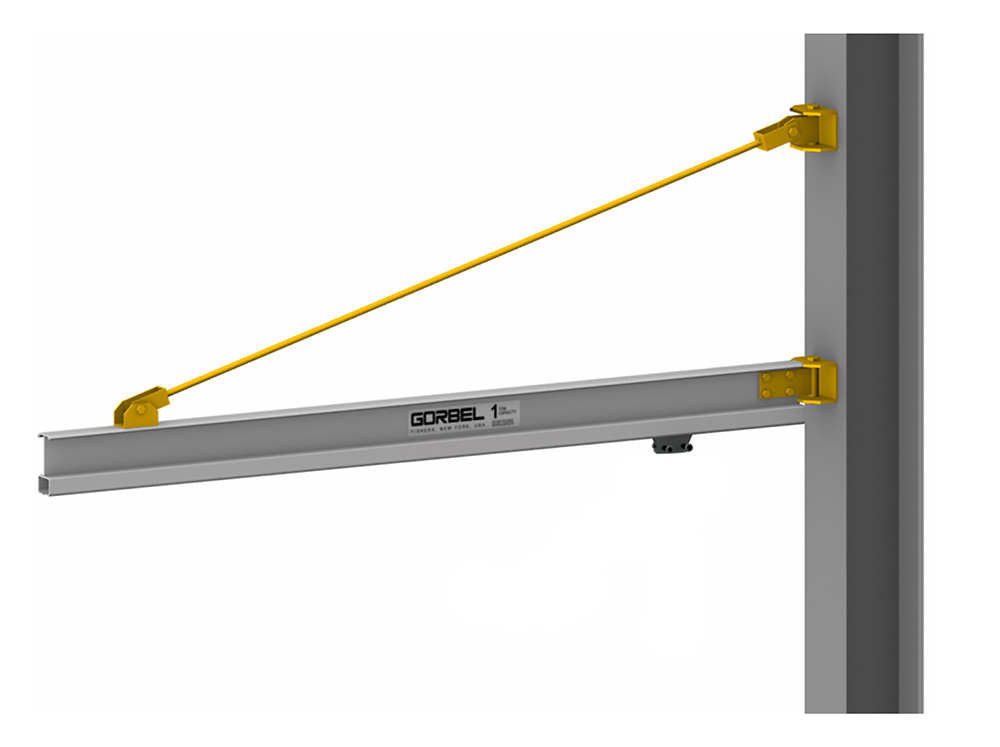

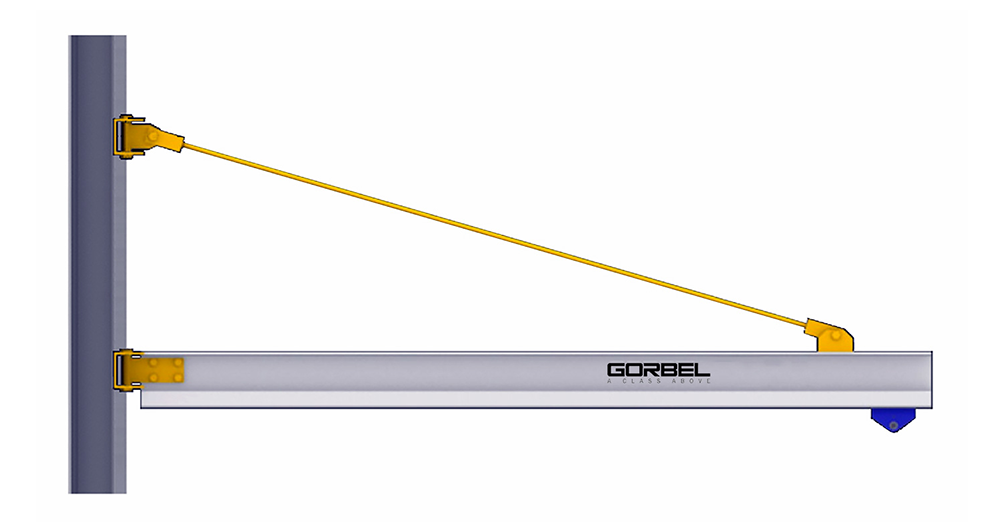

Gorbel Aluminum Wall Bracket Jib Crane, 2000 lb. Cap., 8 ft. Span, Model No. AL100-G1-2000-8

Manufacturer: Gorbel

Availability: In stock

SKU: AL100-G1-2000-8

Manufacturer part number: AL100-G1-2000-8

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Festoon Conductor Type *

Hoist Trolley

Crane Accessories

$2,743.93

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Wall Mounted Jib Crane Brochure

Manual

Gorbel Aluminum Jib Crane Manual

Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Products Specifications

Attribute name	Attribute value
Features	Capacity: 2,000 lbs. Span: 8 ft. Enclosed Track Series: 2,000 Fitting Size: G1 Bracket Centers: 4 ft. 0 in. Overturning Moment: 21.3264 K-Ft Axial Load: 3.281 Kips Thrust and Pull: 5.332 Kips Hoist Trolley Included: 1 ea. Hoist Allowance: 300 lbs. Tie Rod Diameter: 1 in. Tie Rod Pitch: 8 unc Tie Rod Length: 72 1/4 in. T1 Dimension: 2 5/8 in. Coverage: 200° Semi-Circular Rotation Shipping Weight (Overall Weight): 242 lbs. Utilizes Gorbel's patented lightweight aluminum track which rotates up to 40% easier than the traditional I-Beam jib. Reduced deadweight of boom assembly. Tie rod minimizes deflection for more precise positioning. Designed to support tool balancers, air balancers, vacuum lifters, and hoists. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
