| Features | - System Applications: Built for single-motion applications and dual-direction motion such as up/down, forward/backward, or in/out.

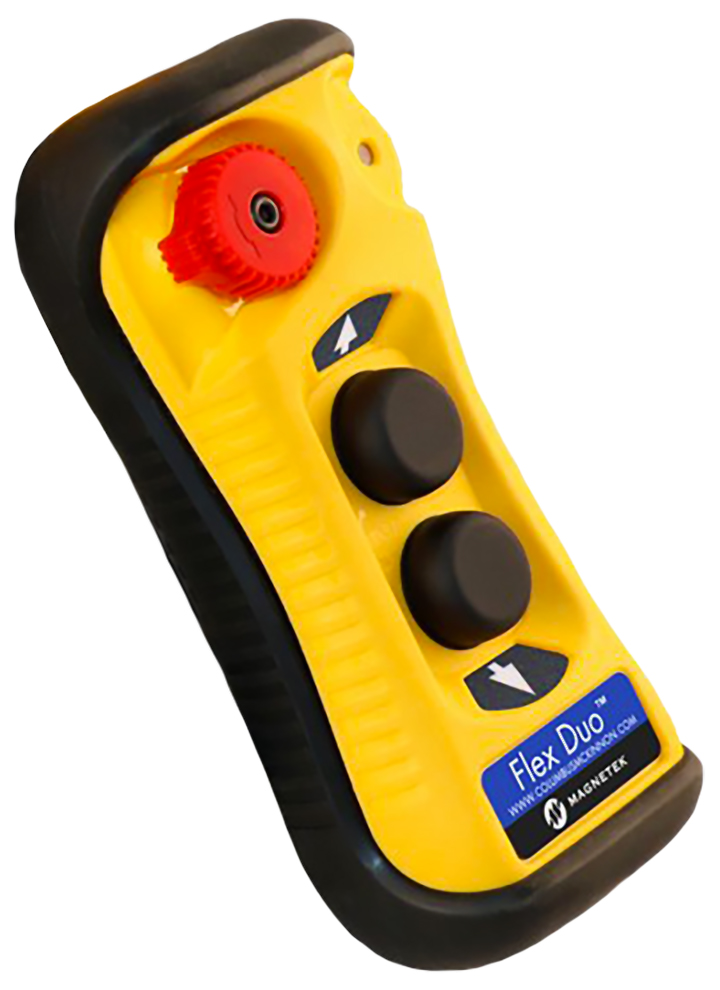

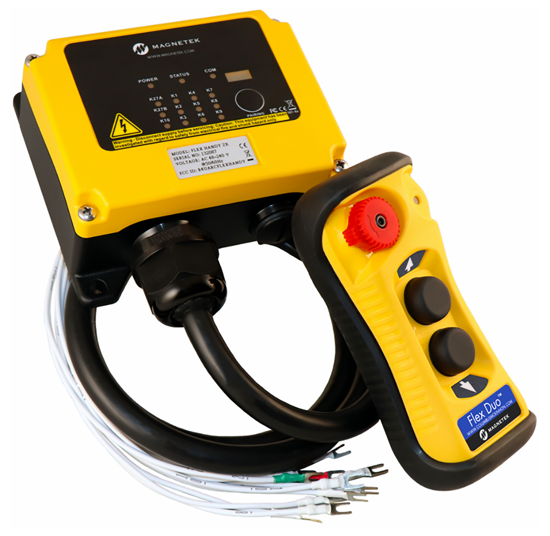

- System Includes: One transmitter with a pair of 2-speed pushbuttons & E-Stop button, Flex MRX receiver with pre-wired cable and horn kit, wrist strap, belt clip, pushbutton label sheet, keypad label sheet, and user manual on CD.
- System Model No.: FLEX-DUO-MRX-101-1T-2S-HK
- Receiver Supply Voltage: 24-48 VAC
- Receiver Dimension: 4.72 in (L) x 5.54 in (W) x 2.17 in (H) / 120 mm (L) x 90 mm (W) x 55 mm (H)
- Receiver Weights: 0.91 kg / 2.0 lbs (includes output cable)
- Provides equipment operators with better positioning for job visibility and safety and extended lives for machines and hydraulic components.
- Improved Productivity - Allows operators to freely move throughout the facility and keep production running efficiently.
- Ergonomic Design - Lightweight and contoured to fit in the palm of an operator’s hand to reduce fatigue and allows for continued accurate control of equipment.
- Increased Safety - Allows operators to manage motions away from hazardous and dangerous situations with better vantage points. E-stop button puts the radio system into a safe state in emergency situations.
- Cost-Effective Solution - Designed specifically for two-button use so there is no need to modify a larger system that is intended to fit a broad application base, lowering engineering and manufacturing costs.
- Easy Integration - Can be easily combined with CM hoists to provide accuracy, precision, and ergonomic control for lifting and positioning applications.
- MRX Receiver - Lightweight receiver can be mounted on the control panel or the body of a hoist without causing any system imbalance. Voltage Select feature automatically adapts to the control voltage from three available power supplies.
|
