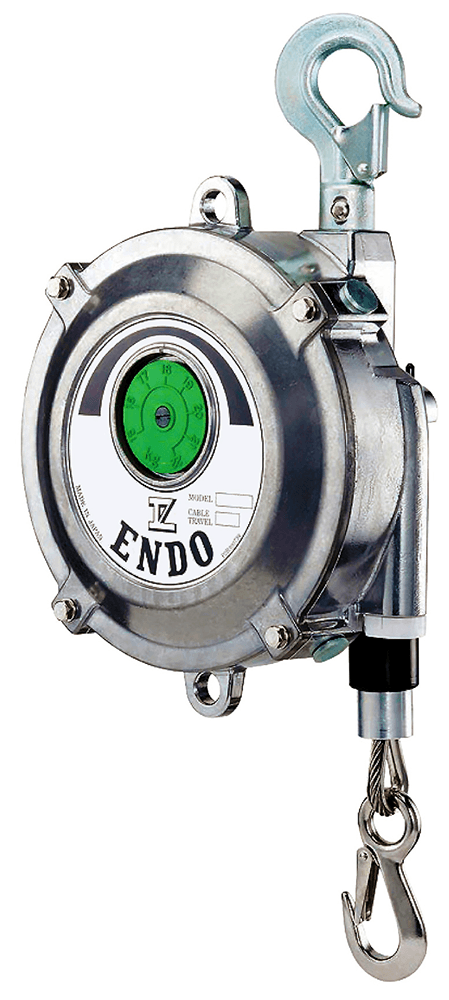

ENDO Food Grade Spring Balancer, Capacity 66.1 to 88.2 lbs, Stroke 5 ft, Model EWF-40X

Manufacturer: ENDO

Availability: In stock

SKU: XA-EWF-40X

Manufacturer part number: XA-EWF-40X

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

Call for Availability - 314-869-7200 *

Products not in stock are made to order. (Add 6-8 weeks to lead time)

$2,504.02

Qty:

Documents, Drawings, and Manuals

Catalog

ENDO Spring Balancers Catalog

Manual

ENDO Balancer EWF-9 to EWF-70 Manual

Dimensions

ENDO Spring Balancers Drawings

Products Specifications

Attribute name	Attribute value
Features	Manufacturer: ENDO Model Number: EWF-40X Capacity Range: 66.1 to 88.2 lbs. (30.0 to 40.0 kg) Cable Travel: 4.93 ft. (1.5 m) Cable Diameter: 0.187 in. (4.76 mm) Cable Material: White Nylon Unit Weight: 21.4 lbs. (9.7 kg) Length (hook to hook I.D.): 16.9 to 76.0 in. (429 to 1930 mm) Width: 8.7 in. (220 mm) Depth: 7.4 in. (187 mm) Color: Unpainted Aluminum Buffed and barrel-polished aluminum casing and cover. Synthetic food-grade grease (H1 grade) on the spring. Top Hook: Zinc plated upper hook and pins. Bottom Hook: Stainless steel lower hook, plug, rivet, bolts, and screws. Secondary Support: Includes top and bottom support eyelets to accommodate safety chains Drum Lock Mechanism: Available to lock the drum while replacing a tool. Fall-Arrest Device: Prevents tool from dropping in the unlikely event the spring breaks. Gauge: Front-facing spring tension gauge for easy operator indication and adjustment with respect to the suspended mass. Cartridge Spring Assembly: Provides safe and easy spring replacement. Plug Type Cable Set: Easy cable replacement without dismantling the balancer. Endo spring tool balancers offer true zero gravity, with no drifting or strain. Tapered drum, quality springs, and bearings provide smooth cable travel throughout the stroke. Worm Gear Spring Tension Adjustment: Insert socket wrench in the back of the unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity). How to Choose the Right Spring Balancer: Size the balancer to carry the total weight to be balanced - tool plus all accessories. Use the upper end of the capacity range of the balancer when possible. (For example, if the total tool weight is 10.5 pounds a balancer that has a capacity range of 5.5-11.0 pounds would be a better choice than a balancer with a range of 9.9-19.8 pounds. Then choose the cable travel that best suits your application.
Warranty	18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Japan
