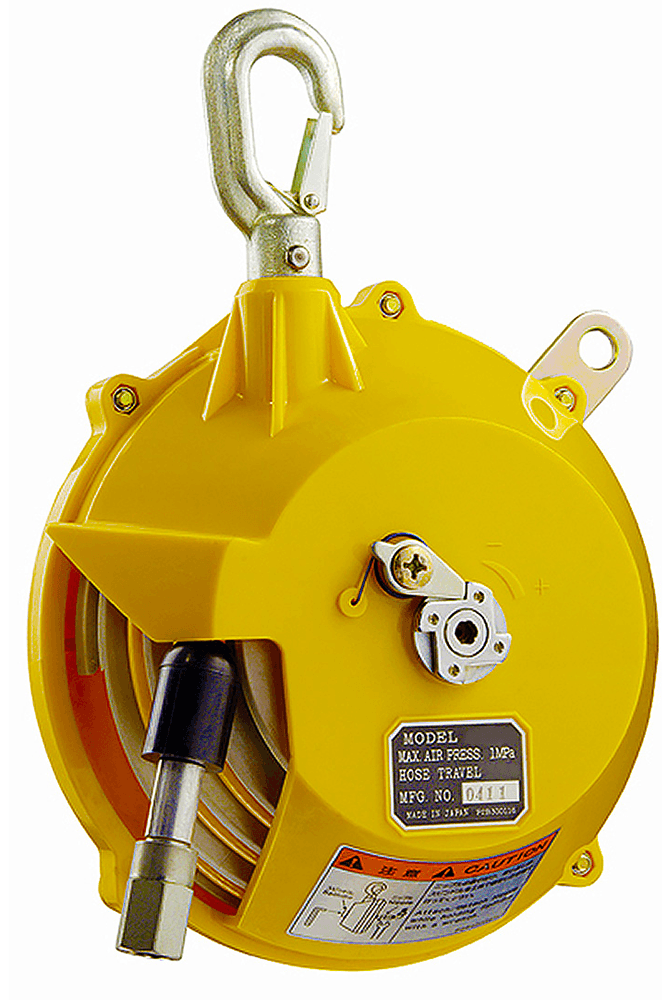

ENDO Air Tool Spring Balancer, 1/4 in. ID, Capacity 6.6 to 11.0 lbs, Model ATB-2

Manufacturer: ENDO

Availability: In stock

SKU: XA-ATB-2

Manufacturer part number: XA-ATB-2

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

Call for Availability - 314-869-7200 *

Products not in stock are made to order. (Add 6-8 weeks to lead time)

Balancer Accessories

Horizontal Tool Hanger - XA-A410-09-A001 [+$177.66]

$471.30

Qty:

Documents, Drawings, and Manuals

Catalog

ENDO Spring Balancers Catalog

Dimensions

ENDO Spring Balancers Drawings

Products Specifications

Attribute name	Attribute value
Features	Manufacturer: ENDO Model Number: ATB-2 Capacity Range: 6.6 to 11.0 lbs. (3.3 to 5.0 kg) Max. Pressure Rating: 145 psi (1.0 MPa / 10 bar) Hose Travel: 4.27 ft. (1.3 m) Hose Diameter: 1/4 in. ID (6.35 mm) Air Inlet: 1/4 in. NPT (6.35 mm) Hose Material: Braided Polyurethane Unit Weight: 3.8 lbs. (1.73 kg) Length (hook to fitting): 10.0 to 61.3 in. (254 to 1557 mm) Width: 7.5 in. (190 mm) Depth: 3.3 in. (83.8 mm) Color: Safety Yellow High impact cast ABS plastic housing. Top Hook: Steel swivel top hook with safety latch. Secondary Support: Includes a top support eyelet to accommodate a safety chain. Endo spring tool balancers offer true zero gravity, with no drifting or strain. Tapered drum, quality springs, and bearings provide smooth cable travel throughout the stroke. CE mark available (European Conformity) Ratchet Spring Tension Adjustment: Insert Allen wrench in the back of the unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity). How to Choose the Right Spring Balancer: Size the balancer to carry the total weight to be balanced - tool plus all accessories. Use the upper end of the capacity range of the balancer when possible. (For example, if the total tool weight is 10.5 pounds a balancer that has a capacity range of 5.5-11.0 pounds would be a better choice than a balancer with a range of 9.9-19.8 pounds. Then choose the cable travel that best suits your application. Note: This model does not have a fall arrest system to prevent the tool/load from dropping in the unlikely event that the spring breaks.
Warranty	18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Japan
