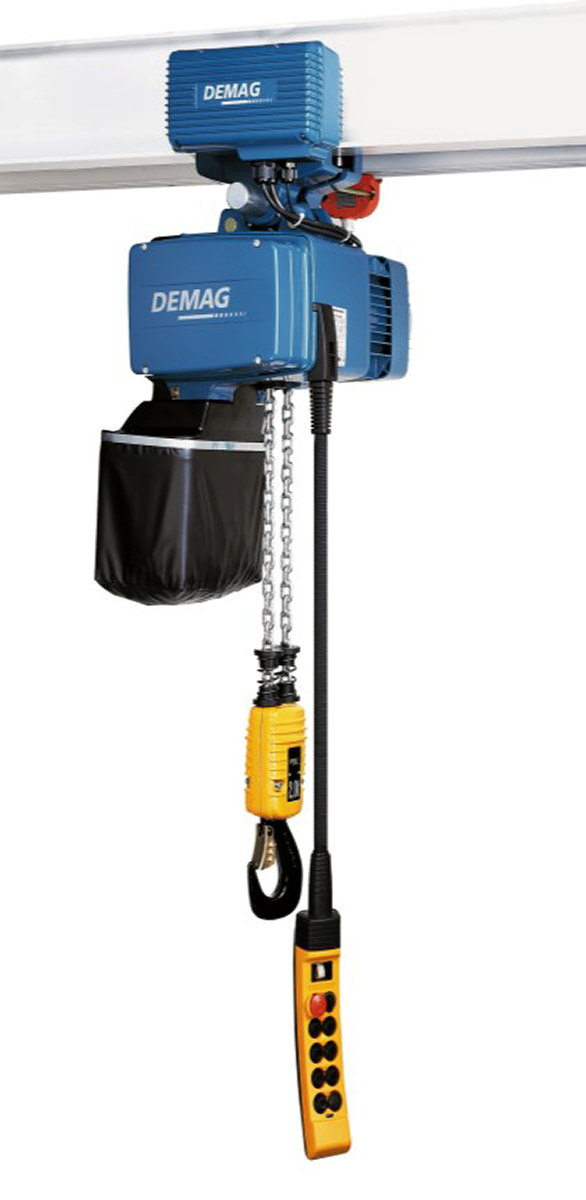

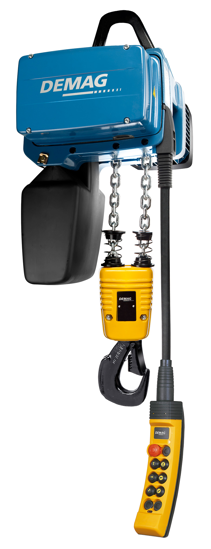

Demag DC Pro Electric Chain Hoist, 4,400 lb. Capacity, Part No DC-PRO-2000

Manufacturer: Demag

Availability: In stock

SKU: DC-PRO-CUST-2000

Manufacturer part number: DC-PRO-CUST-2000

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Voltage *

Lift (230-3-60 three phase) *

Lift (460-3-60 three phase) *

Lifting Speed (230-3-60 three phase) *

Lifting Speed (460-3-60 three phase) *

Hoist Suspension *

Chain Container

Chain Container Included

$5,670.00

Qty:

Documents, Drawings, and Manuals

Brochure

Demag DC-DCM/PRO Brochure

Manual

Demag DC-DCM/PRO Manual

Products Specifications

Attribute name	Attribute value
Features	Capacity: 4,400 lbs. Weight: 144 lbs. Headroom: 22.2 in. Lift Speed: 4:1 Standard 24V contactor control IP55 enclosure Upper and lower limit switches Two lifting speeds as standard with smooth starting and braking. High-quality powder-coated surfaces for improved protection and longer service life. Single-fall design for simple load handling of units up to 2,200 lbs. Brake arranged in front of the slipping clutch for added safety. Compact chain drive can be quickly replaced without having to remove any motor or gear parts. Ergonomic pushbutton pendant station with DSC and DSE 10-C for fatigue-free operation. Height adjustable control cable allows the pendant to always be in the right working position for you. 1900 full load service hours give the hoist a 20% longer service life compared to conventional 2m FEM rated hoists. Pivoting suspension bracket and adjustable flange width allow for easy install. Read operating time counter or call up operating status information with external diagnostic readout. Reliable operation temperatures range from -4 °F to +113 °F (-20 °C to +45 °C) without any reduction in the duty factor (maximum of up to 140 °F / 60 °C). Service Cover Allows Direct Access to: Key plug-and-socket electrical connections - Control pendant height adjustment - Chain lubrication port - Chain Guide
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Germany
