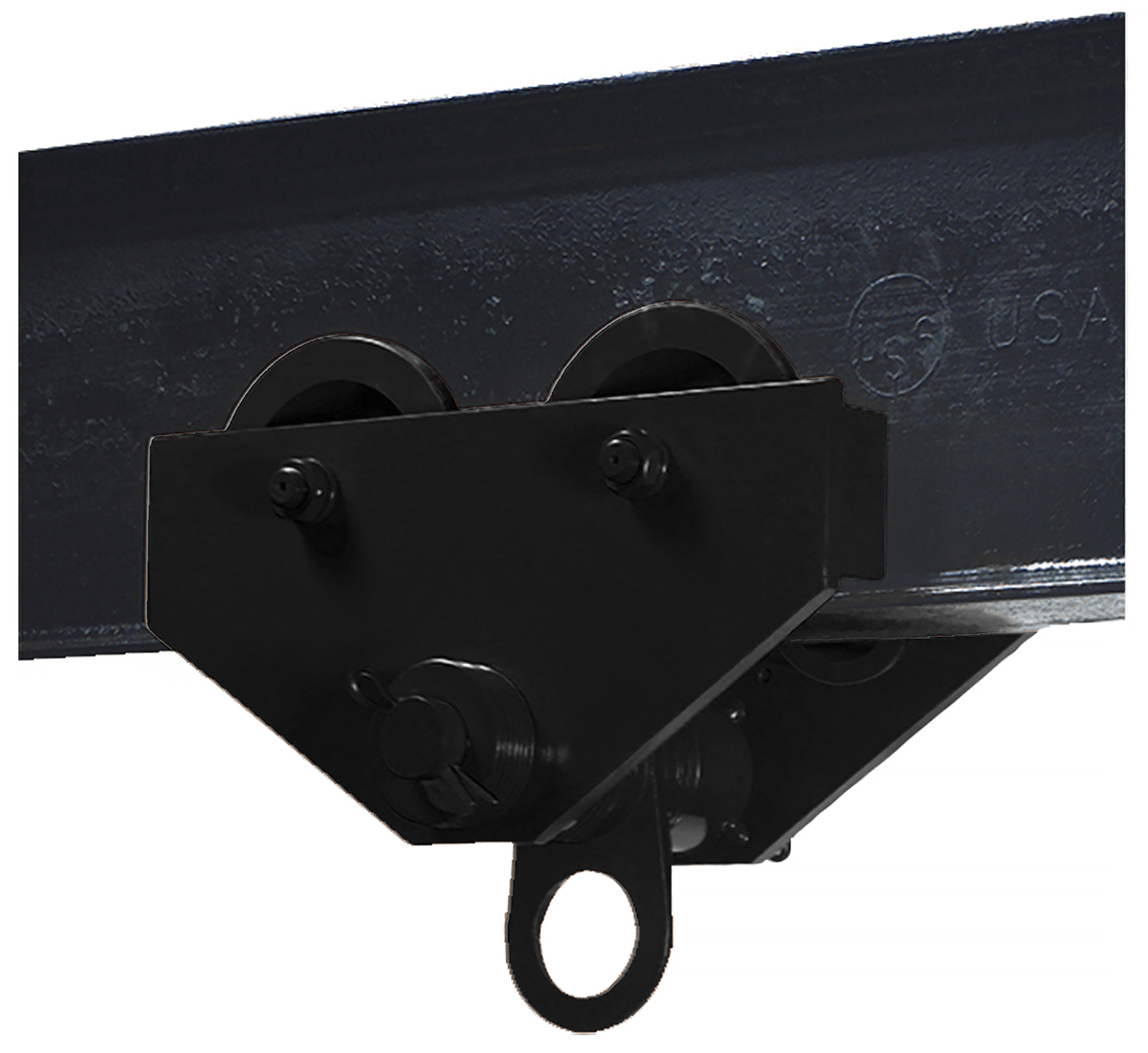

8 Ton CM Series 84A/PT Plain Push Trolley, Part No 1641-0800

Availability: In stock

SKU: 1641-0800

Manufacturer part number: 1641-0800

Lead Time (subject to change, call to verify): typically ships in 25-30 business days

I-Beam Flange Width

$3,975.66

Qty:

Documents, Drawings, and Manuals

Specs

CM 84A/PT Trolley Specs

Manual

CM 84A/PT Trolley Manual

Products Specifications

Attribute name	Attribute value
Features	Capacity: 8 Ton (Metric Rated) I-Beam Width: 4.62 to 8 in. Beam Height: 10 to 24 in. Minimum Radius Curve: 60 in. Approx. Shipping Weight: 300 lbs. Negotiates radius curves as tight as 20 to 120 in. Manufactured for heavy duty, industrial grade applications Lifetime lubricated, precision ball bearings on trolleys through 3 ton capacity Trolleys with capacities 4 tons and greater are equipped with eight sealed, Timken tapered roller bearings and grease fittings. Trolley wheels are fully machined from alloy cast iron and hardened for high strength and long life Alloy steel axles and equalizer pins are heat treated for maximum strength and wear life Product image above may show optional features and accessories not included on standard models. Consult with a sales rep or with the product catalog for more information.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
