3 Ton R&M QX Overhead Crane Kit, 45 Foot Span

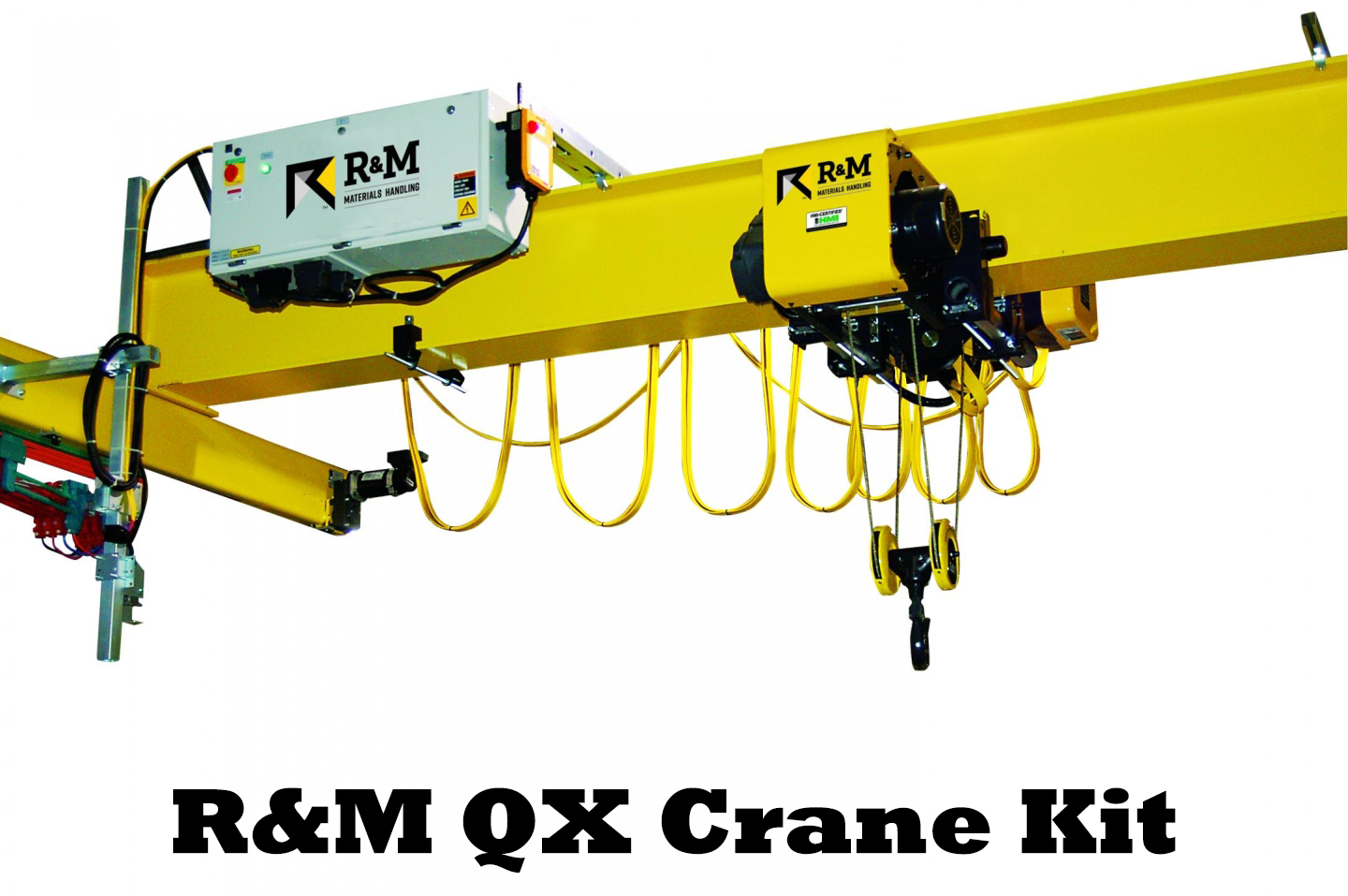

The QX Overhead Crane Kit is a complete crane system from R&M Materials Handling. It features their top-rated Spacemaster SX wire rope hoist and is designed to work as a complete system, with all components optimized together for your specific needs.

Manufacturer: R&M Materials Handling

Availability: In stock

SKU: RM-QX-3T-45F

Manufacturer part number: RM-QX-3T-45F

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

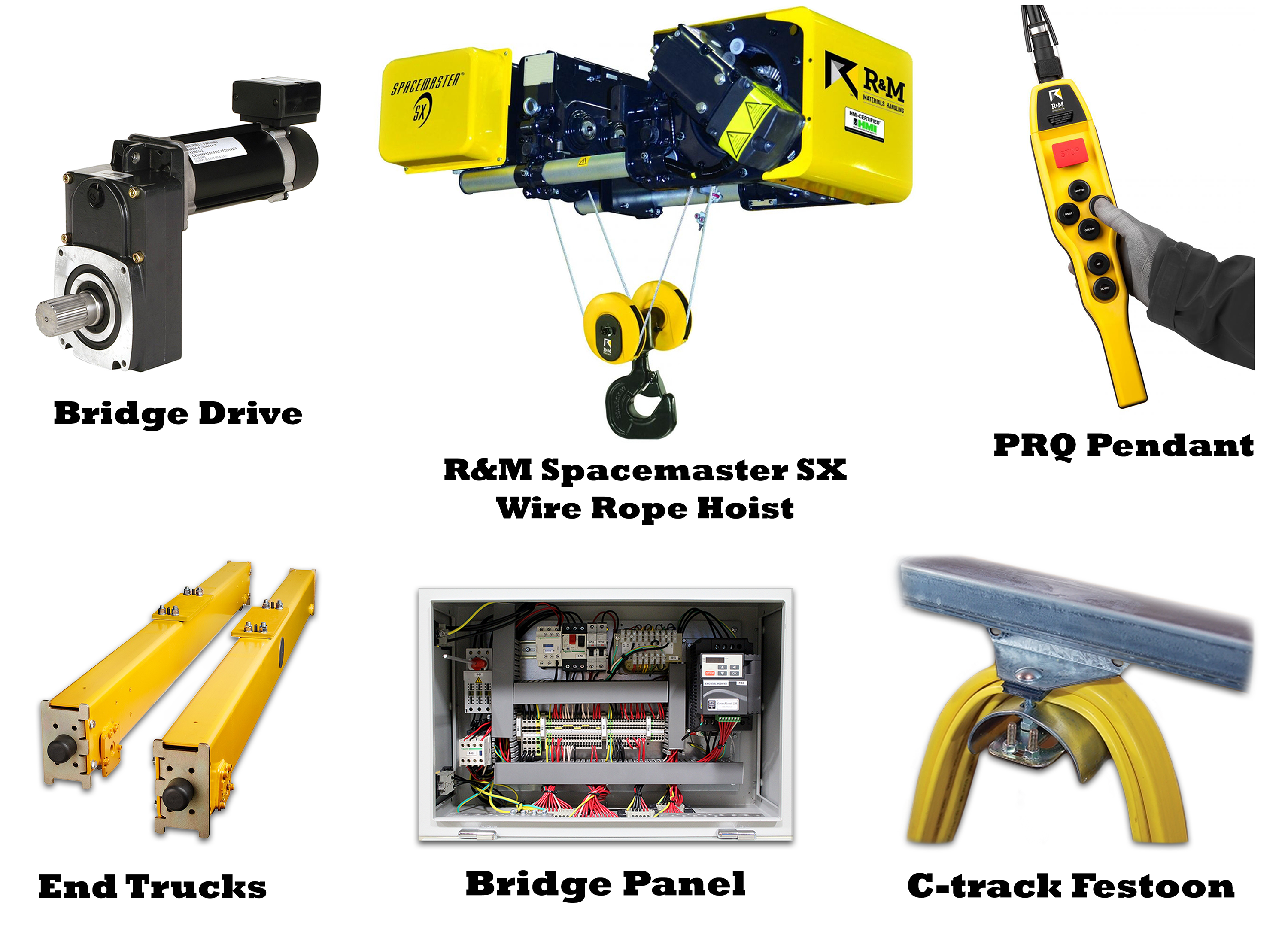

Includes *

Spacemaster SX Wire Rope Hoist with Motorized Trolley
Motorized End Trucks

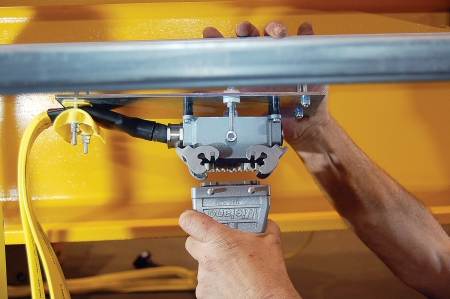

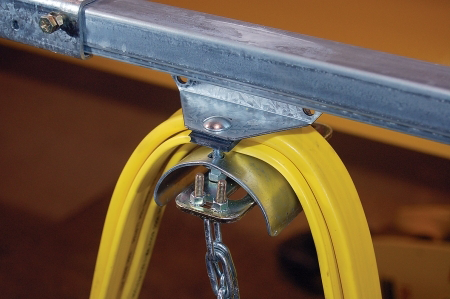

C-track Festoon Electrification System with Flat Cables
Bridge Panel
PRQ Push Button Station

Not Included *

Structural Steel - Main Girder, Crane Service Platform, Runway Rails etc.
Crane Runway Power Supply (unless otherwise stated in this offer)
Spare Part Package

$21,987.00

Qty:

Documents, Drawings, and Manuals

Drawing

Overhead Crane Kit E-Drawing

Products Specifications

Attribute name	Attribute value
Features	Specifications Capacity: 3 Ton Span: 45 ft Available Lift: 19 ft 8.25 in Hoisting Speed: 20.0/3.2 ft/min 2-speed Traversing Speed: 65 ft/min Stepless Traveling Speed: 100 ft/min Stepless Weight of Trolley: 490 lbs Runway Rail Size: ASCE30 Crane Classification: CMAA Class C Hoist Group: ASME H4 Crane Drive Group: CMAA C Main / Control Voltage: 460 / 115 V; 60 Hz Supply Power: 6.77 Hp Includes Spacemaster SX Wire Rope Hoist with Motorized Trolley Motorized End Trucks C-track Festoon Electrification System with Flat Cables Bridge Panel PRQ Push Button Station Not included Structural Steel - Main Girder, Crane Service Platform, Runway Rails etc. Crane Runway Power Supply (unless otherwise stated in this offer) Spare Part Package Hoist is 2 speed contactor controlled. VFD Bridge and trolley. HoistMonitor or HoistWatch load monitoring system. Standard inverter controls for trolley and bridge for reduced load swing. NEMA 4 type rated control enclosures. Plug-in connections for easy assembly and maintenance.
