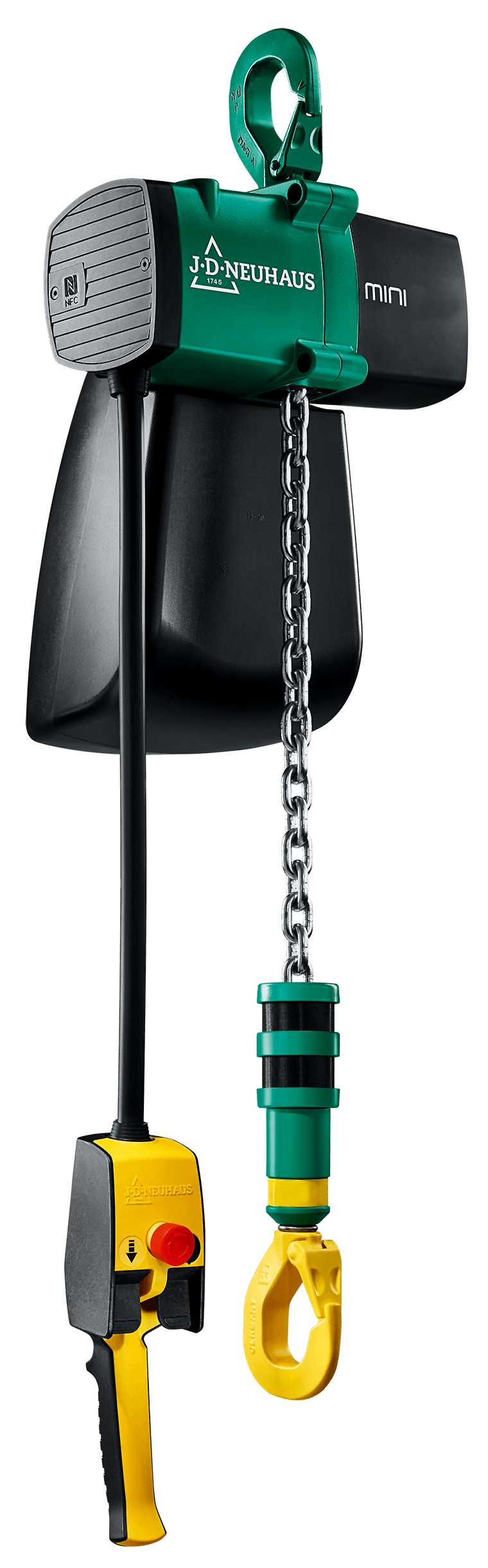

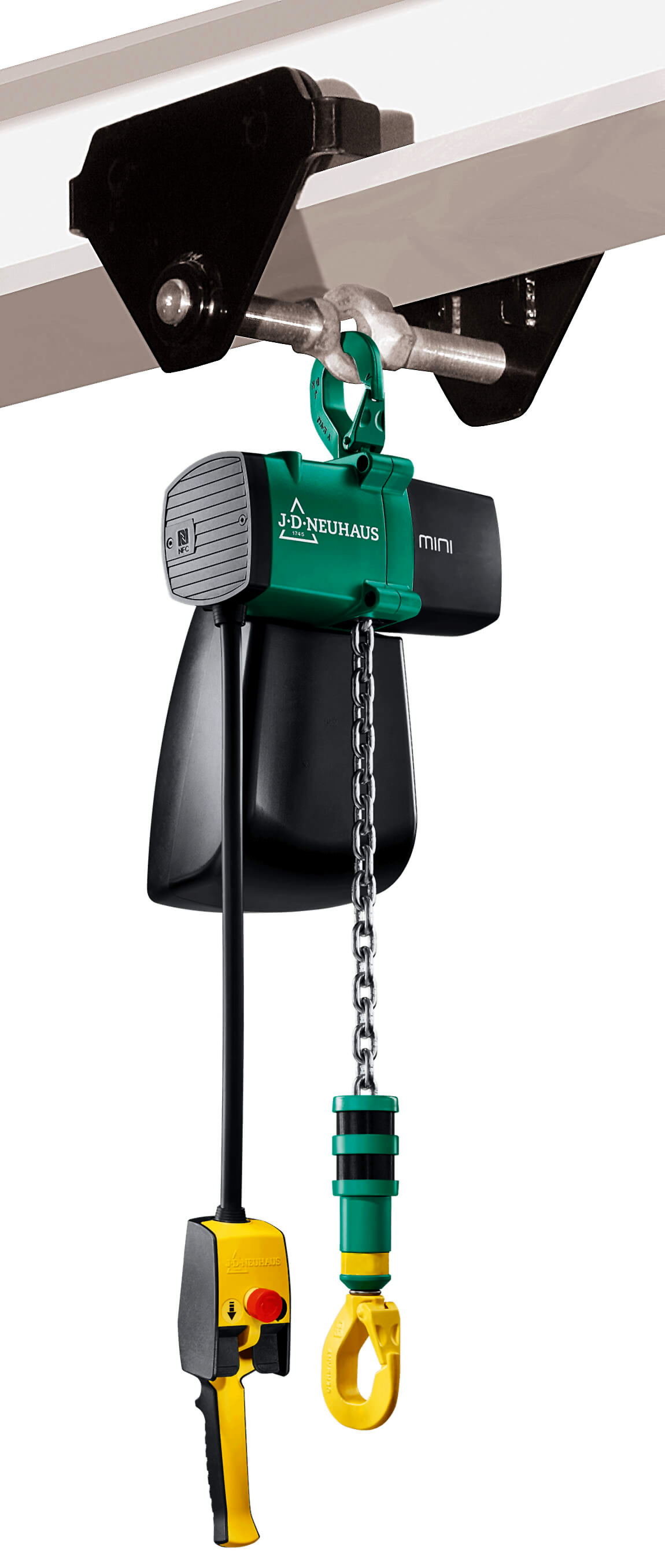

275 lb. Capacity JD Neuhaus Mini Air Chain Hoist, Part No MINI125

Manufacturer: JD Neuhaus

Availability: In stock

SKU: MINI125-CUST

Manufacturer part number: MINI125-CUST

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Lift *

Suspension *

Hoist Accessories

Pendant Throttle Control *

$3,791.20

Qty:

Documents, Drawings, and Manuals

Brochure

J.D. Neuhaus Mini Air Hoist Brochure

Products Specifications

Attribute name	Attribute value
Features	Capacity: 275 lbs. (125 kg) Headroom: 21.9 in. Weight: 22 lbs. Standard operating pressure: 87 psi Lifting speed: 32.8 fpm (at full load) Air consumption: 33.5 cfm (at full load lifting/lowering) Air connection: G 1/2 in. Hose dimension (Ø inside): 1/2 in. Patented motor design for increased efficiency, performance and durability. Composite chain container included. Explosion Protection: EX II GD IIA T4 (Class 1 Div 2 Zone 2) True variable speed pilot control system design. Galvanized zinc load chain standard for corrosion resistance. JDN patented cartridge design grease charged air motor. Integrated pneumatic liftinging and lowering limit switches. 90 degree swivel main air fitting with air lock quick disconnects. Standard Top Hook: Twist-Lock Safety Hook. Standard Bottom Hook: Common Latch Hook. Integrated NFC Data Chip. JDN Ergo 2 lever control station, with lever guard. Hoist manufacturer's warranty does not include on-site repairs. Customer will need to send the hoist, with freight pre-paid to EP's repair facility.
