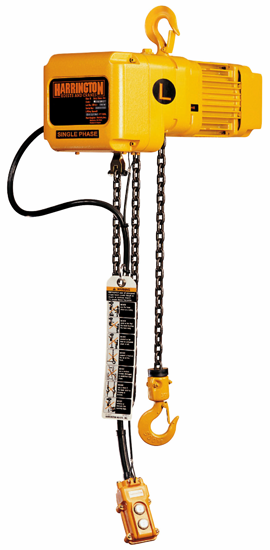

2 Ton Harrington SNER Electric Chain Hoist, Part No SNER020L

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: SNER020L-CUST

Manufacturer part number: SNER020L-CUST

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

Lift *

Voltage *

Hoist Suspension *

Chain Container *

Hoist Power Cord Length *

Lifting Speed

7 fpm (single speed)

Push Button Control Drop Length

Standard - 4 ft. less than the length of the lift

$4,383.23

Qty:

Documents, Drawings, and Manuals

Spec Sheet

Harrington SNER Hoist Specs

Manual

Harrington SNER Hoist Manual

Products Specifications

Attribute name	Attribute value
Features	Capacity: 2 Ton Headroom: 22.6 in. Approximate Weight: 174 lbs. Standard Voltage: 115/230-1-60 Control Voltage: 110VAC Duty Cycle: Single Speed - 60 Min. / Dual Speed - 30/10 Min. with VFD Classification: ASME H4, ISO M5 or M4, FEM 2M or 1Am Hoist/Trolley Rating: IP55 Pendant Rating: IP65 Pull-Rotor Motor Brake is extremely durable and reliable with an advanced design that has no brake coil to fail. Long Life Friction Clutch protects hoist from damage and prevents overwinding. Heat Treated Helical and Spur Gears are precision machined for long life and bathed in oil lubrication for a quiet, smooth, cool operation. Completely Sealed Body is suitable for indoor, outdoor and harsh environments. Die Cast Aluminum Body is lightweight and offers low headroom. Grade 80 nickel-plated load chain is heat treated for wear resistance and extended life. Forged Carbon Steel Hooks will open gradually and not fracture under excessive loads. Bottom hook swivels 360 degrees. Motorized Trolley Drop Stops and Rubber Bumpers add security for the operator and protection for the equipment and load. Standard Upper Limit Switch prevents overwinding/overlifting. Operating Conditions: Recommended for -4° to +104° F and humidity of 85% or less.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Japan
