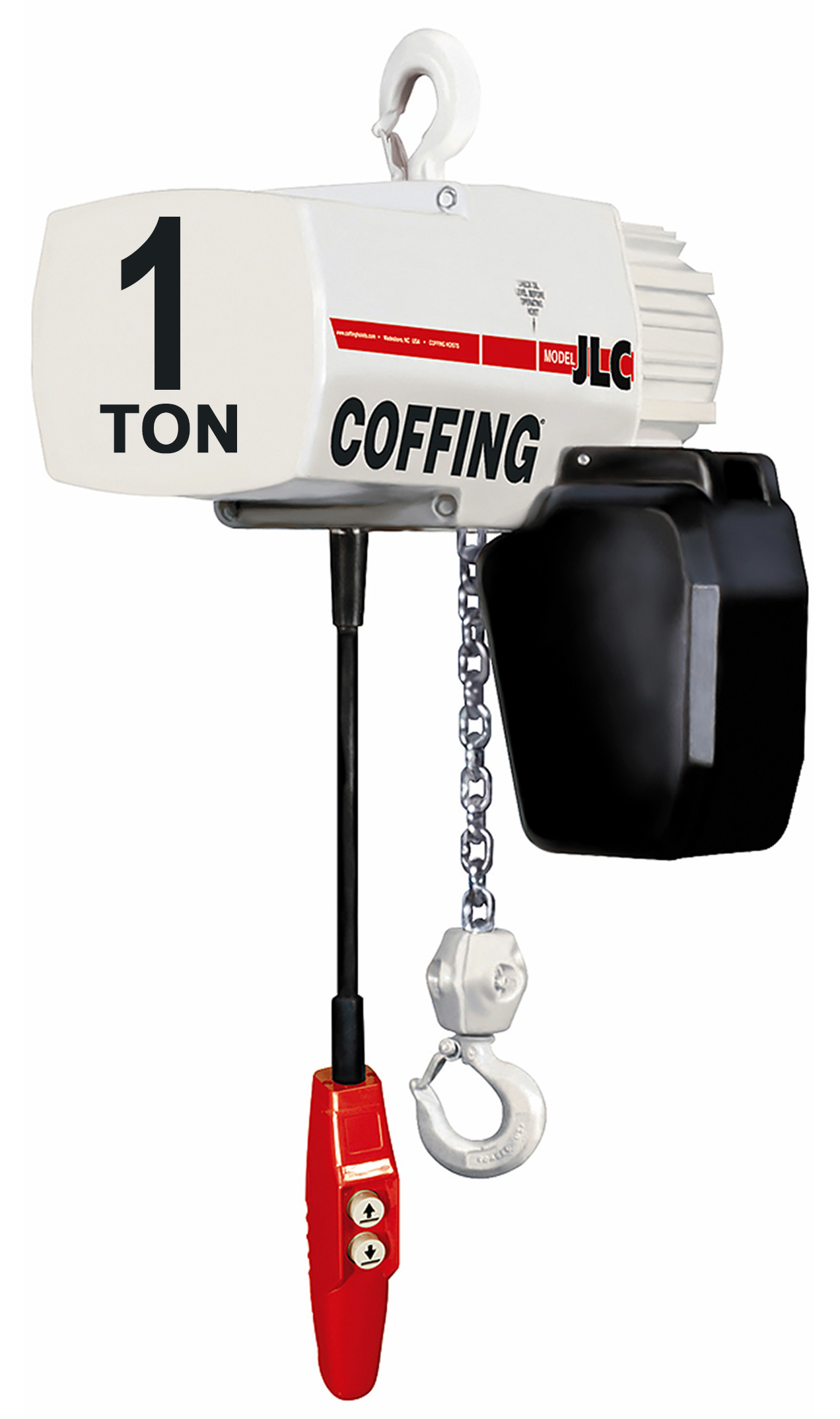

1 Ton Coffing JLC Electric Chain Hoist, 10' Lift, 16 FPM, 3 Phase, Part No 08243W

Manufacturer: Coffing Hoists

Availability: In stock

SKU: 08243W

Manufacturer part number: 08243W

Lead Time (subject to change, call to verify): typically ships in 13-16 business days

Lift *

10 ft. / 3.048 m

Lifting Speed *

16 fpm (single speed)

Voltage *

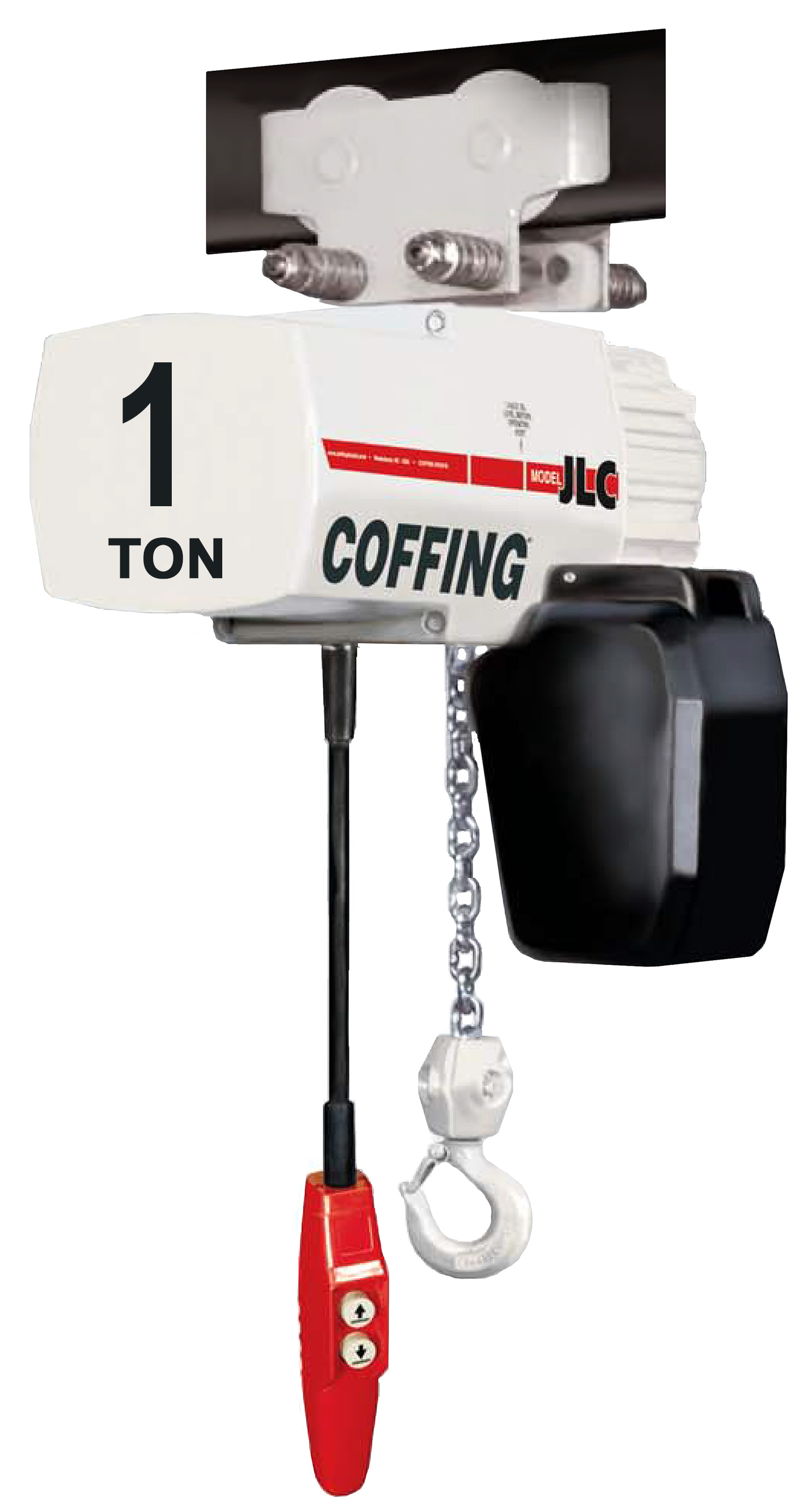

Hoist Suspension *

Hoist Power Cord Length *

Hoist Accessories

Weather Resistant Nylon Cover (hoist only) [+$259.00]

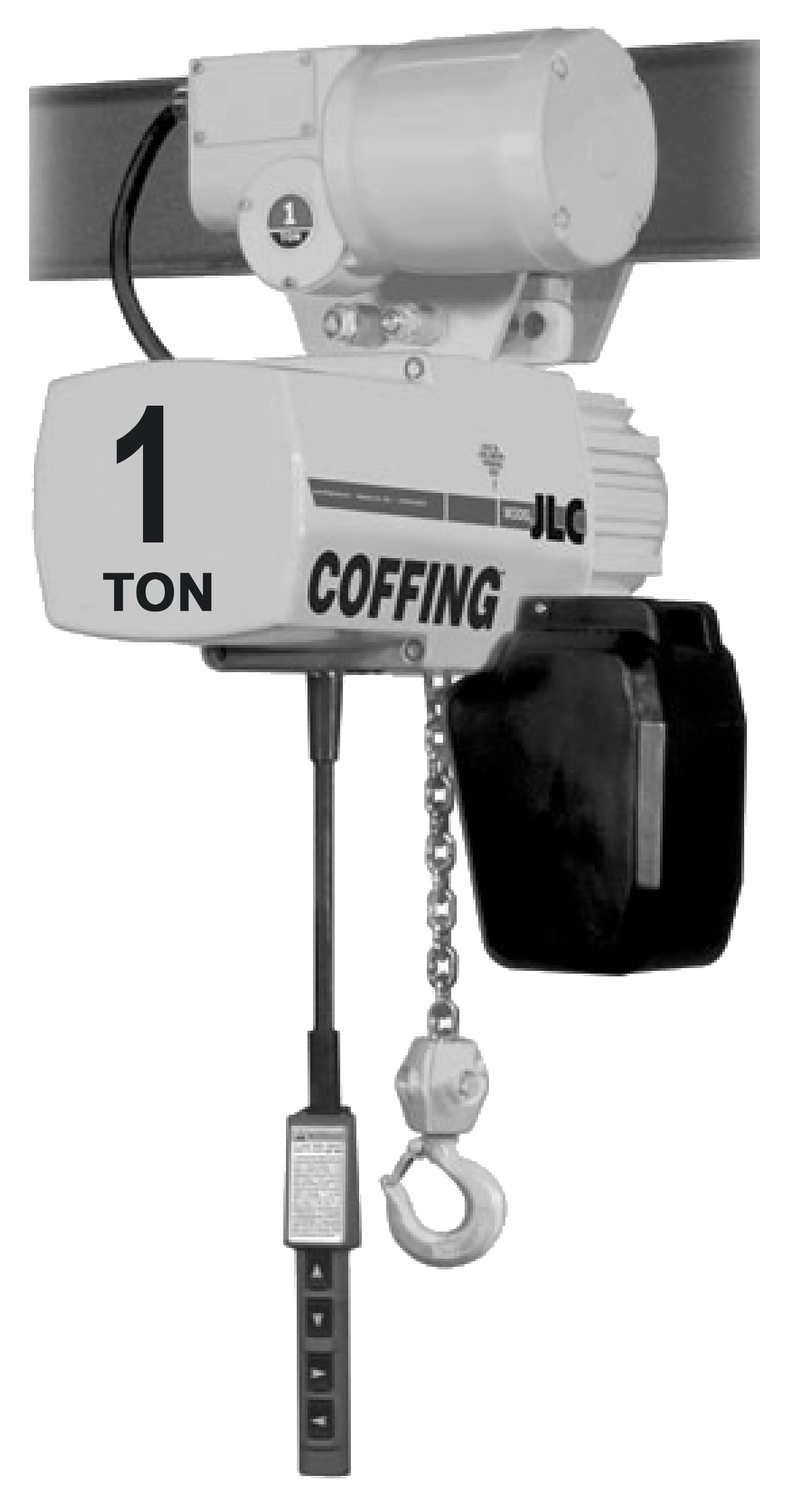

Motorized Trolley Brake [+$807.00]

Chain Container

Polyethylene Chain Container Included

Push Button Control Drop Length

Standard - 4 ft. less than the length of the lift

$3,467.00

Qty:

Documents, Drawings, and Manuals

Brochure

Coffing JLC/JLCV/JLCMT Hoist Brochure

Manual

Coffing JLC/JLCV/JLCMT Hoist Manual

Products Specifications

Attribute name	Attribute value
Features	Capacity: 1 Ton (1000 kg) Headroom: 18-1/8 in. without trolley 17-5/16 in. with trolley Mfg Model No.: JLC2016 - 16 fpm No. of Load Chains: 1 Hoist Motor Horsepower: 1 hp for single phase, 1 hp for three phase - JLC2016 Ship Weight: 94 lbs. without trolley 118 lbs. with plain trolley 204 lbs. with motorized trolley H4 duty rating is ideal for heavy-duty industrial applications. The hoist enclosure is a compact aluminum housing for portability and ease of installation. The finned aluminum motor housing provides cooling and is Class F insulated for longer life. Hoist electrical panel, provides easy access to controls and motor leads with numbered connection wires for changing voltage on dual voltage motors or performing routine hoist maintenance. Limit switches are adjustable to regulate upper and lower load travel. Brass nuts are standard for improved repeatability and chain positioning. Mechanical overload device is factory-calibrated to protect the hoist, operator and supporting structures from damaging overloads, chain jamming, and reverse phasing. Hoist motor brake is a heavy duty multiple disc type, direct acting design for positive load spotting and holding. 5-pocket load sheave increases chain and sheave engagement 25% over hoists with conventional four-pocket sheaves. Provides smoother lifting and reduces chain wear over four-pocket sheaves. Push button station is ergonomically designed to fit the operator's hand for left or right single-handed thumb operation. NEMA 3R rated (weather resistant) with 24 volt control is standard. Hoists transmission has precision machined alloy steel gears that run in an oil bath for longer, quieter operation. CSA Approved Option (NOTE: must call or email TSOC sales to request CSA compliant hoist before you place your order).
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
